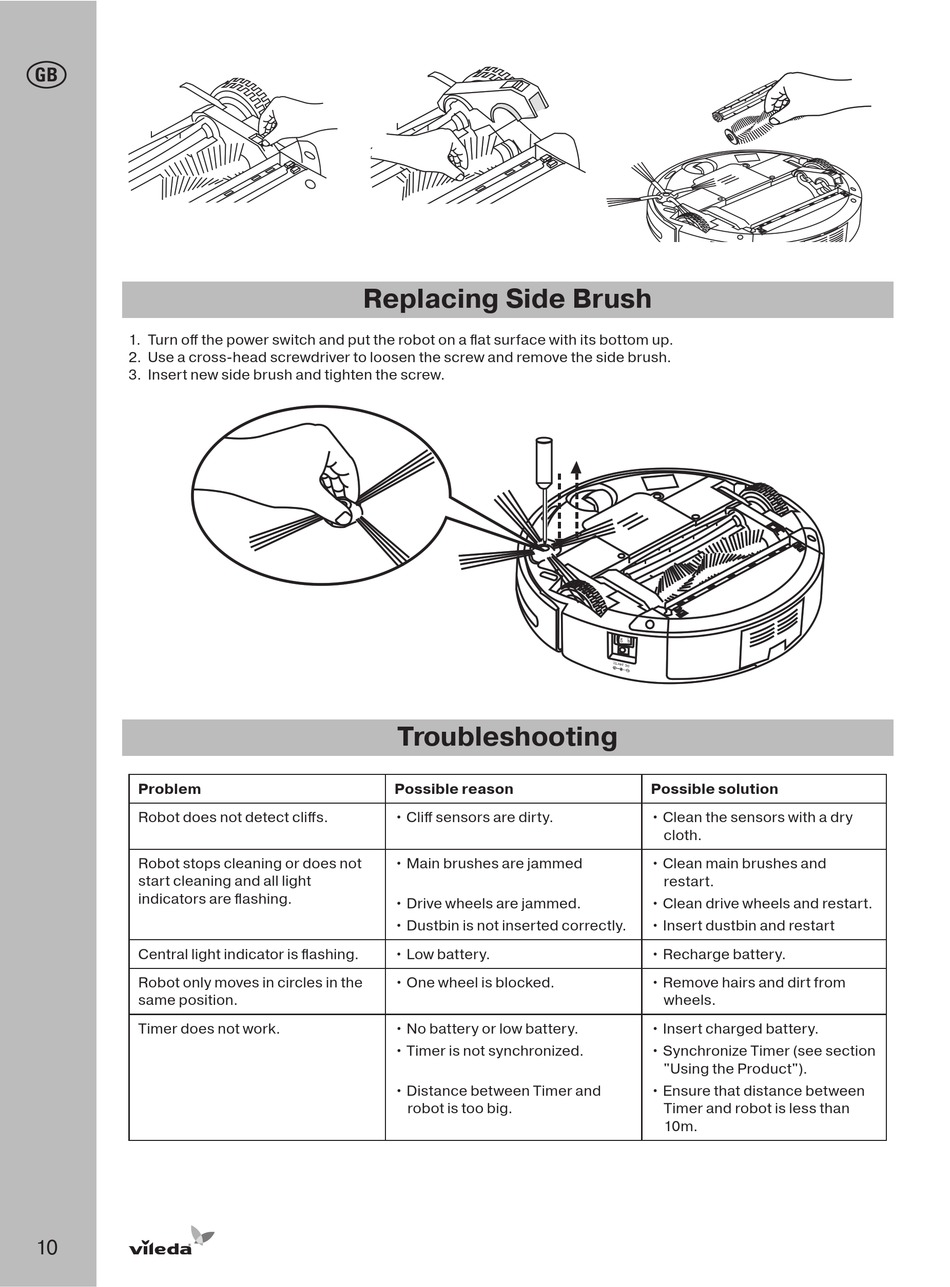

Replacing Side Brush; Troubleshooting - Vileda Relax Plus Benutzerhandbuch

G
1. Turn off the power switch and put the robot on a flat surface with its bottom up.
2. Use a cross-head screwdriver to loosen the screw and remove the side brush.
3. Insert new side brush and tighten the screw.
Problem
Robot does not detect cliffs.
Robot stops cleaning or does not
start cleaning and all light
indicators are flashing.
Central light indicator is flashing.
Robot only moves in circles in the
same position.
Timer does not work.
10

Replacing Side Brush

Troubleshooting

Possible reason
• Cliff sensors are dirty.
• Main brushes are jammed
• Drive wheels are jammed.
• Dustbin is not inserted correctly.
• Low battery.
• One wheel is blocked.
• No battery or low battery.
• Timer is not synchronized.
• Distance between Timer and
robot is too big.
Possible solution
• Clean the sensors with a dry
cloth.
• Clean main brushes and
restart.
• Clean drive wheels and restart.
• Insert dustbin and restart
• Recharge battery.
• Remove hairs and dirt from
wheels.
• Insert charged battery.
• Synchronize Timer (see section
"Using the Product").
• Ensure that distance between
Timer and robot is less than
10m.
