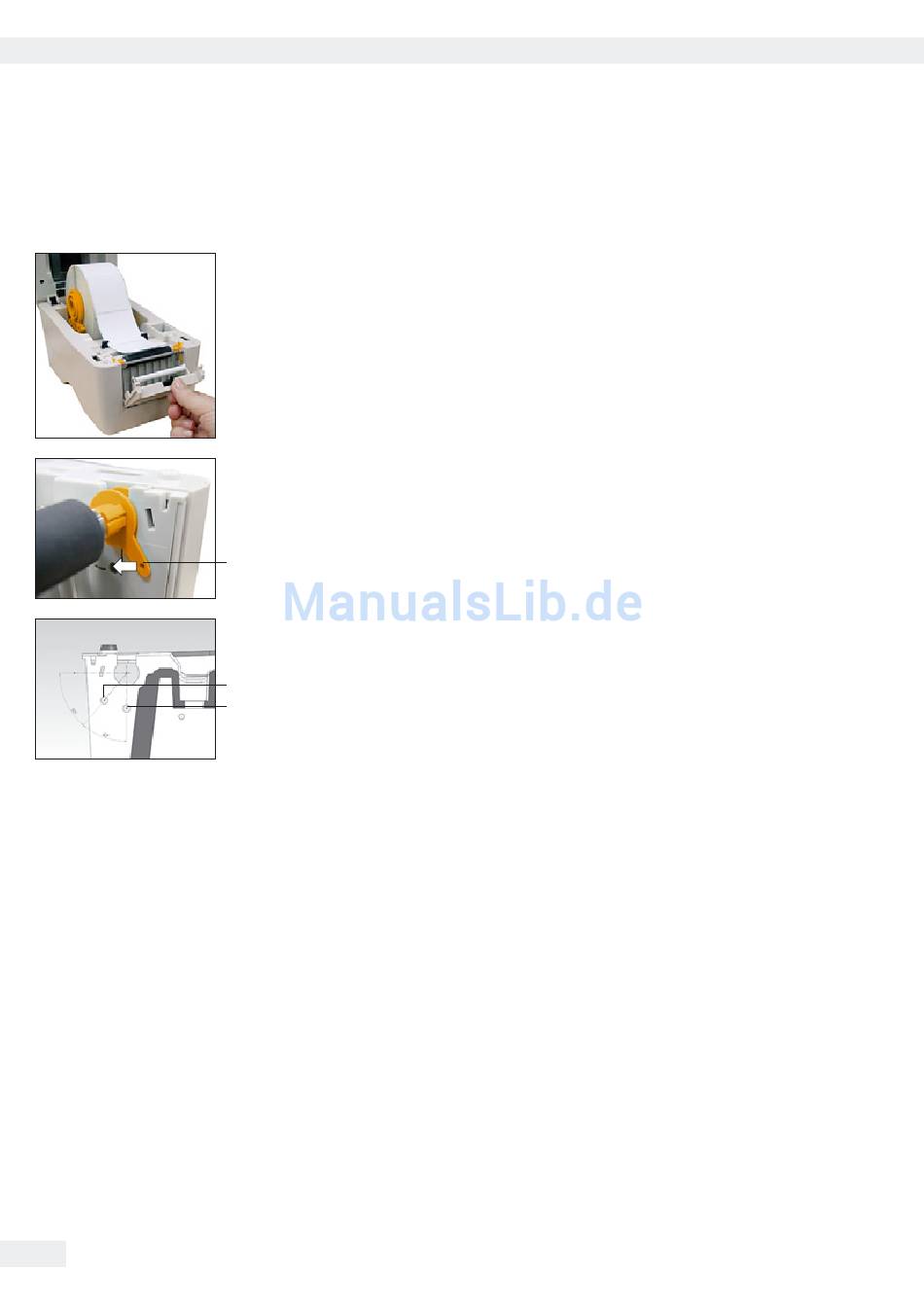

3.2.3 Loading the Thick Media (Thickness is 0.19 mm)

1. Open the printer top cover by pulling the tabs located on each side towards the
front of the printer, and then lift the top cover to the maximum open angle.
2. Remove the lower front cover.
3. Disengage the platen holder tabs from the lower inner cover by pulling out the
right side and left side tabs. Move both side tabs into the 90 degree position for
a thick label.
Tab
1 = The tab here is for a regular label.
2 = The tab here is for a thick label (thickness is 0.19 mm).
1
2
4. Reassemble in the reverse procedure.
5. Refer to Section 3.2.1 to load the media.
