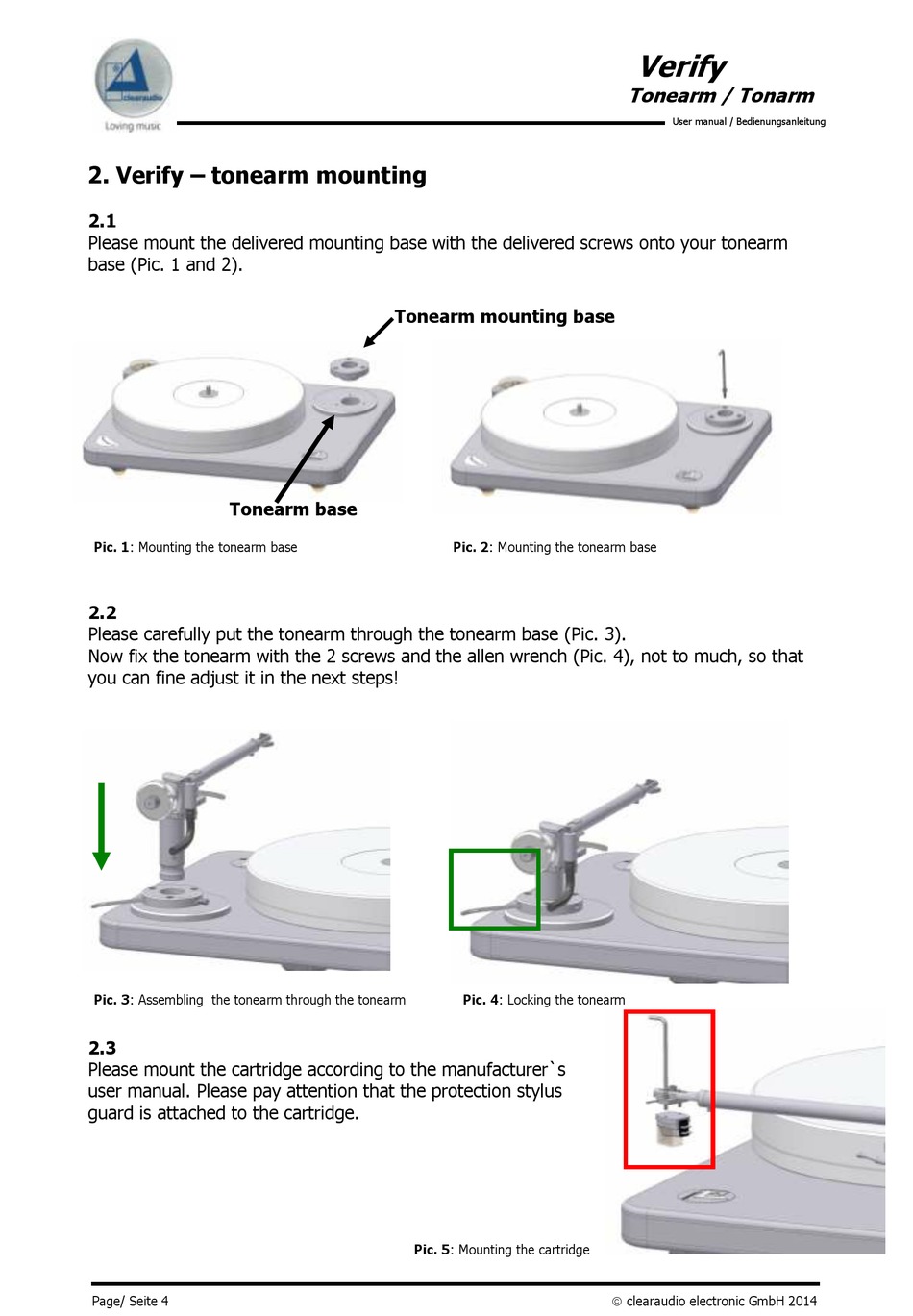

2. Verify – tonearm mounting
2.1
Please mount the delivered mounting base with the delivered screws onto your tonearm
base (Pic. 1 and 2).
Tonearm base
Pic. 1: Mounting the tonearm base
2.2
Please carefully put the tonearm through the tonearm base (Pic. 3).
Now fix the tonearm with the 2 screws and the allen wrench (Pic. 4), not to much, so that
you can fine adjust it in the next steps!
Pic. 3: Assembling the tonearm through the tonearm
base
2.3
Please mount the cartridge according to the manufacturer`s
user manual. Please pay attention that the protection stylus
guard is attached to the cartridge.
Page/ Seite 4
Tonearm mounting base
Pic. 2: Mounting the tonearm base
Pic. 4: Locking the tonearm
Pic. 5: Mounting the cartridge
