Technical Data
Typ CD 10
Power 80 Watts
Power Supply 230V / 50Hz, cable 2m
Torque 10Nm
Lifting Capacity 12kg (40mm Tube)
14 U/Min.
R.P.M.
INSTALLATION
Rough- in or install conduit pipe to the connector box for the
electrical connecting line according to local building and
electrical codes.
Roll down the shutter completely (1). Remove material
2
from the shaft (2); then take off the manual pull (3).
3
Dismantle the shaft.
Slide tube adapter (3) onto the motor (1) if not already
4
pre-mounted), and fasten with hardware (2).
Insert square shaft bracket or square shaft pin (4) into
recess at motor head and fasten securely with
hardware (5).
Slide the motor (1) completely into the shaft. Do not
5
force or pound the motor in. Don't damage the
tubular
motor by drilling!
6
Depending upon your particular requirements for either
left-handed (1) or right-handed (2) operation:
7
Attach mounting bracket (6) to the wall (10) and fasten
with hardware (5).
8
Insert the square shaft bracket on the motor (1) into the
mounting bracket (6) and secure with cotter pin (7).
Make sure the set screws for the limit adjustments
(beneath the mounting bracket) are accessible.
Don't return the shutter material to the shaft yet!!

ELECTRICAL CONNECTION

9
Connection options.
Timer (14.7)
Switch (14.8) and (14.11)
Central Module (14.6). One central module for each
connected motor.
The illustration also shows the wall bracket on the drive
side (6), the motor drive (1); the steel shaft (4); the end cap
(5); and the opposite wall bearing (10).
For a left-side motor installation, follow the wiring diagram
exactly as shown in the control accessory package.
For the correct direction of rotation in a right-side motor
installation, electrical wires (brown & black) must be reversed
between the control accessory and the motor. (See
instructions packed with the accessory you have chosen).
Have the electrical hook-up done by a qualified
electrician in compliance with your local electrical code.
Never connect more than one motor to the wallcontrol
without using the central control module
(14.6 - option available).
CD 30E3
CD 20E3
200 Watts
190 Watts
230V / 50Hz, cable 2m
230V / 50Hz, cable 2m
20Nm
15Nm
15kg (60mm Tube) 25kg (60mm Tube)
18 U/Min.
18 U/Min.
10
Read the following instructions carefully before making
any open or close limit adjustments.
To attach the shutter material on the shaft, use ONLY
the 3.9 x 6.5 mounting screws included (CD20E4, CD30E4,
CD50E4). Otherwise, the drive might be damaged by screws
which are too long.
IF ADJUSTMENTS ARE NEEDED, PROCEED AS
FOLLOWS:
LIMIT ADJUSTMENT SCREW #1 - OPEN
Run the motor through an open cycle.
If motor stops before shutter is fully opened:
Turn set screw #1 toward + and open the shutter until
desired position is reached.
If motor stops after shutter is fully opened:
Close shutter below desired position. Turn set screw #1
toward – and open shutter again. Repeat this step as often
as necessary to reach the desired position
LIMIT ADJUSMENT SCREW #2 - CLOSE
Run the motor through a close cycle. Attach the shutter
material to the shaft .
If motor stops too soon (before shutter is fully
closed):
Turn set screw #2 toward + and close shutter again, until
desired position is reached.
If motor stops after shutter is fully closed:
Retract shutter above desired position. Turn set screw #2
toward – and close shutter again. Repeat this step as often
as necessary to reach the desired position.
10
CD 50E3
320 Watts
230V / 50Hz, cable 2m
40Nm
60kg (60mm Tube)
18U/Min.

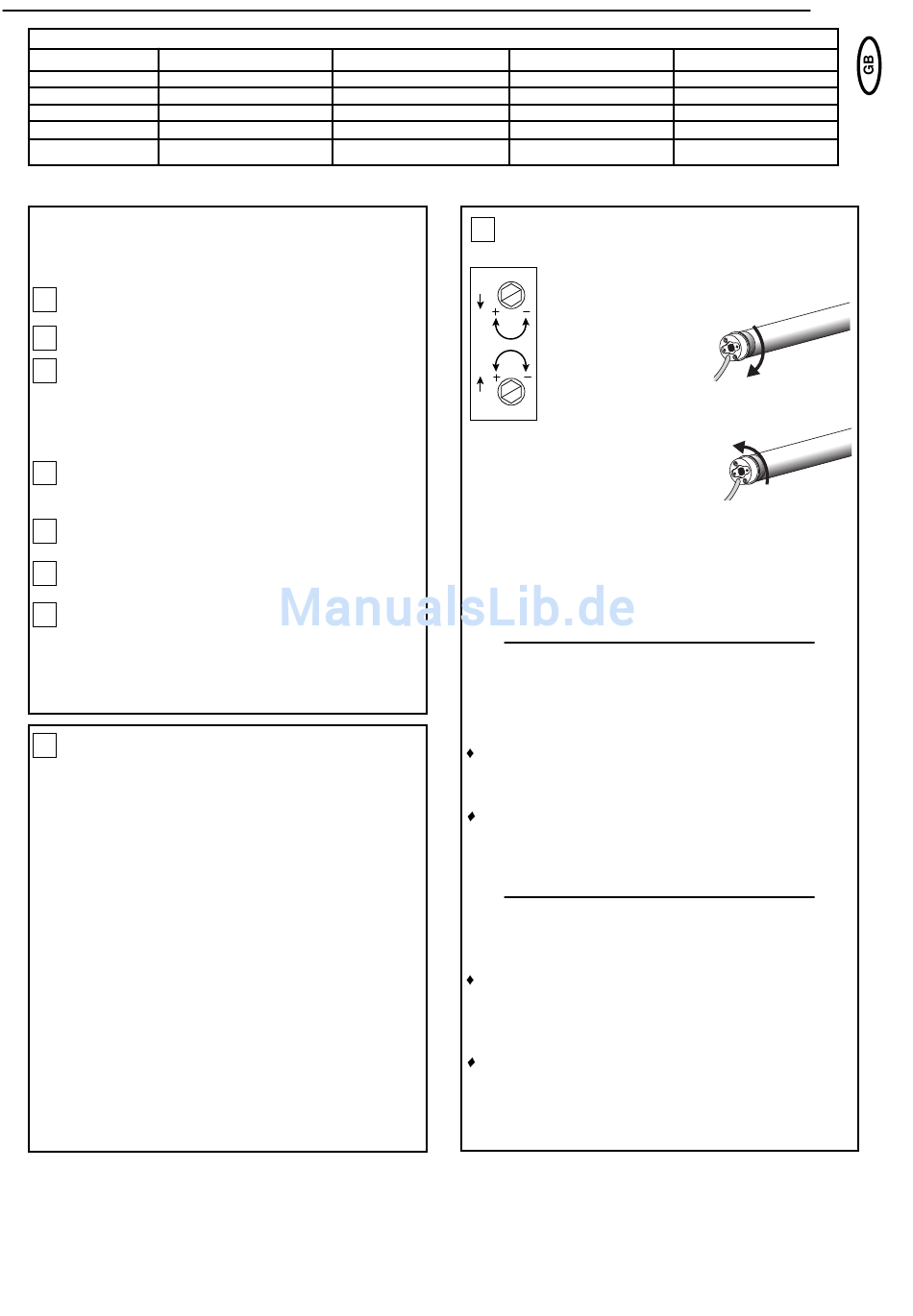

LIMIT ADJUSTMENT
"Open" and "Close"
Limit Adjustment Procedure
#1 Limit Setting for "Shutter Open"
+ = increase closing travel
– = decrease closing travel
#2 Limit Setting for "Shutter Close"
+ = increase opening travel
– = decrease opening travel
