Hub (inside)
17. Turntable
(glass)
19. Coupling
20. Rack
NOTES:
• The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it is not
damaged.
• After cooking fatty foods without a cover, always clean the cavity and especially the grill heating element
thoroughly, these must be dry and free from grease. Built-up grease may overheat and begin to smoke or
catch fire.
• Always operate the oven with the turntable and turntable support fitted correctly. This promotes thorough,
even cooking. A badly fitted turntable may rattle, may not rotate properly and could cause damage to the
oven.
• All food and containers of food are always placed on the turntable for cooking.
• The turntable rotates clockwise or anti-clockwise. The rotary direction may change each time you start the
oven. This does not affect cooking performance.
WARNING:
The door, outer cabinet, oven cavity, accessories and dishes will become very hot during operation.
To prevent burns, always use thick oven gloves.
2 7
8 3
12
6 5
4
13
14
18. Turntable
support
GB-3

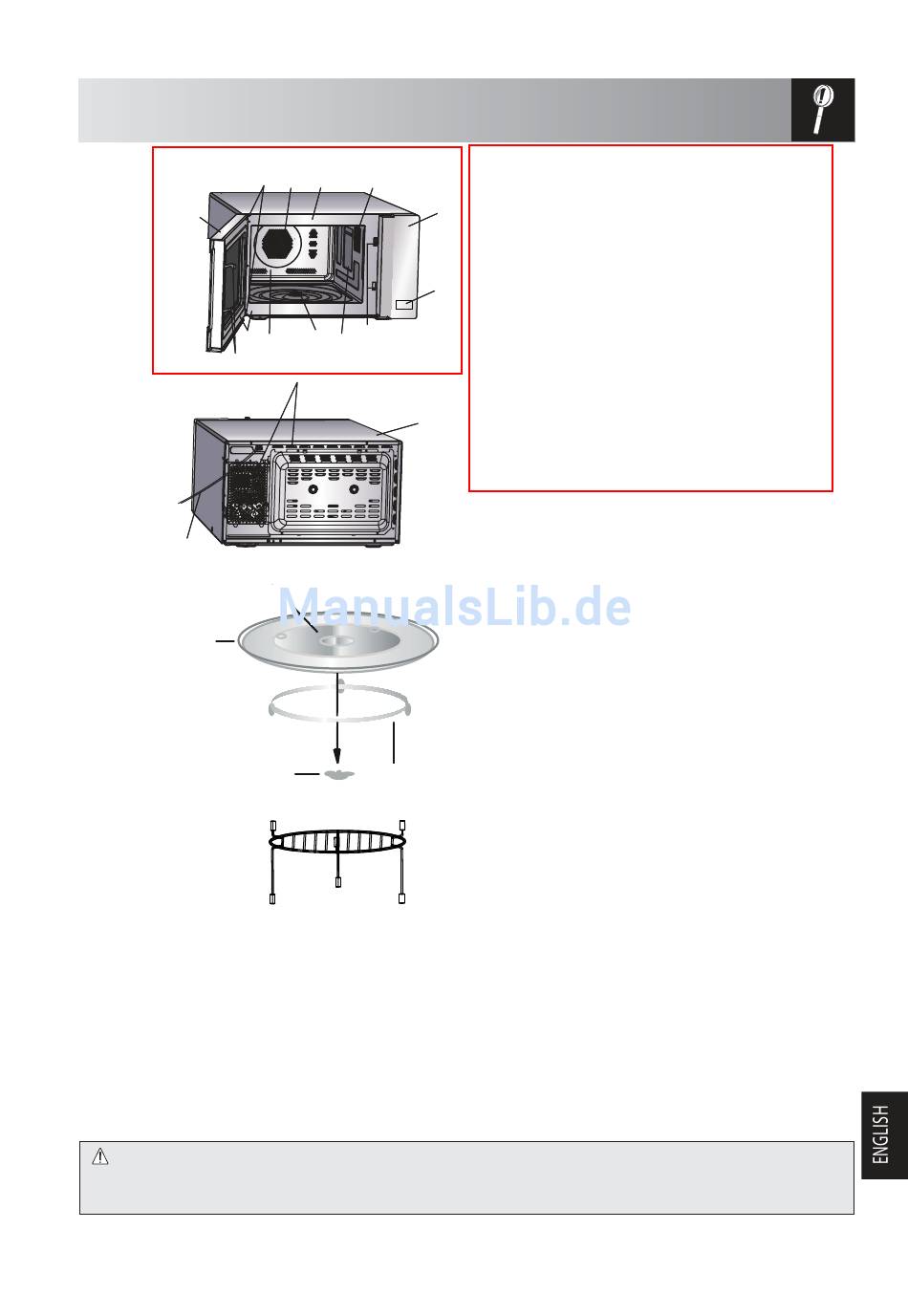

OVEN AND ACCESSORIES

OVEN
1. Door
9
2. Door hinges
3. Oven lamp
4. Waveguide cover (DO NOT REMOVE)
5. Coupling
6. Oven cavity
16
7. Convection fan (covered)
8. Grill heating element (under the ceiling)
9. Control panel
10. Door latches
11. Door seals and sealing surfaces
12. Door safety latches
13. Ventilation openings
14. Outer cabinet
15. Power supply cord
16. Door Released Button
ACCESSORIES:
Check to make sure the following accessories are
provided:
(17) Turntable (18) Turntable support (19) Coupling
(20) Rack
• Place the turntable support in the centre of the oven
floor so that it can freely rotate around the coupling.
Then place the turntable on to the turntable support
so that it locates firmly into the coupling.
• To avoid turntable damage, ensure dishes and
containers are lifted clear of the turntable rim when
removing them from the oven.
• For use of the rack, refer to the grilling sections on
page GB-10.
• The non stick coating crisp plate can be used in all
cooking modes to obtain crisp and best performance
results. It is ideal for food like oven chips, Pizza etc.
or it can act as a splash guard, if you are grilling food
directly on the rack to keep the oven clean.
Never touch the grill when it is hot.
NOTE: When you order accessories, please mention
two items: part name and model name to your
dealer or SHARP authorised service agent.
