5. Installation examples

5.1 System Pro
This example represents one of numerous possibilities, to achieve a high quality seepage
system. Further installation possibilities can be achieved with the accessories listed in the
catalogue and this technical manual. Every accessory has a special technical manual for
installation, assembling, operation and maintenance.

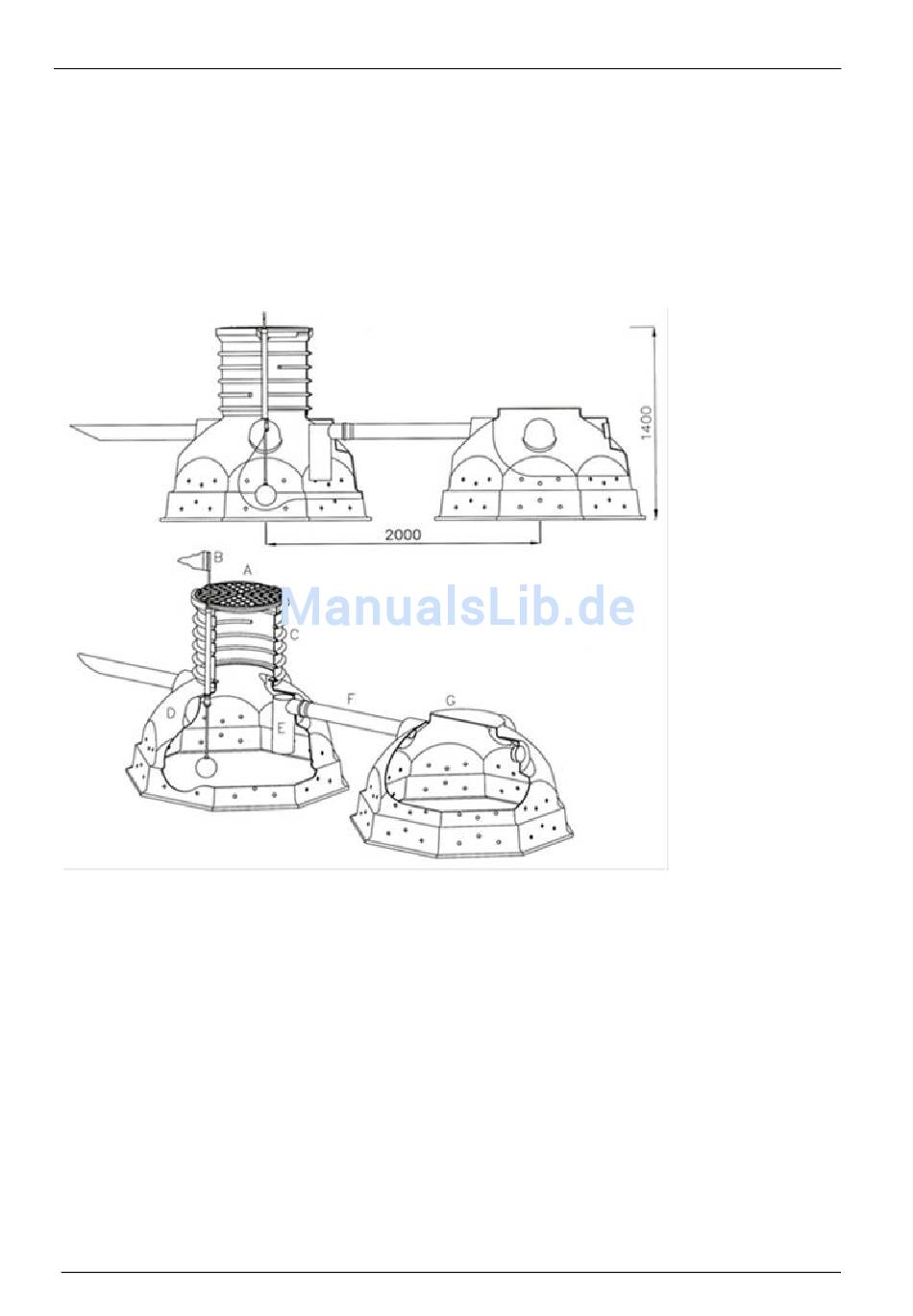

Arrangement example System professional with access
A: Shaft cover "Top Cover", included in the professional package IGLU soakaway 900 accessible.
B: Level indicator WIMPI, see accessories.
C: Extension shaft VS60, included in the professional package IGLU soakaway 900 accessible.
D: IGLU soakaway 900, included in the professional package IGLU soakaway 900 accessible.
E: Dip pipe DN100 for extension IGLU (G), accessories. For several extension IGLUs arranged
successively, a dip pipe is necessary per leg.
F: Connecting pipe DN100, on site.
G: IGLU soakaway for the extension.
®
