Ehleva Vector 70 Montageanleitung Seite 44

advanced mobular stair system


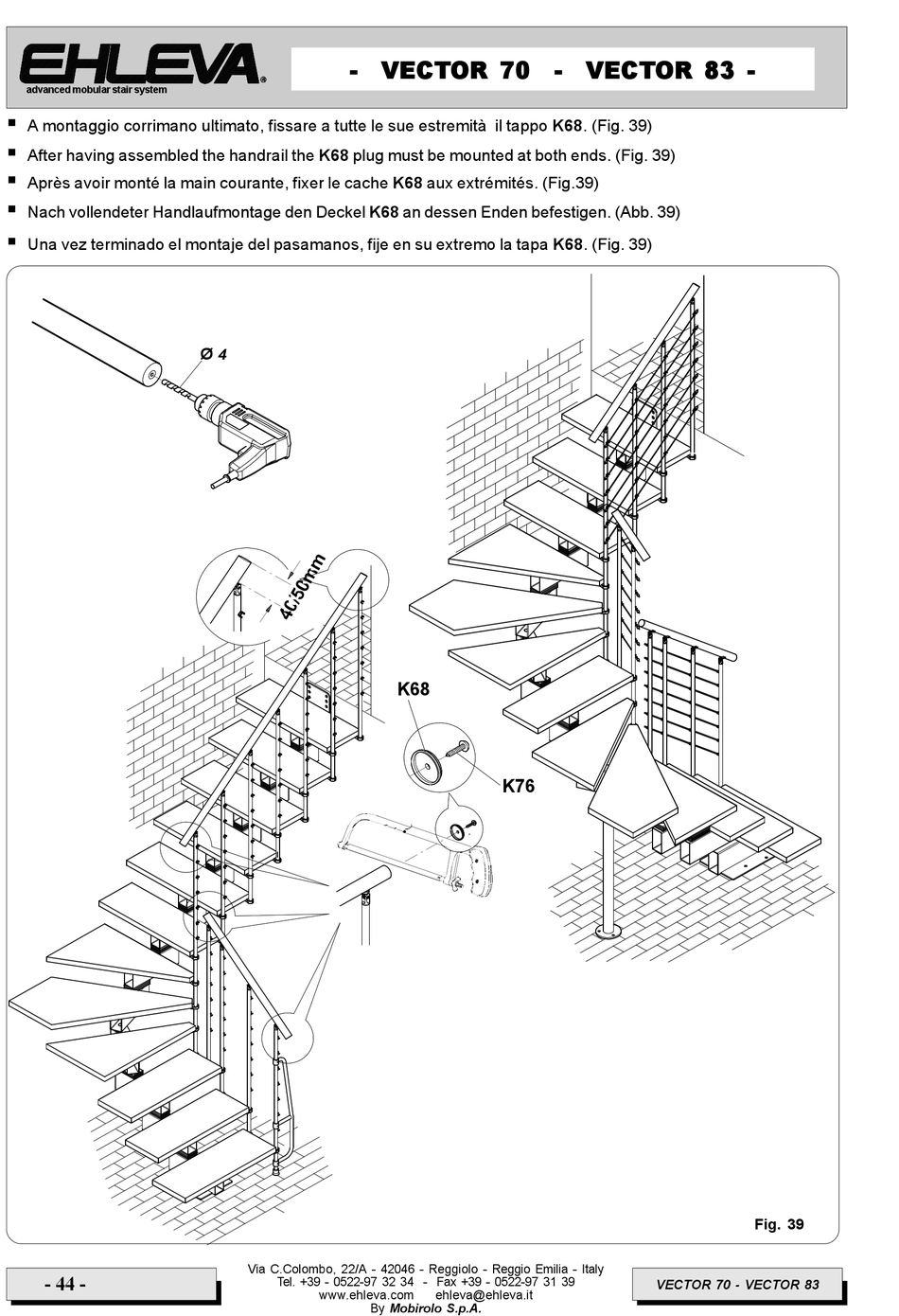

A montaggio corrimano ultimato, fissare a tutte le sue estremità il tappo K68. (Fig. 39)

After having assembled the handrail the K68 plug must be mounted at both ends. (Fig. 39)

Après avoir monté la main courante, fixer le cache K68 aux extrémités. (Fig.39)

Nach vollendeter Handlaufmontage den Deckel K68 an dessen Enden befestigen. (Abb. 39)

Una vez terminado el montaje del pasamanos, fije en su extremo la tapa K68. (Fig. 39)
- 44 -
- VECTOR 70 - VECTOR 83 -
