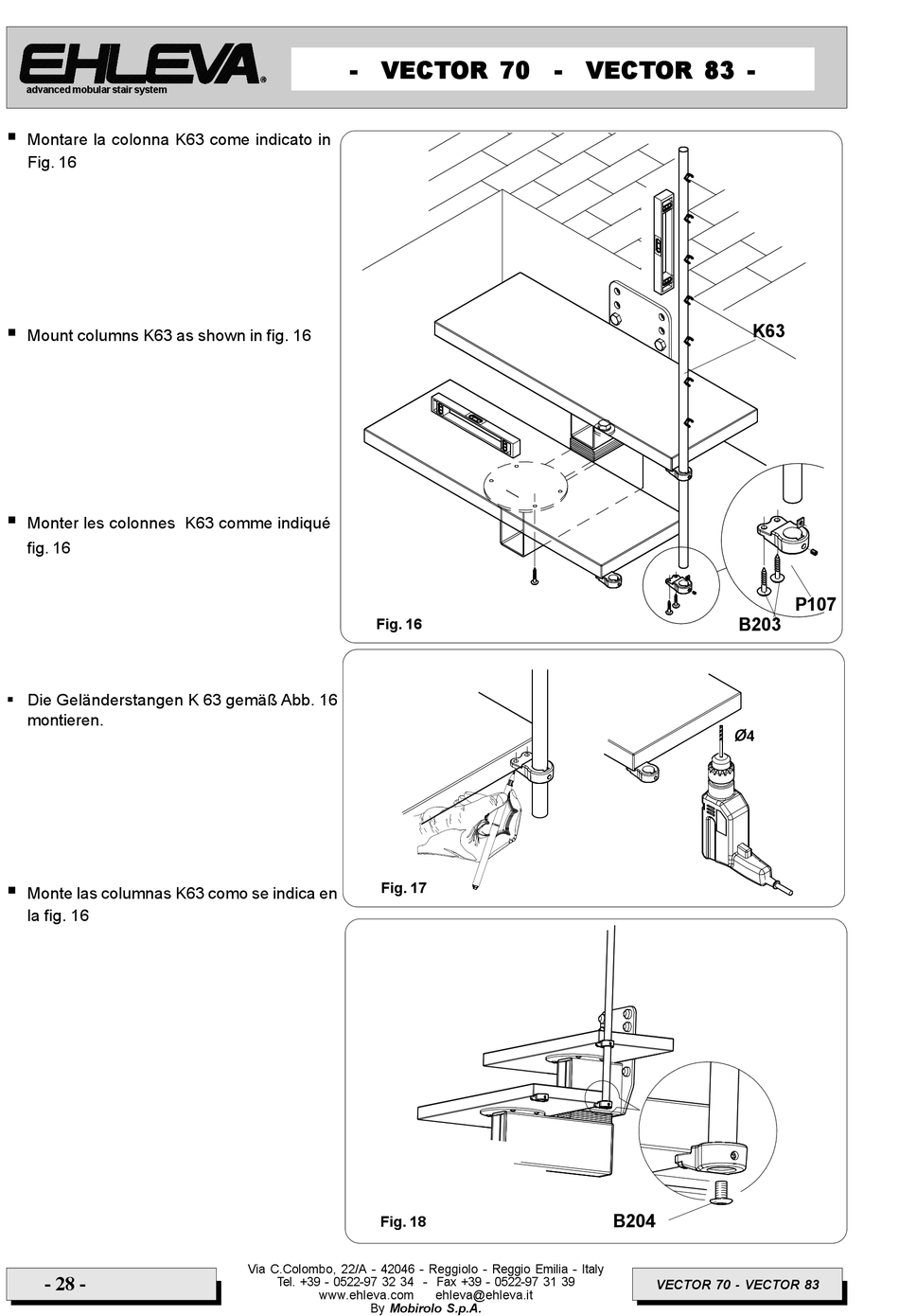

Ehleva Vector 70 Montageanleitung Seite 28

advanced mobular stair system

Montare la colonna K63 come indicato in
Fig. 16

Mount columns K63 as shown in fig. 16

Monter les colonnes K63 comme indiqué
fig. 16
 Die Geländerstangen K 63 gemäß Abb. 16
montieren.

Monte las columnas K63 como se indica en
la fig. 16
- 28 -
- VECTOR 70 - VECTOR 83 -
Fig. 16
Fig. 17
Fig. 18
