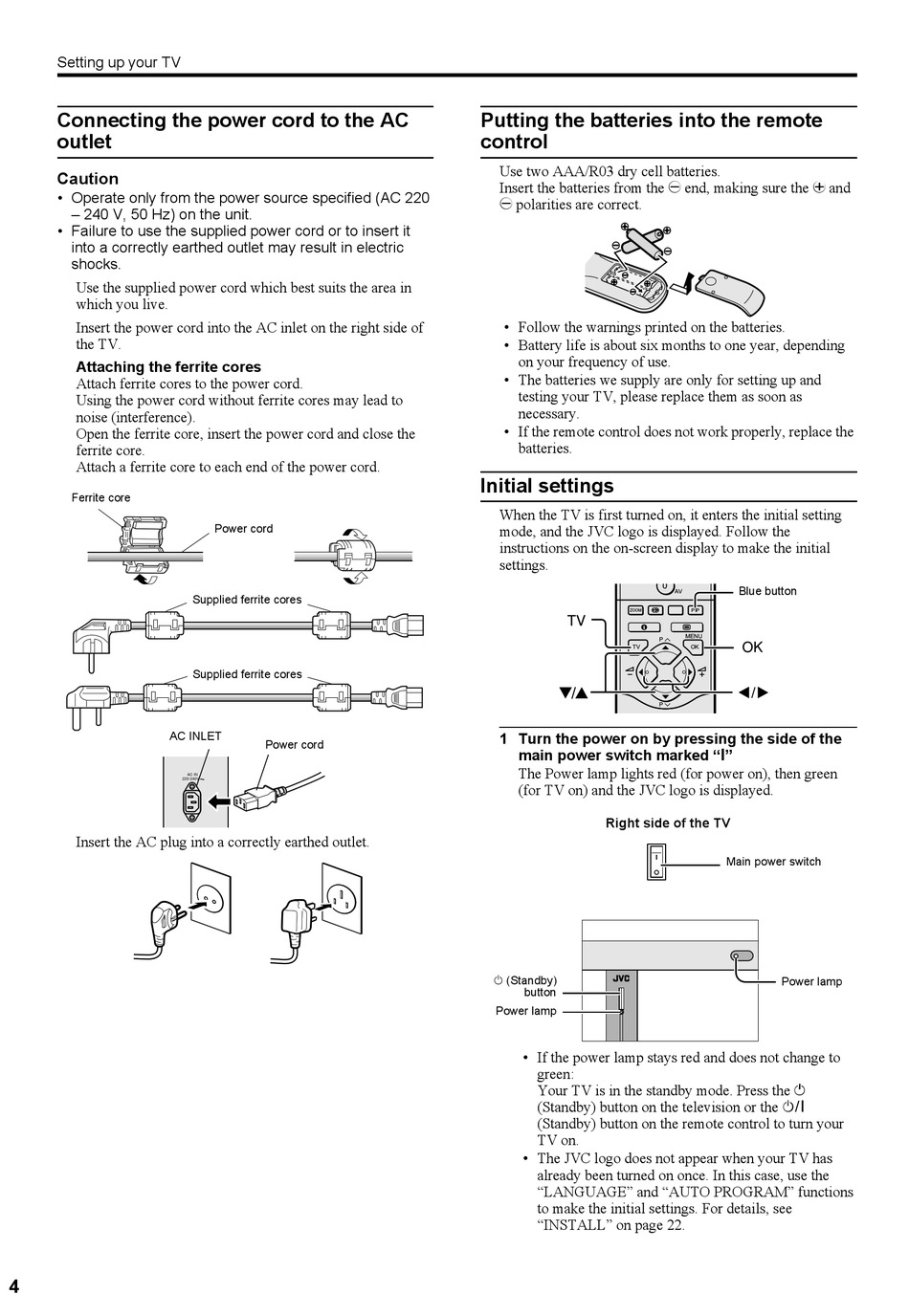

Setting up your TV
Connecting the power cord to the AC
outlet
Caution
• Operate only from the power source specified (AC 220
– 240 V, 50 Hz) on the unit.
• Failure to use the supplied power cord or to insert it
into a correctly earthed outlet may result in electric
shocks.
Use the supplied power cord which best suits the area in
which you live.
Insert the power cord into the AC inlet on the right side of
the TV.

Attaching the ferrite cores

Attach ferrite cores to the power cord.
Using the power cord without ferrite cores may lead to
noise (interference).
Open the ferrite core, insert the power cord and close the
ferrite core.
Attach a ferrite core to each end of the power cord.
Ferrite core
AC INLET
Insert the AC plug into a correctly earthed outlet.
4
Power cord
Supplied ferrite cores
Supplied ferrite cores
Power cord
AC IN
220-240V
Putting the batteries into the remote
control
Use two AAA/R03 dry cell batteries.
Insert the batteries from the - end, making sure the + and
- polarities are correct.
• Follow the warnings printed on the batteries.
• Battery life is about six months to one year, depending
on your frequency of use.
• The batteries we supply are only for setting up and
testing your TV, please replace them as soon as
necessary.
• If the remote control does not work properly, replace the
batteries.

Initial settings

When the TV is first turned on, it enters the initial setting
mode, and the JVC logo is displayed. Follow the
instructions on the on-screen display to make the initial
settings.
TV
1 Turn the power on by pressing the side of the
main power switch marked "B B B B "
The Power lamp lights red (for power on), then green
(for TV on) and the JVC logo is displayed.
Right side of the TV
A (Standby)
button
Power lamp
• If the power lamp stays red and does not change to
green:
Your TV is in the standby mode. Press the A
(Standby) button on the television or the #
(Standby) button on the remote control to turn your
TV on.
• The JVC logo does not appear when your TV has
already been turned on once. In this case, use the
"LANGUAGE" and "AUTO PROGRAM" functions
to make the initial settings. For details, see
"INSTALL" on page 22.
0
Blue button
AV
PIP
MENU
P
OK
P
Main power switch
Power lamp
