FAN HEAD/CONTROLLER ASSEMBLY:
1. Loose the two thumbscrews located at the back of the fan head/controller.Do not
fully unscrew- the two nuts will fall off.
2. Locate the two holes underneath the fan head /controller. Assemble the two tubes
and push them down until it stops.
3. Tighten the two Thumb Screws.

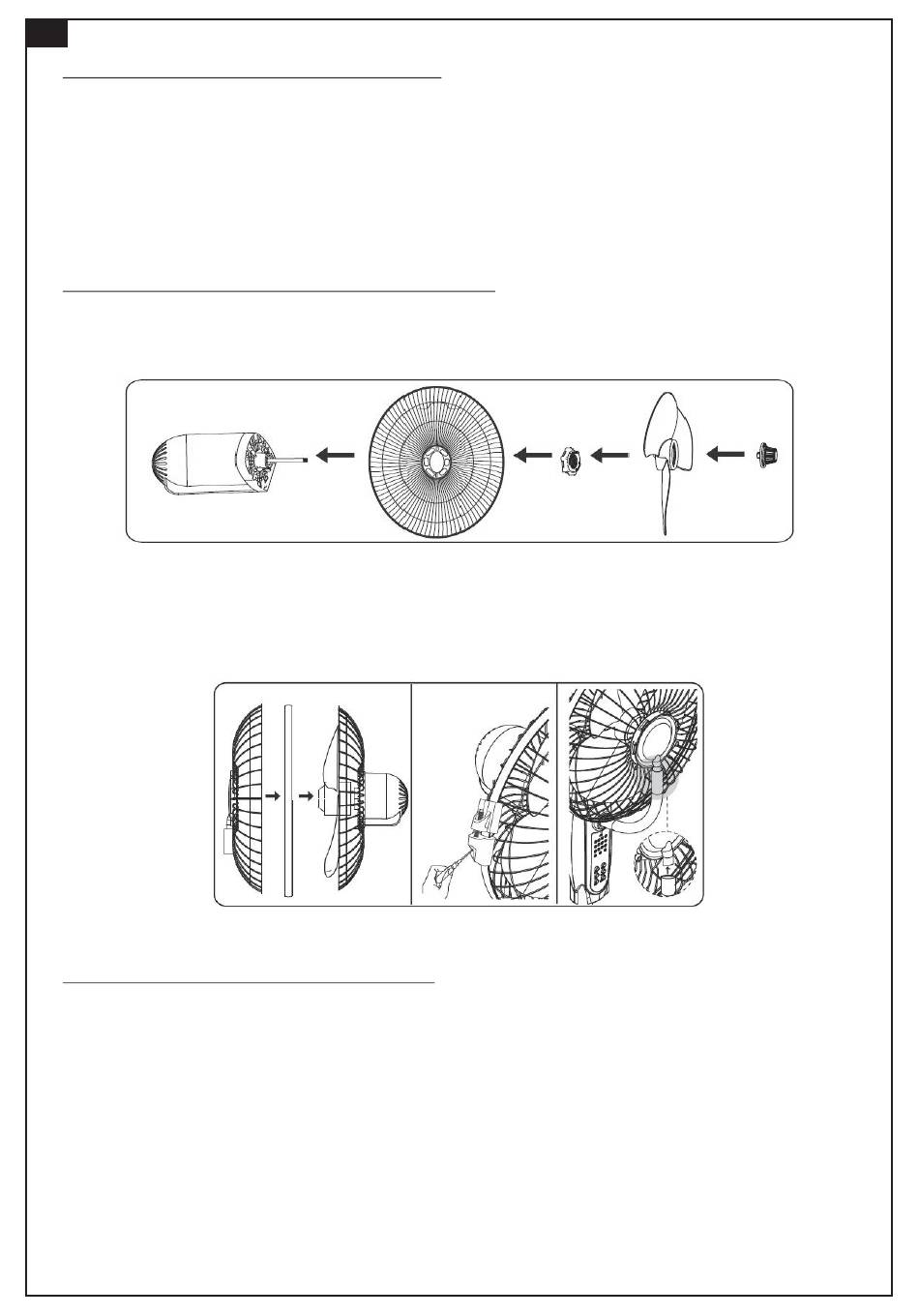

FAN BLADE AND SAFETY GRID ASSEMBLY:
1. Install the rear grid, plastic nut, blades, and blade spinner to the motor shaft and fix
it in place.
2. install the front grid and net frame, and secure using the screw on the net frame.
Inset the upper flexible hose on the motor unit into the mist vent that is located at
the front of the fan grid (ensure the hose is free of kinks).
MIST GENERATOR AND WATER TANK
1. Place the misting generator on to the base, ensuring it is appropriately seated in
the recess.
2. Place the water tank on top of the misting generator. Fit the cover to the top of the
water tank.
3. Insert the lower flexible hose on the motor unit into the water tank cover (ensure
the hose is free of kinks)
