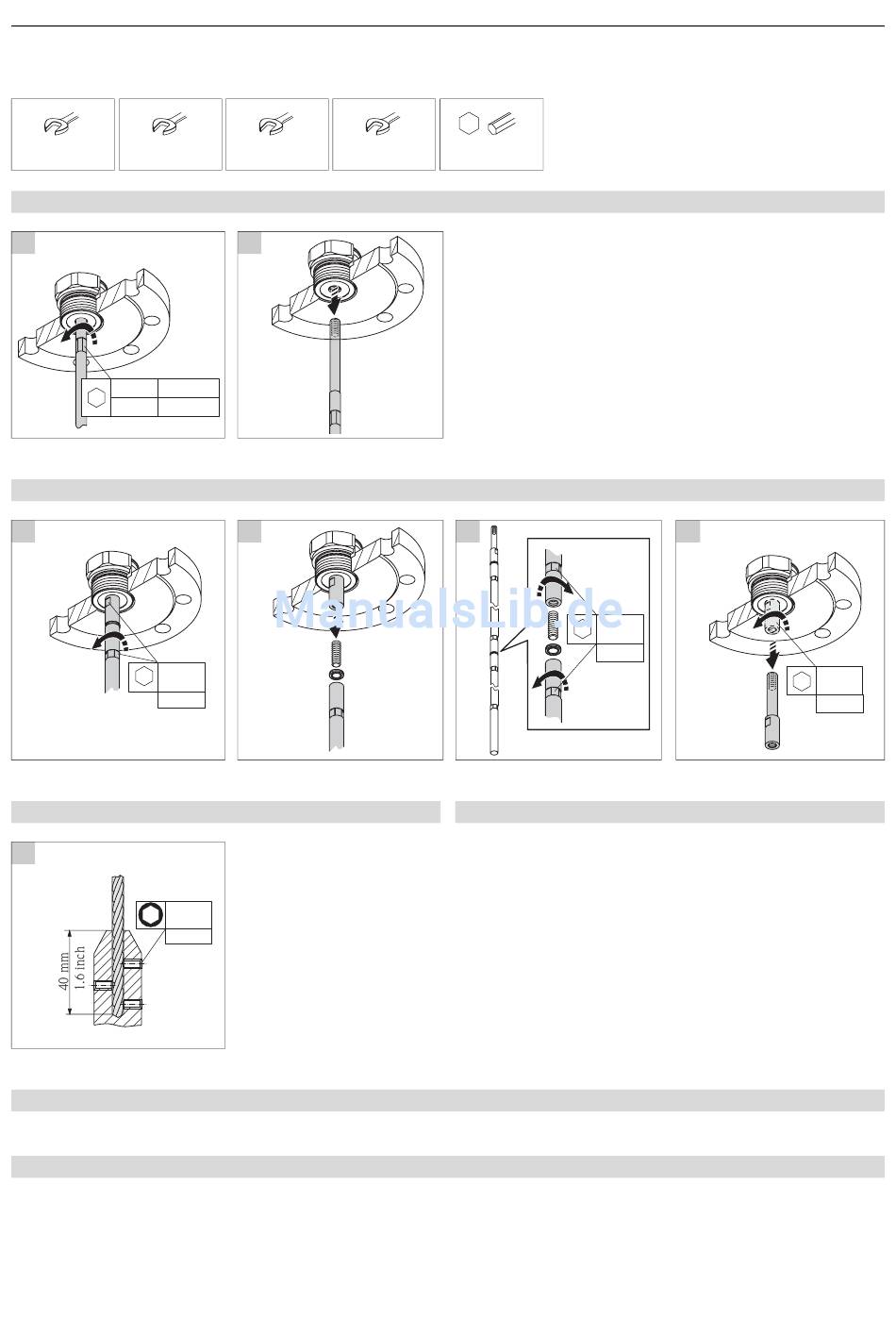

Endress+Hauser Levelflex FMP50 Einbauanleitung Seite 2

Probe rod / rope without process connection
Tool list
7mm, 3,5 Nm 7 mm, 5 Nm
(FMP50: GDJ,RDJ) (FMP51: GDJ,RDJ)
2 Exchange of probe rod / rope
a
3,5/5 Nm
7 mm
10 mm
10 Nm
Sonde_FMP51_1
3 Exchange of divisible probe rod
a
14 mm
15 Nm
Sonde_FMP51_3
4 Shortening of probe ropes / Mounting the probe weight
a
3 mm
5 Nm
6 Re-assembly
Re-assembly is carried out in reverse order, unless otherwise instructed.
7 Re-calibration of the instrument
Install the instrument into the vessel.
If the probe length is identical with the original length of the probe, a probe calibration is not required.
If the probe length or probe type is different, perform a new level calibration according to the description in the Operating Manual.
Additionally it is necessary to order a new typeplate and fix it on the instrument!
Endress+Hauser
10 mm, 10 Nm 14 mm, 10/15 Nm
(GGJ,RGJ,A**,C**) (probe rod divisible)
b
b
1. Loosen 3 hexagon socket set
screws (AF3 mm), increased
torque is essential.
2. Remove the rope.
3. Measure off new rope length.
4. Prevent rope from fraying out.
5. Saw off the rope at a right angle or
cut it off with a bolt cutter.
6. Fully insert the rope into the
weight
7. Fasten the hexagon socket set
screws.
Gewicht2
3 mm, 5 Nm
(Shortening rope)
Sonde_FMP51_2
c
Sonde_FMP51_4
5 Shortening of probe rods
Probe rods can be shortened by sawing them off.
Levelflex FMP50, FMP51
d
14 mm
15 Nm
Sonde_FMP51_5
14 mm
10 Nm
Sonde_FMP51_6
2
