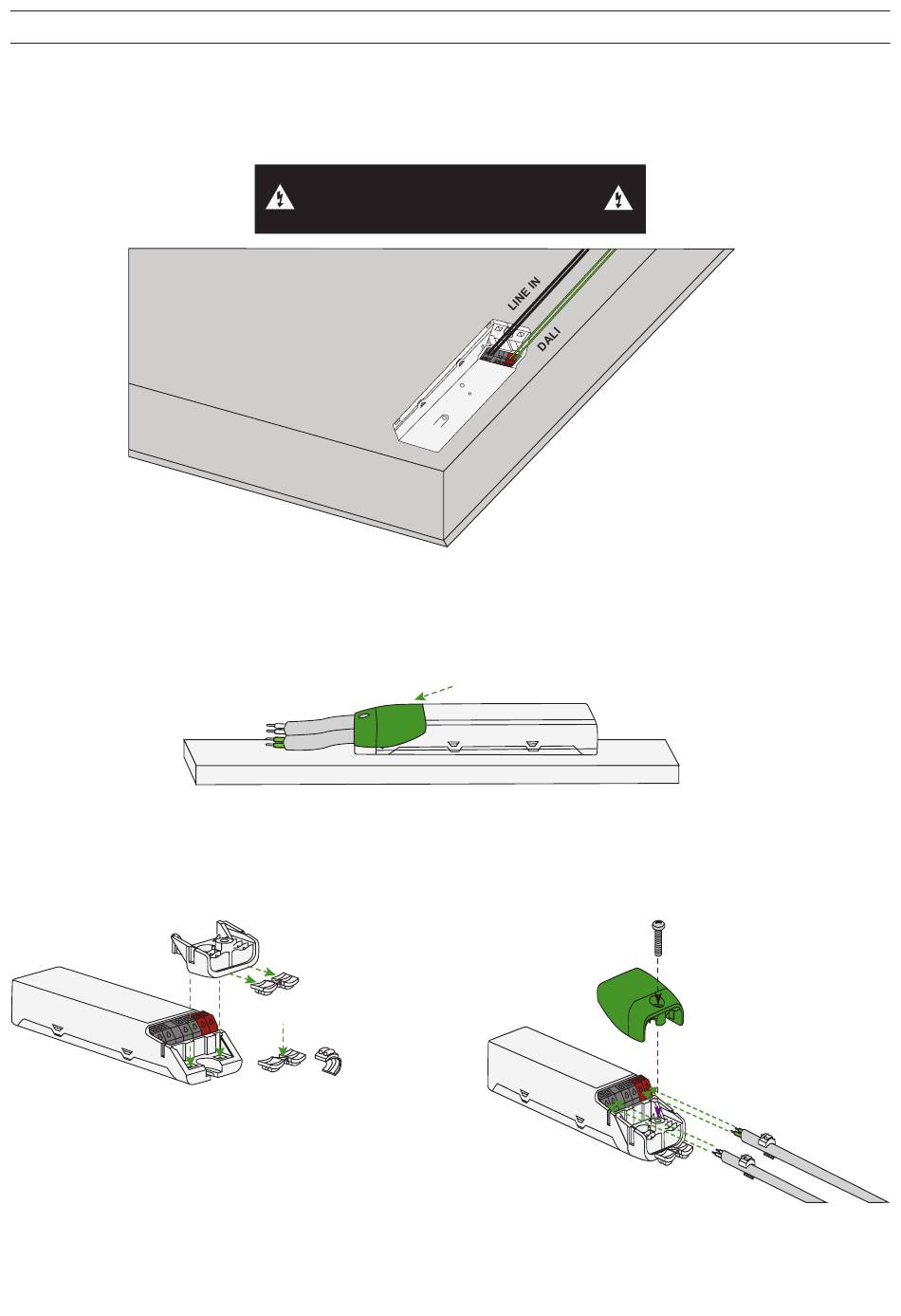

Luminaire Integration
The WDLC is intended for luminaire integration which enables the luminaire to be controlled wirelessly. Install the WDLC in dry,
indoor locations only. Secure the WDLC to the luminaire using a screw (not included). Recommended input voltage is 220 to 240
V, 50/60 Hz. Integrated Wireless Communication, with a typical connectivity range of ≤ 15 m (49 ft). Maximum of 300 m (984 ft) total
wire length for DALI.
Independent Ceiling Integration
Independent Ceiling Integration is possible with installation of the ECO CI KIT (ordered separately), a strain relief housing kit. The
WDLC requires the installation of an ECO CI KIT to ensure protection from electrical contact.
Remove cable guards from the ECO CI KIT base and
place ECO CI KIT base onto the WDLC. Push the center
of the cableguard down and bend, enabling the cable
guard to wrap around the cable.
ECO CI KIT Base

MOUNTING AND WIRING

WARNING: TURN THE POWER OFF AT
THE CIRCUIT BREAKER BEFORE WIRING.
Remove Cable Guard
2
ECO CI KIT
With the cable guards installed on the LINE IN and DALI
cables, connect the wires into the WDLC ports. Place the
ECO CI KIT cover onto the WDLC and tighten the screws.
ECO CI KIT Cover
DALI
LINE IN
