LEGRAND PLUS Installationsanleitung

No: 34555 – 04/25 rev. 2
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo • Katalognummer: EN-WDLC-ZB
Country of Origin: Made in Hungary • Pays d'origine: Fabriqué en Hongrie • País de origen: Hecho en Hungría • Herkunftsland: Hergestellt in Ungarn
DESCRIPTION
The Wireless DALI Luminaire Controller (WDLC) enables
standard DALI drivers to be integrated as part of an Wattstopper
PLUS Lighting Control System. The WDLC is able to individually
address and control up to two DALI drivers and can provide
group control for up to eight DALI drivers. The WDLC can also
support one DALI sensor.
When using electrical equipment, basic safety precautions should always be followed, including the following:
• Do not mount near gas or electric heaters or let power supply cords touch hot surfaces.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.
• The use of accessory equipment is not recommended by Legrand as it may cause an unsafe condition.
• All DALI channels are internally connected together to the control unit. Make sure to consider this when installing.
• Do not use this equipment for other than the intended use.

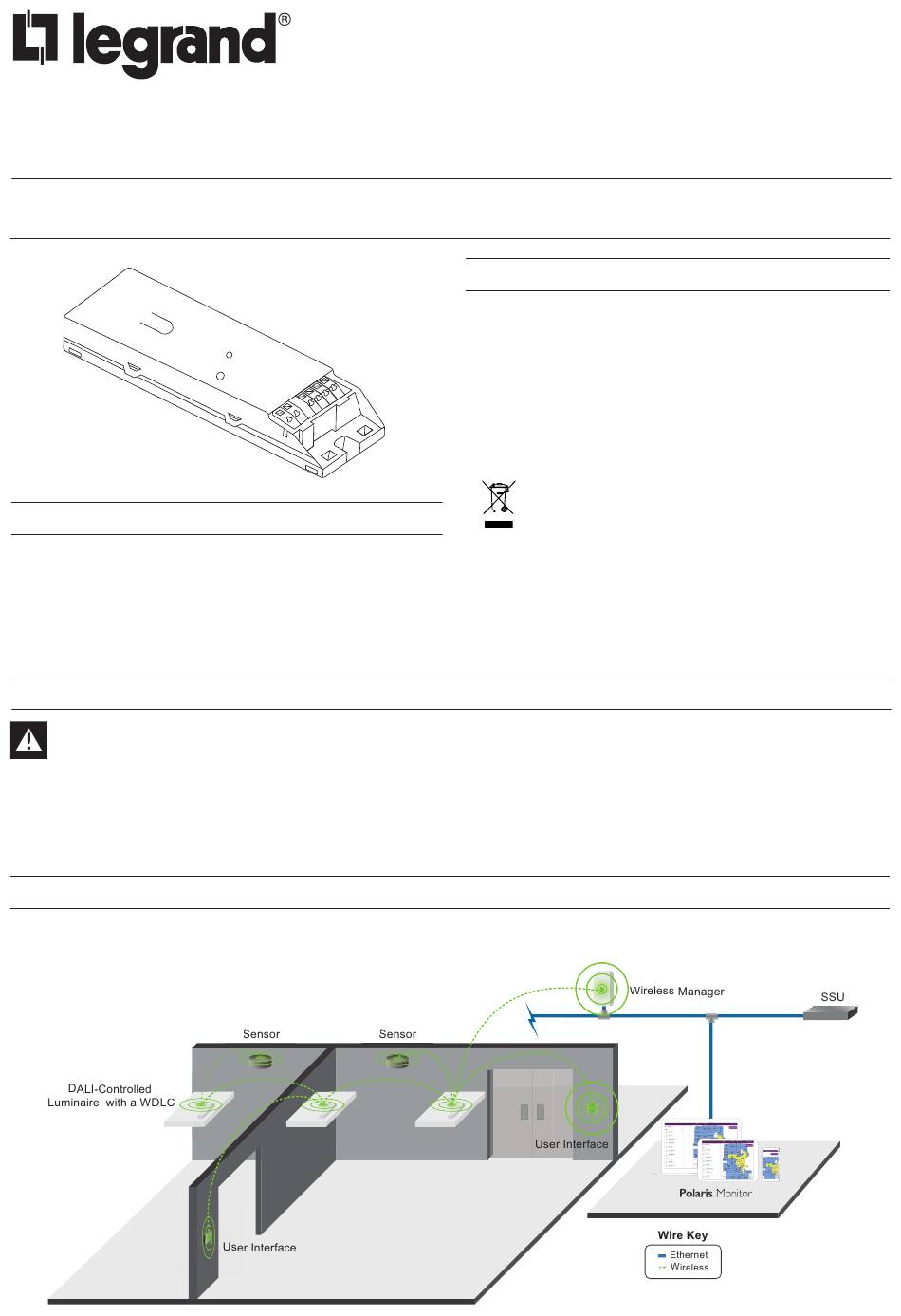

This illustration shows how each component is easily integrated into the Wattstopper PLUS System.
Wattstopper
Wireless DALI Luminaire Controller
Contrôleur de Luminaire DALI sans Fil
Controlador de luminarias inalámbrico DALI
Drahtlose DALI-Leuchtensteuerung
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Installationsanleitung
PRODUCT SAFETY
WIRELESS SYSTEM OVERVIEW
PLUS
®
SPECIFICATIONS
Voltage .....................................................220 to 240 VAC, 50/60 Hz
Current Consumption ............................................. 0.3 to 1 W (DALI)
Wireless Range ............................................................ 15 m (49.2 ft)
Number of Control Outputs
1 to 2 DALI gears in Addressed Mode and 1 DALI Sensor
3 to 8 DALI gears in Broadcast Mode and 1 DALI Sensor
Operating Temperature ........................... -4° to 140°F (-20° to 60°C)
Certifications ...................................................................... CE, UKCA
Environmental Suitability ............................................................ IP20
This product bears the selective sorting symbol for Waste electrical
and electronic equipment (WEEE). This means that this product must
be handled pursuant to European directive 2012/19/EU in order to be
recycled or dismantled to minimize its impact on the environment. User
has the choice to give his product to a competent recycling organization or to the
retailer when he buys a new electrical or electronic equipment.
