LEGRAND PLUS Installationsanleitung

No: 080583 – 05/25 rev. 3
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo • Katalognummer:
VISION, HIGHBAY COUPLER G2
Country of Origin:
Sensor: Made in Mexico • Pays d'origine: Fabriqué en Mexique • País de origen: Hecho en México • Herkunftsland: Hergestellt in Mexiko
Coupler: Made in Hungary • Pays d'origine: Fabriqué en Hongrie • País de origen: Hecho en Hungría • Herkunftsland: Hergestellt in Ungarn
DESCRIPTION
The VISION Sensor is a motion sensor ideal for large areas such as
open-plan offices, corridors and storage rooms. The VISION Sensor
must be used in conjunction with the DALI2 Coupler for HIGH Bay /
Vision Sensors as part of the Wattstopper PLUS System.
When using electrical equipment, basic safety precautions should always be followed, including the following:
• Do not mount near gas or electric heaters or let power supply cords touch hot surfaces.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.
• The use of accessory equipment is not recommended by Legrand as it may cause an unsafe condition.
• All DALI channels are internally connected together to the control unit. Make sure to consider this when installing.
• Do not use this equipment for other than the intended use.
Wattstopper PLUS enables you to control DALI devices. With any Wattstopper PLUS wired design, you get a reliable, lighting control
system that can be installed quickly and easily.
Wattstopper
VISION Motion Sensor
VISION Détecteur de mouvement
VISION Sensor de movimiento
VISION Bewegungsmelder
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Installationsanleitung
Voltage
Sensor Power Consumption..................................................... 0.6 W
Coupler Current Consumption.....................................................6mA
Light Sensor Operating Range ............ 20 to 800 lux (approximately)
Operating Temperature ..............................32° to 122°F (0° to 50°C)
Certifications ...........................................................................CE, UKCA
Environmental Suitability ............................................................ IP20
has the choice to give his product to a competent recycling organization or to the
retailer when he buys a new electrical or electronic equipment.
PRODUCT SAFETY

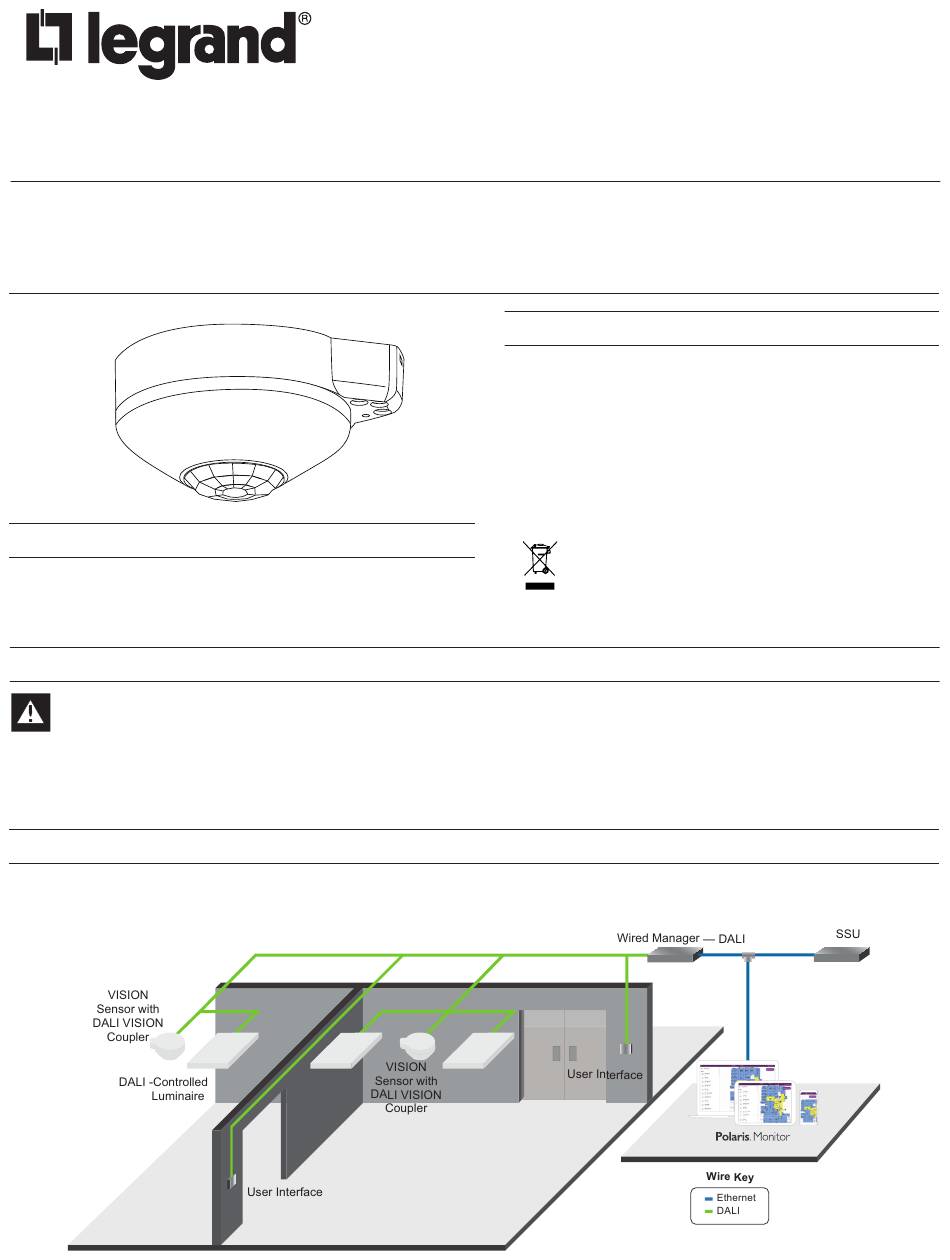

WIRED SYSTEM OVERVIEW
PLUS
®
SPECIFICATIONS
Sensor ..............................................120 to 277 VAC, 50/60 Hz
Coupler ............................................................16VDC, via DALI
This product bears the selective sorting symbol for Waste electrical
and electronic equipment (WEEE). This means that this product must
be handled pursuant to European directive 2012/19/EU in order to be
recycled or dismantled to minimize its impact on the environment. User
