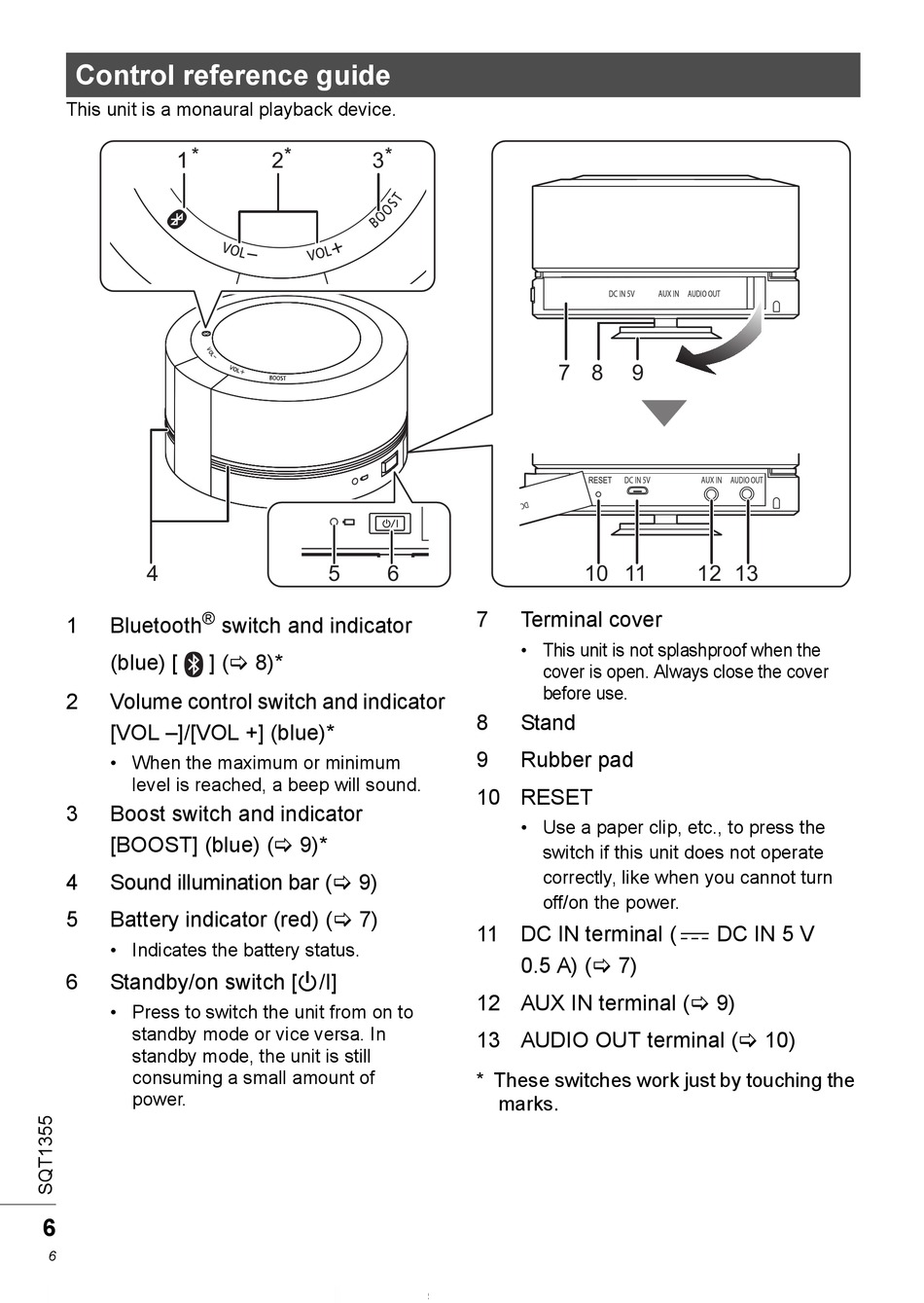

Control reference guide

This unit is a monaural playback device.
1 1
4
®
1 Bluetooth
(blue) [ ] (
2 Volume control switch and indicator
[VOL –]/[VOL +] (blue)*
• When the maximum or minimum
level is reached, a beep will sound.
3 Boost switch and indicator
[BOOST] (blue) (
4 Sound illumination bar (
5 Battery indicator (red) (
• Indicates the battery status.
6 Standby/on switch [Í/I]
• Press to switch the unit from on to
standby mode or vice versa. In
standby mode, the unit is still
consuming a small amount of
power.
6
6
2 3
5 6
switch and indicator
8)*
9)*
9)
7)
7 8 9
10 11
7 Terminal cover
• This unit is not splashproof when the
cover is open. Always close the cover
before use.
8 Stand
9 Rubber pad
10 RESET
• Use a paper clip, etc., to press the
switch if this unit does not operate
correctly, like when you cannot turn
off/on the power.
11 DC IN terminal (
0.5 A) ( 7)
12 AUX IN terminal (
13 AUDIO OUT terminal (
* These switches work just by touching the
marks.
12 13
DC IN 5 V
9)
10)
