Behringer 911 ENVELOPE GENERATOR Schnellstartanleitung Seite 4

6
911 ENVELOPE GENERATOR

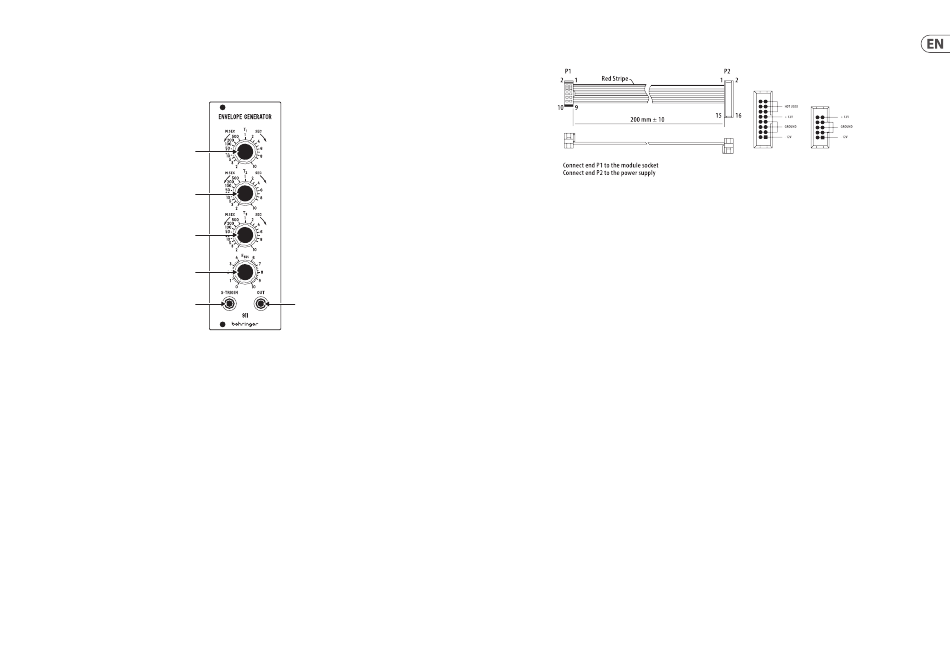

911 ENVELOPE GENERATOR Controls
(EN) Controls
(1)
(2)
(3)
(4)
(5)
1. T1 (Attack) – Controls the envelope attack time from 2 ms to 10 seconds.
2. T2 (Decay) – Controls the envelope decay time from 2 ms to 10 seconds.
3. T3 (Release) – Controls the envelope release time from 2 ms to 10 seconds.
(6)
4. E sus (Sustain) – Controls the sustain time from 0 or 10 seconds.
5. S-TRIG IN – Connect an external trigger signal via 3.5 mm TS cable.
6. OUT – Send the envelope to another module via 3.5 mm TS cable.
Power Connection
The 911 comes with the required power cable for connecting to a standard
Eurorack power supply system. Follow these steps to connect power to the
module. It is easier to make these connections before the module has been
mounted into a rack case.
1. Turn the power supply or rack case power off and disconnect the power cable.
2. Insert the 16-pin connector on the power cable into the socket on the power
supply or rack case. The connector has a tab that will align with the gap in
the socket, so it cannot be inserted incorrectly. If the power supply does not
Installation
The necessary screws are included with the module for mounting in a Eurorack
case. Connect the power cable before mounting.
Depending on the rack case, there may be a series of fixed holes spaced 2 HP apart
along the length of the case, or a track that allows individual threaded plates to
slide along the length of the case. The free-moving threaded plates allow precise
positioning of the module, but each plate should be positioned in the approximate
relation to the mounting holes in your module before attaching the screws.
Quick Start Guide
have a keyed socket, be sure to orient pin 1 (-12 V) with the red stripe on
the cable.
3. Insert the 10-pin connector into the socket on the back of the
module. The connector has a tab that will align with the socket for
correct orientation.
4. After both ends of the power cable have been securely attached, you may
mount the module in a case and turn on the power supply.
Hold the module against the Eurorack rails so that each of the mounting holes
are aligned with a threaded rail or threaded plate. Attach the screws part way
to start, which will allow small adjustments to the positioning while you get
them all aligned. After the final position has been established, tighten the
screws down.
7
