Configuration

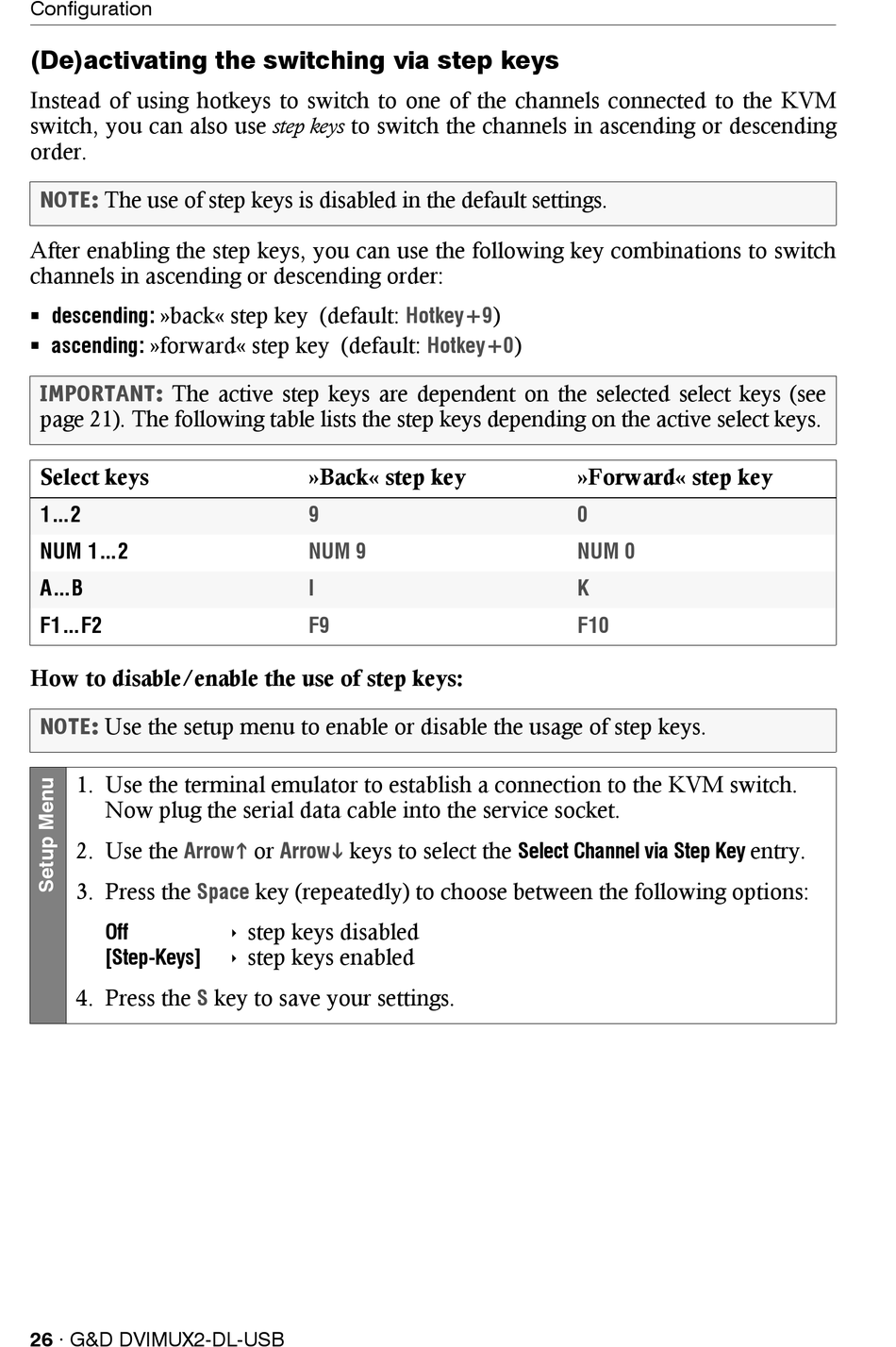

(De)activating the switching via step keys

Instead of using hotkeys to switch to one of the channels connected to the KVM
switch, you can also use step keys to switch the channels in ascending or descending
order.
NOTE:
The use of step keys is disabled in the default settings.
After enabling the step keys, you can use the following key combinations to switch
channels in ascending or descending order:
 descending: »back« step key (default:
»forward« step key (default:
 ascending:
IMPORTANT: The active step keys are dependent on the selected select keys (see
page 21). The following table lists the step keys depending on the active select keys.
Select keys
1 ... 2
NUM 1 ... 2
A ... B
F1 ... F2
How to disable/enable the use of step keys:
NOTE: Use the setup menu to enable or disable the usage of step keys.
1. Use the terminal emulator to establish a connection to the KVM switch.
Now plug the serial data cable into the service socket.
2. Use the Arrow
3. Press the Space
Off
[Step-Keys]
4. Press the
S
26 · G&D DVIMUX2-DL-USB
»Back« step key
9
NUM 9
I
F9
or Arrow keys to select the
key (repeatedly) to choose between the following options:
 step keys disabled
 step keys enabled
key to save your settings.
Hotkey+9 )
)
Hotkey+0
Select Channel via Step Key
»Forward« step key
0
NUM 0
K
F10
entry.
