Function | LED check
6
green flashing: internal Modbus communication active
green flashing: external Modubus communication active
SD card
Operation
7
7.1 Data storage of measured values
• To enable the ComLog module to save all measured values
from the connected KTS components, first a log file in the
DAT format must be created on the SD card.
•
The log file will be configured by the Kemper service
technician during commissioning and then transferred to the
SD card. Based on the correspondingly configured file, the
ComLog module creates a CSV file for every day with the
saved measurements in the selected storage interval.
•
The CSV files can be copied and opened and processed, for
instance with Excel.
• After copying, the CSV files have to be deleted on the SD
card.
To read the data from the ComLog module, remove the upper
part of the housing and take out the memory card

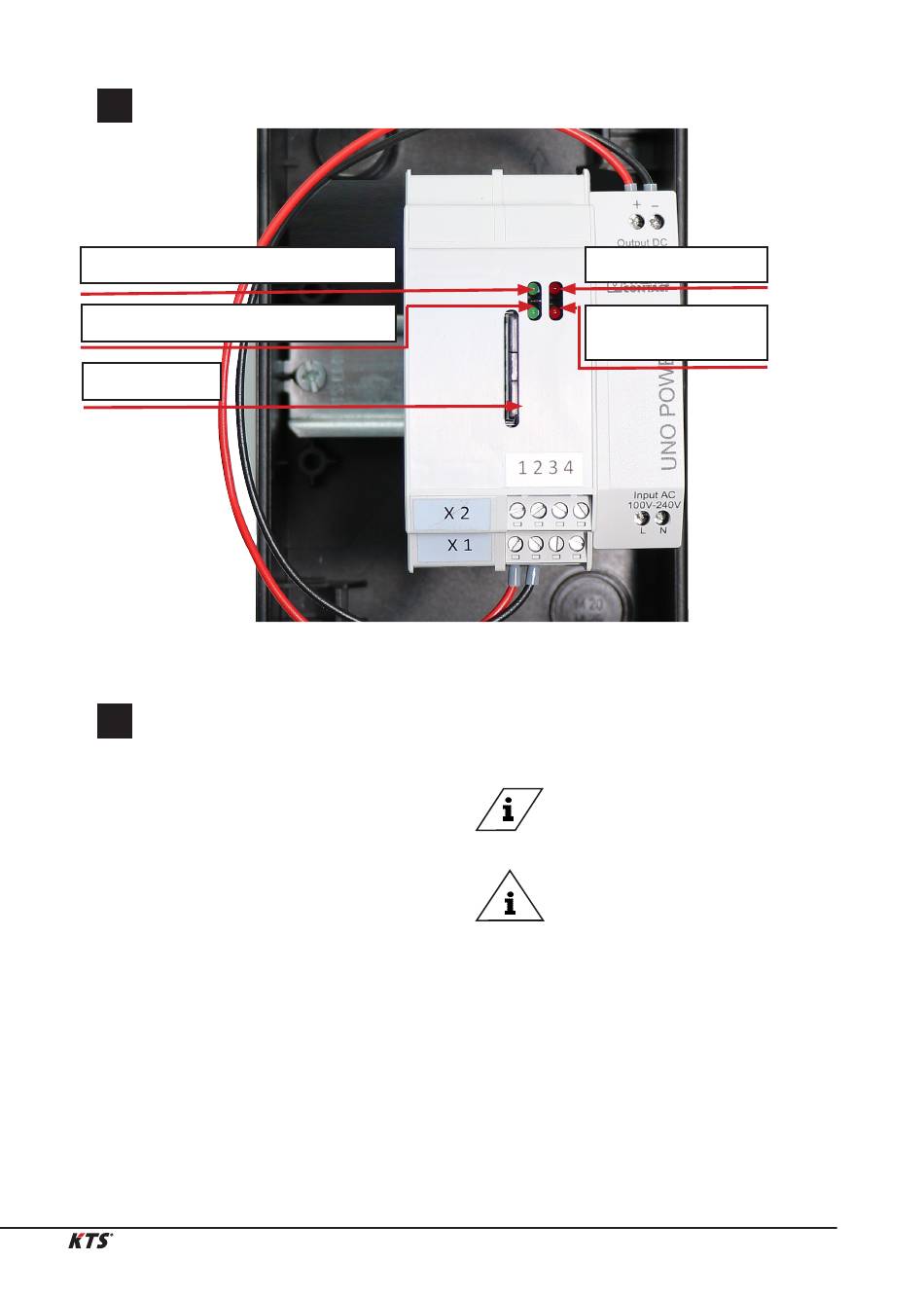

Figure 3 - ComLog LED explanation
© www.kemper-olpe.de – 03.2020 / K410095502001-00 – 17 / 24
red light: electric power
red flashing: SD card
recording
Info!
Save excel files and delete files from SD card.
Note!
The correspondingly con-figured log file in
the DAT format must remain on the SD card;
otherwise the data will not be saved.
