PRODUCT DESCRIPTION

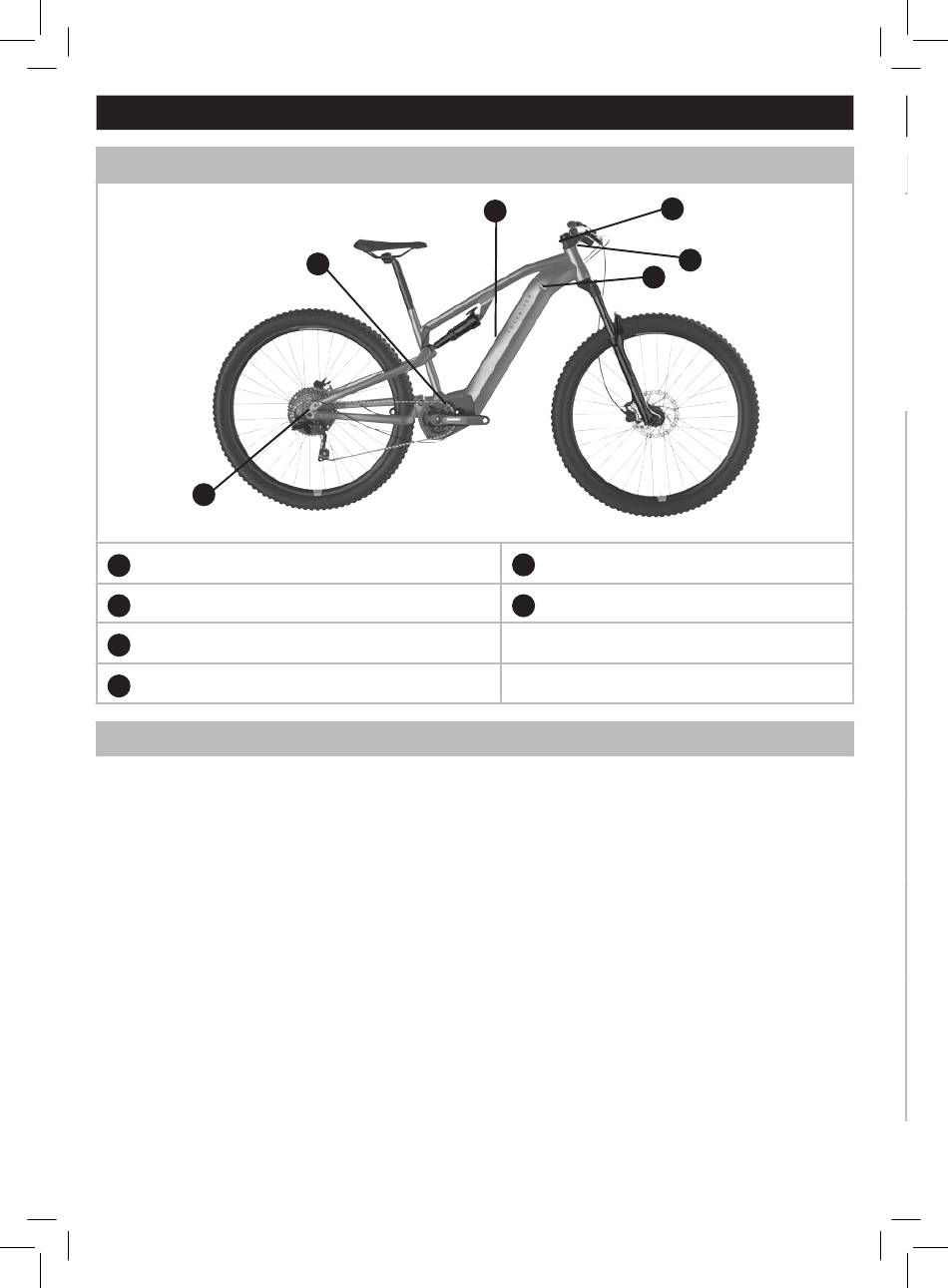

Technical features of e-bike
F
Battery
A
Battery unlocking cylinder
B
Controller and motor
C
Control screen
D
Pedal-assist mode overview
The electrically assisted bicycle can be used with or without assistance by pressing the ON/OFF button and playing
around with the 1/2/3/4 modes. The 1/2/3/4 assistance modes, which you can select in the «D» screen, let you
choose a level of electrical assistance in addition to the effort provided. The electrical assistance will only work if
you pedal with the screen switched on and if one of the 4 modes has been selected. Assistance cuts off when the
speed is above 25km/h. During intensive use and in exceptional weather conditions, the pedal-assist mode may cut
out to safeguard the system. The power supplied is calculated by the "C" controller according to the selected mode.
According to the mode selected, the controller «C» sends more or less current to the motor «C» to provide you with
the desired level oC assistance.
The electrical assistance does not work or shuts down in the following situations:
- Your speed is above 25km/h (+/-10%)
- You're not pedalling
- The remaining charge in the battery is not sufficient
- When the control screen is switched off or disconnected
The electrical assistance may also cut out to protect the system in the event of intensive use and in
exceptional weather conditions
