HOMCOM 301-008 Bedienungsanleitung Seite 8

5
5
M6x20
bolt
6
Foot board
pole
Ø8
cap nut
7
M10x90 bolt
Vehicle body

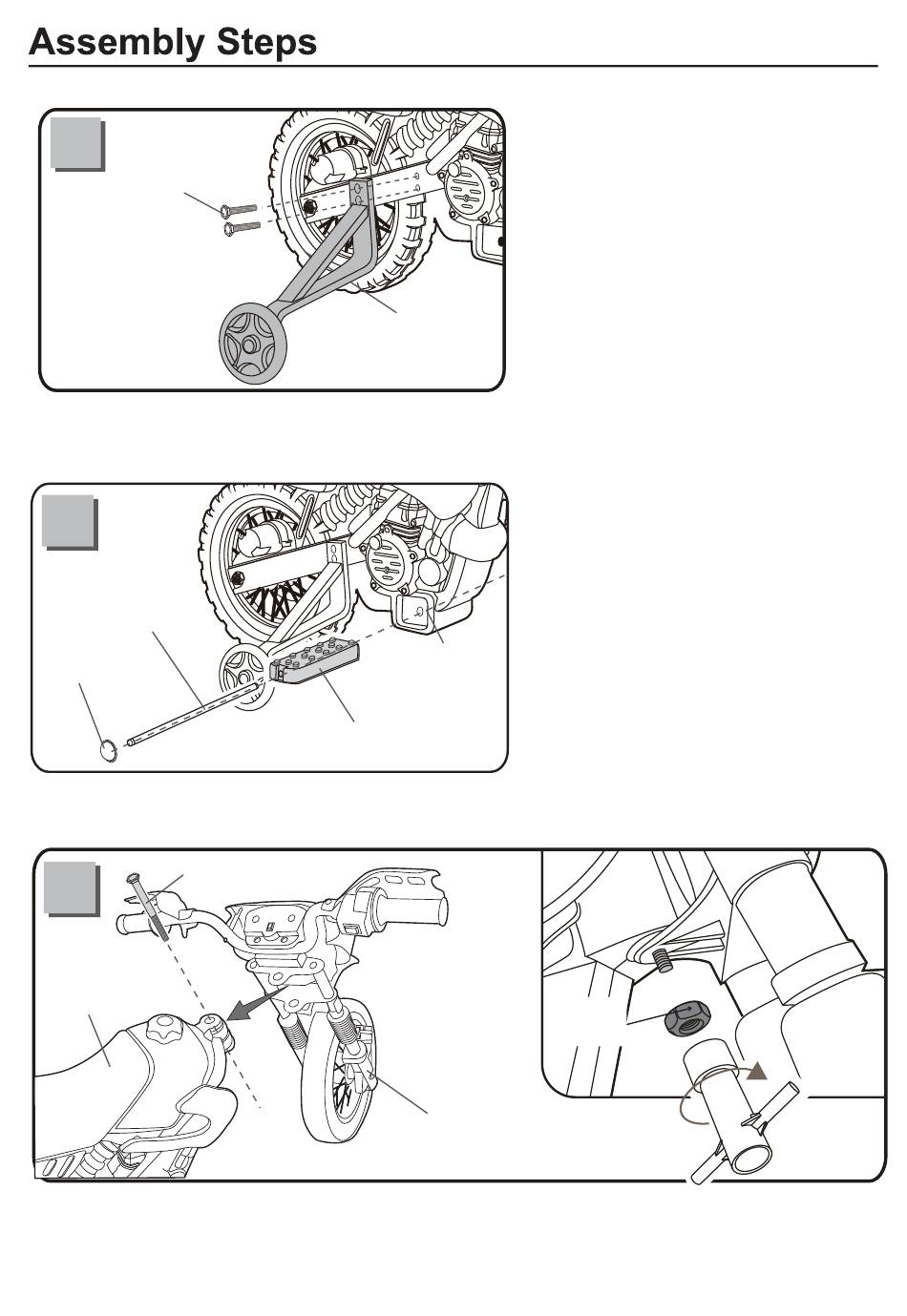

● Fit handle bar to the vehicle body.
● Inerst the M10x90 bolt through the hole in the handle bar assembly and the hole in the vehicle body.
● Tighten the Ø10 locknut with a spanner.
Side wheel
HOLE
Foot board
Handle bar assembly
8
● Fit and hold the side wheel against the
vehicle body.
● Insert two M6x20 bolt
wheel and into the vehicle body.
● Tighten the bolts with a spanner. DO
NOT over tighten.
● Repeat for the other side.
Ø8 cap nut onto the end of the
● Fit a
foot board pole with a hammer.
● Fit and hold the foot board against the
vehicle body. Make sure the foot board
match to the vehicle body.
● Insert the foot board pole through the
hole in the foot board and the hole in the
vehicle body.
● Fit the other foot board onto the foot
board pole.
Ø8 cap nut onto the end
● Fit the other
of the foot board pole with a hammer.
Ø10
locknut
through the side
