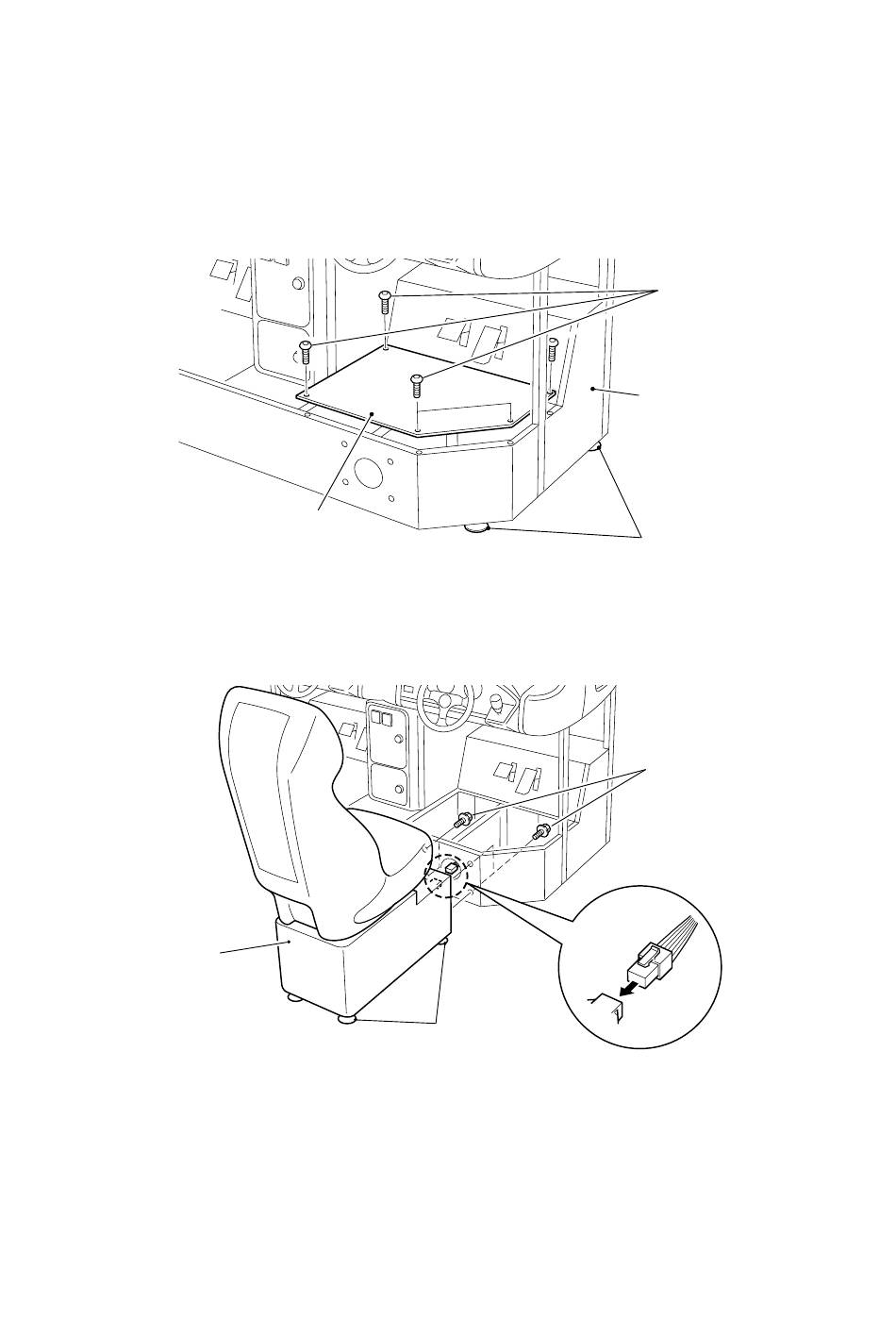

5-3 Fitting the Seat Assemblies
1. Remove 10off security screw (M5x16) and remove both floor plates.
2. Place the Seat Assemblies up to the Monitor Cabinet and set the
adjustable feet so that the seat base is level with the main cabinet.
3. Connect the connectors.
Floor plate (R)
4. Fit the 8off Hex head screws (M8x25), 4 screws per seat, with flat and
spring washers to retain the Seat Assemblies in position.
Seat Assy
5. Refit the floor plates with the 10off security screws (M5x16).
Adjustable Feet
Page 37
Security screw
(M5 x 12)
Cabinet Assy
Adjustable Feet
Hex head screw (M8 x 25)
with Flat/Sring washer
Connector
