5-2 Fitting the Header Assembly

The Header Assembly has a forward centre of gravity, so it is important that at
least two people are used to fit or remove the Header Assembly.
The fitting position of the Header Assembly is very high, and it is important
that a means of reaching the height safely , without stretching, is available
(e.g. steps, step stool etc.)

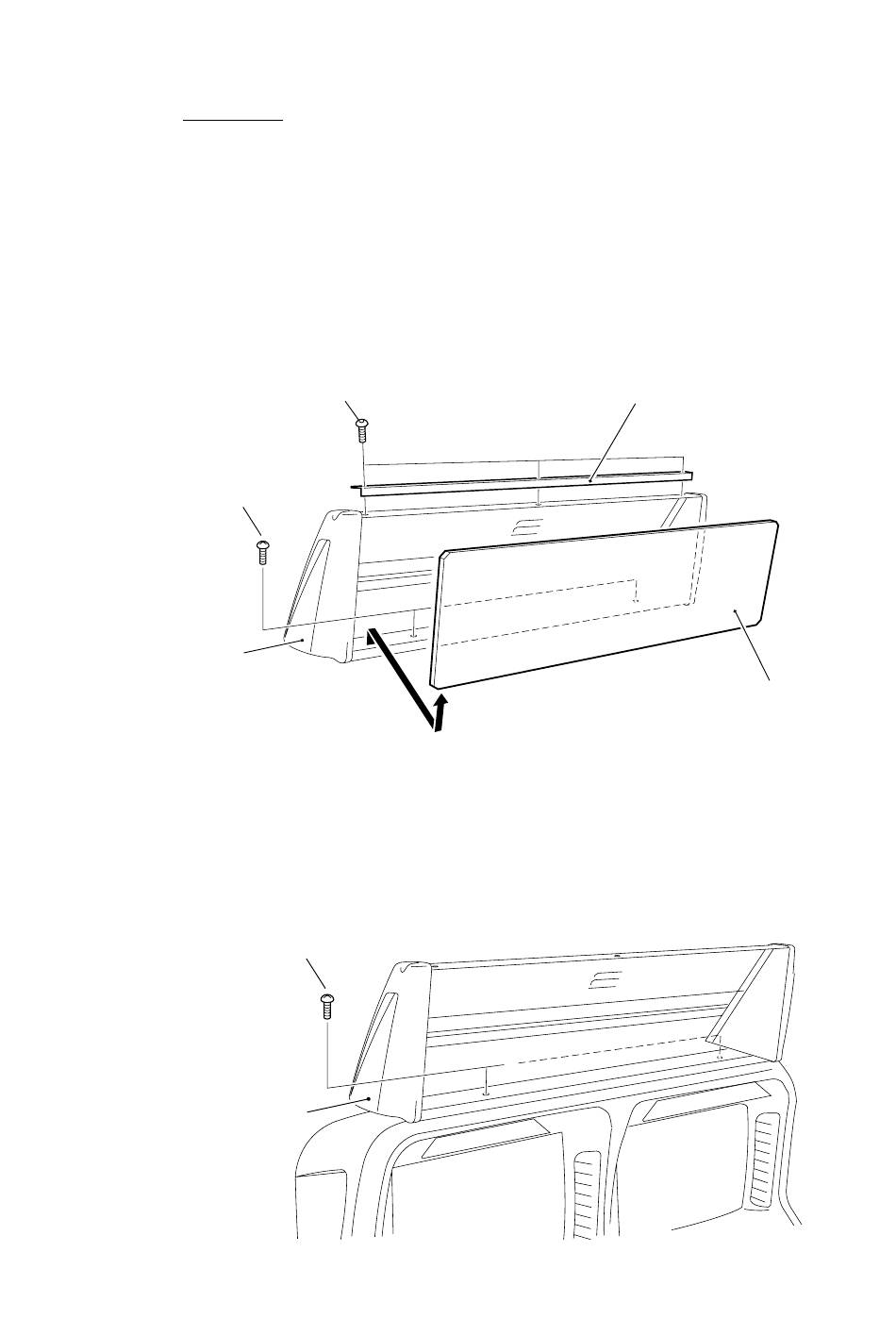

1. Remove 3off security screw (M5x12) and remove the Header Acrylic
Retaining Bracket.
2. Remove the Header Acrylic.
Security screw (M5 x 12)
Pozi head screw
(with flat/spring washers) (M6 x 16)
Header Assy
3. Place the Header Assembly on to the top of the Monitor Cabinet and
connect the connector.
4. Fit 2off Pozi head screws, with flat and spring washer, (M6x16).
Pozi head screw
(with flat/spring washers) (M6 x 16)
Header Assy
Header Acrylic Retaining Bracket
Page 35
Header Acrylic
