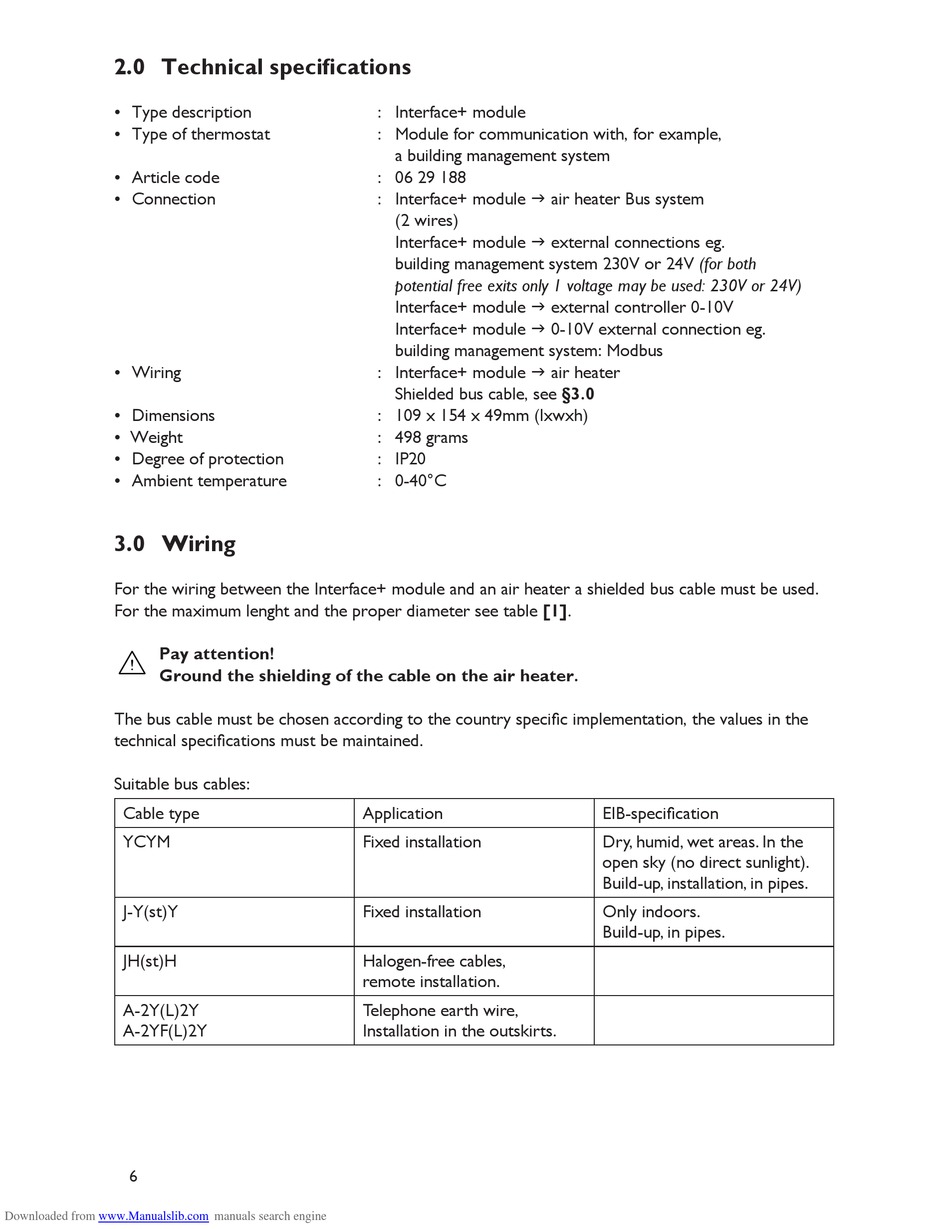

2.0 Technical specifications
• Type description
• Type of thermostat
• Article code
• Connection
• Wiring
• Dimensions
• Weight
• Degree of protection
• Ambient temperature
3.0 Wiring
For the wiring between the Interface+ module and an air heater a shielded bus cable must be used.
For the maximum lenght and the proper diameter see table [1].
Pay attention!
Ground the shielding of the cable on the air heater.
The bus cable must be chosen according to the country specific implementation, the values in the
technical specifications must be maintained.
Suitable bus cables:
Cable type
YCYM
J-Y(st)Y
JH(st)H
A-2Y(L)2Y
A-2YF(L)2Y
6
