ASSEMBLY: PLINTH PANEL (SIDE)

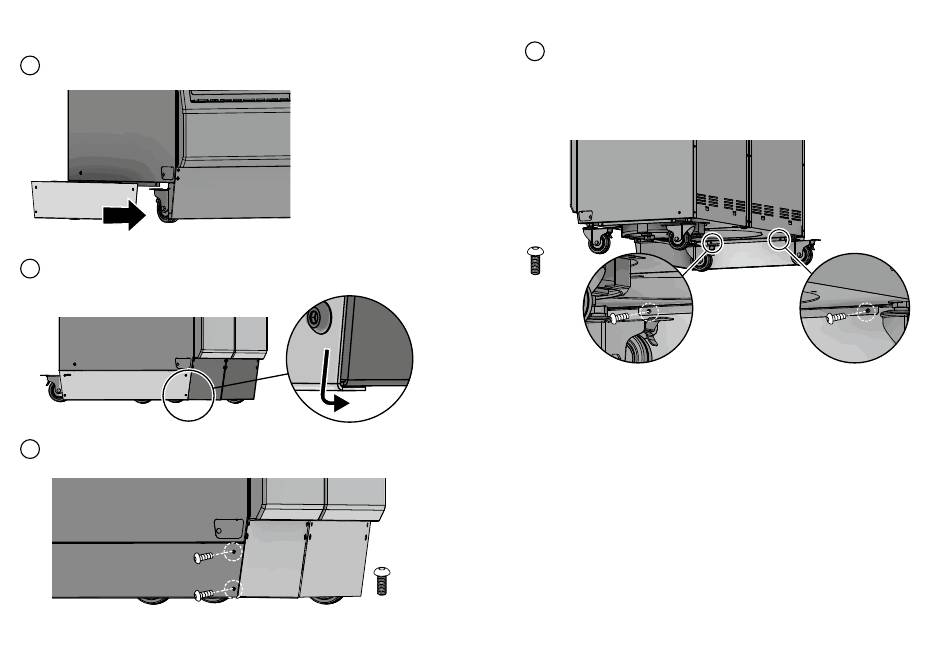

Place the side plinth panel on the side of your GRANT. Make sure that the
1
screw holes are exactly on top of each other.
When fitting, make sure that the lower tab of the side plinth panel fits under
2
the tab of the front plinth panel.
Now screw the plinth panels to the holes on the front side using the two
3
supplied screws.
2x A
16
Use two more screws to fasten the plinth panel to the base plate from the
4
inside.
TIP: The best way to reach the screw holes is to insert the screw through the
cut-out for the gas bottle. To do this, open the door or remove the bottom
drawer if drawers are installed. If access to the screw is obstructed by the
position of the casters, you can turn them to the side to create more space.
2x A
Repeat steps 1-4 on the opposite side. The parts are identical and can be used
on both the left and right.
If you want to fit the plinth panels to a single cabinet, proceed in the same way.
