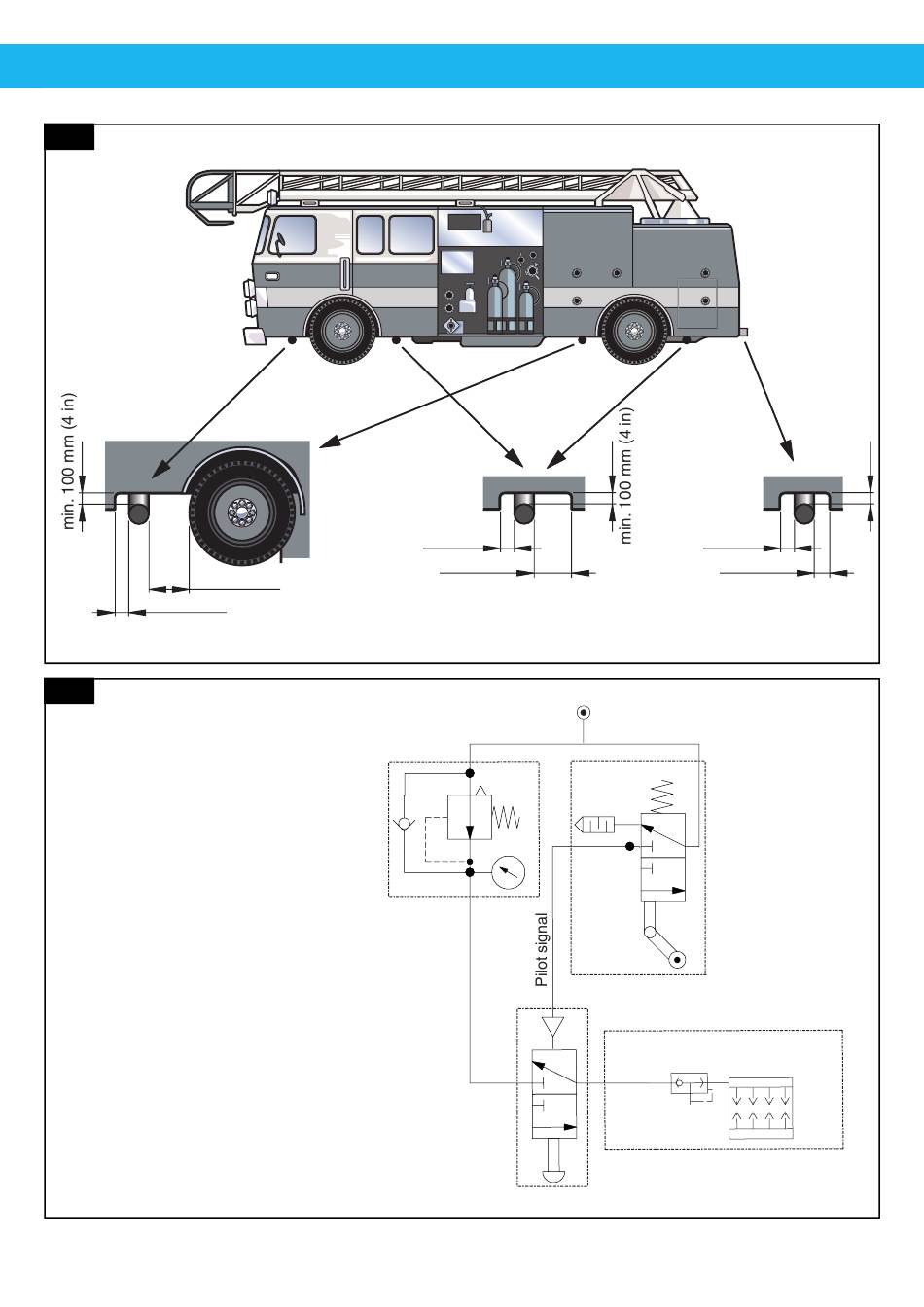

Nederman Pneumatic Track System Bedienungsanleitung Seite 9

5
min. 300 mm (12 in)
min. 100 mm (4 in)
6
Diagram for
compressed air
Pneumatic Track System, Track length 5.9 m or 9.4 m
min. 100 mm (4 in)
min. 300 mm (12 in)
Pressure regulator
1 bar (14.5 psi)
Manual valve
min. 50 mm (2 in)
min. 50 mm (2 in)
6-8 bar (87-116 psi)
Disconnection valve
Air vent
Nozzle kit
Pneumatic nozzle
9
