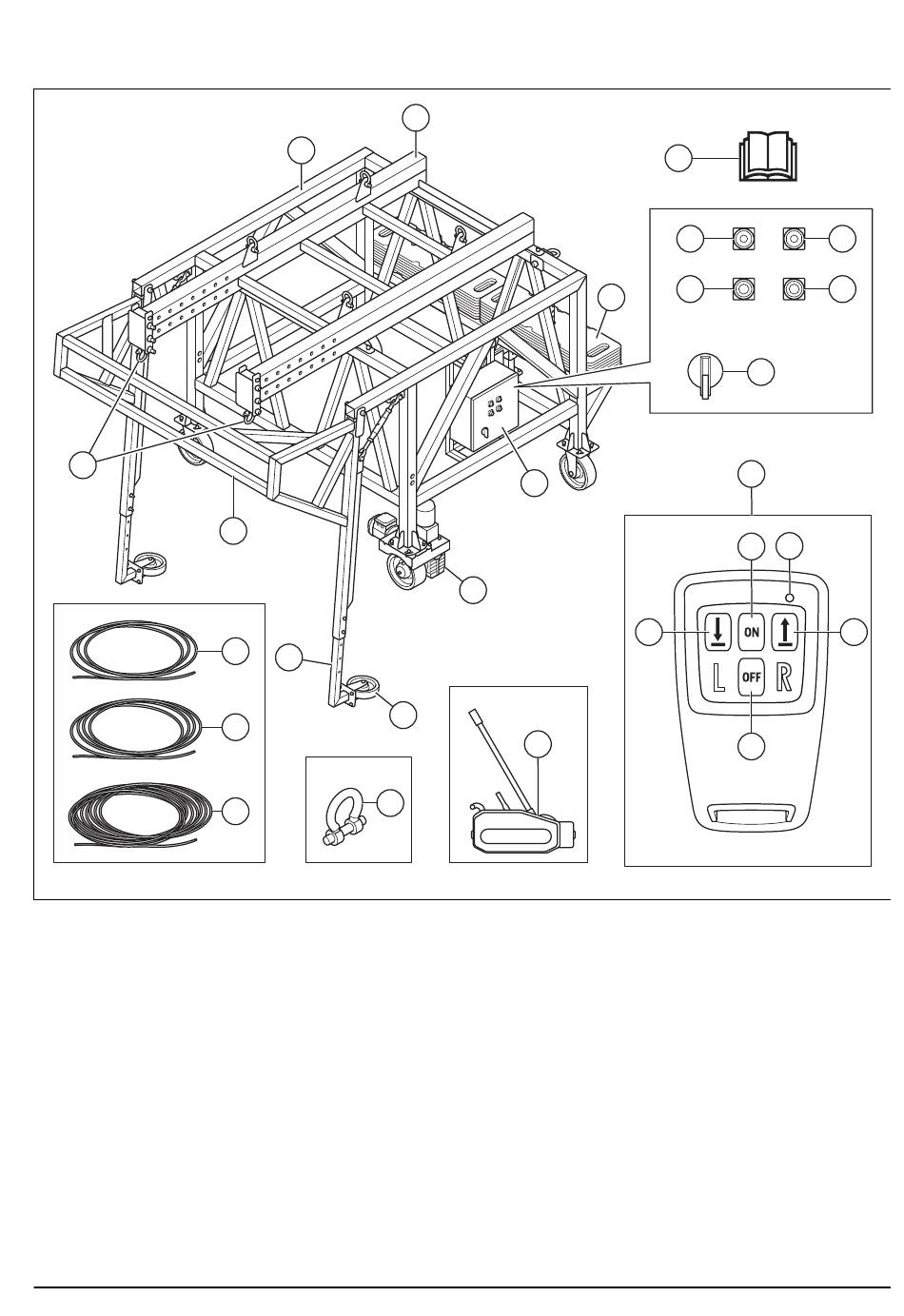

Product overview

9
1. Primary frame
2. Top frame
3. Counterweights
4. Electrical enclosure and control panel
5. Drive unit
6. Support wheels
7. Support leg
8. Support frame
9. Suspensions for steel wire rope
10. ON/OFF switch
11. Green indicator for control voltage
12. Red indicator for phase sequence failure
13. Move left button
14. Move right button
15. Remote control
2157 - 001 - 07.03.2024
1
8
21
7
22
24
23
2
4
5
6
25
16. ON button
17. OFF button
18. LED
19. Move right button
20. Move left button
21. Safety rope ×2, Ø 8 mm, 2 m
22. Safety rope, Ø 8 mm, 3 m
23. Safety rope, Ø 8.4 mm, 25 m
24. Bow shackles 2× HMB 2.0T
25. Safety rope tensioner
26. Operator's manual
26
11
13
3
10
15
16
20
17
12
14
18
19
3
