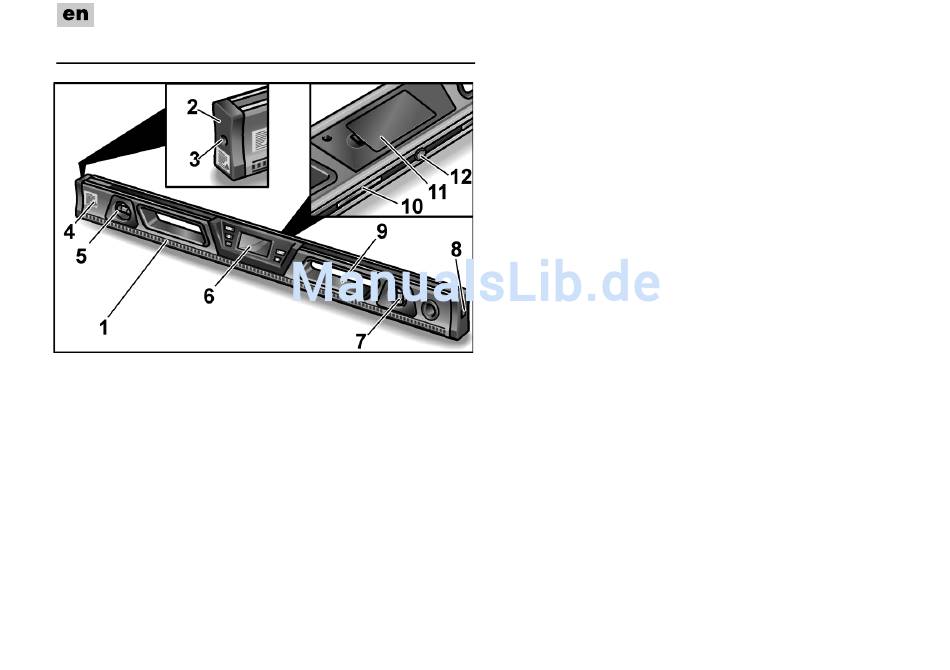

Overview

1 Housing
2 Sealing cap
3 Laser discharge window
Laser beam for virtual extension
of the contact surface.
Note: The laser beam has an offset
of 30 mm to the contact surface.
4 Laser warning sign
5 Horizontal bubble tube
6 Control panel
7 Vertical bubble tube
8 On/Off switch for laser
9 Finger holes (ADL 60 and ADL 120 only)
10 Contact surface with magnets
11 Battery compartment
12 ¼" thread
13 Protective pouch (not illustrated)
