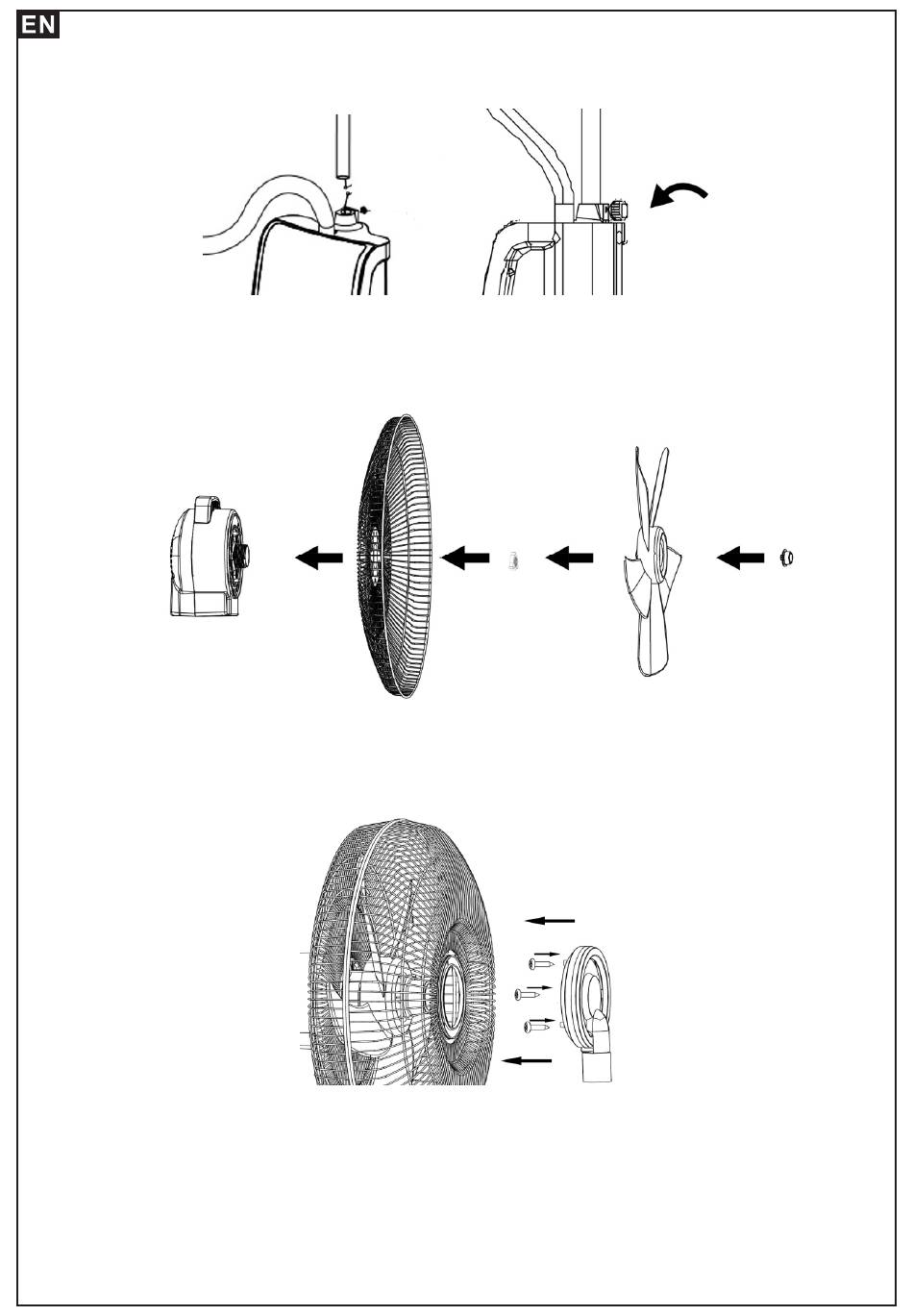

Step3: Connect Main Holder (12) with plug-in terminals well, then install support pole into
body and screw it with Holder Fixed Screw (13).
Step4: Install the rear guard (6)(7) on the motor then use guard lock (5) to fasten.
Step5: Install the fan leaf (4) onto the motor axis, then screw it anticlockwise.
Step6: Install mist outlet (1) on the front guard (2) with screws.
