Jumper settings

The clock frequency of the processor is set automatically.
i

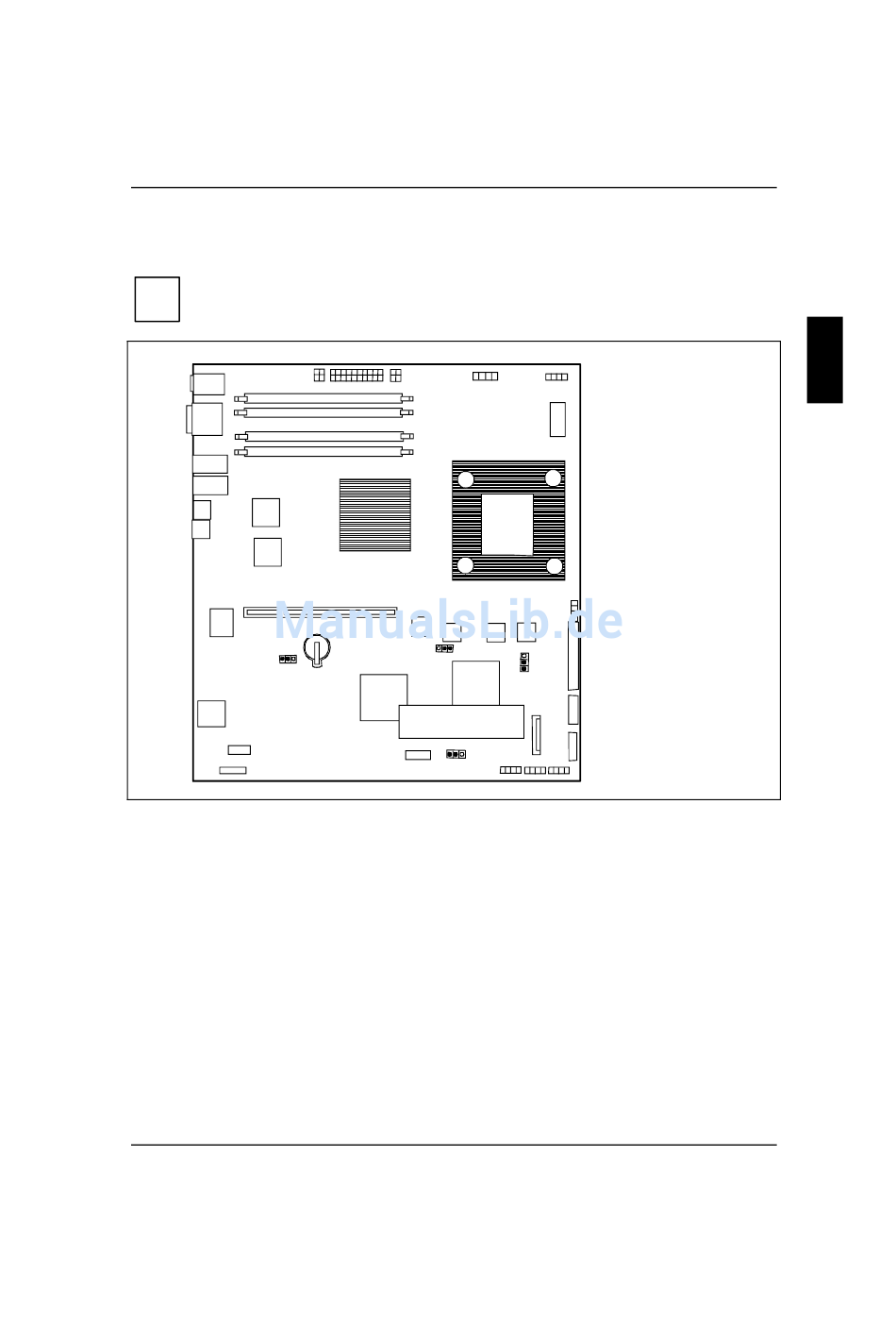

JP1
JP1 = Clear CMOS
JP2 = LOGO

Clear CMOS - jumper JP1

Normal (default)
1-2
2-3 CMOS settings are cleared

LOGO - jumper JP2

FSC (default)
1-2
2-3 FJ
A26361-D1571-Z120-1-7419, edition 2
JP4
JP2
JP3
JP3 = Power-on
JP4 = Boot block
Jumper settings
