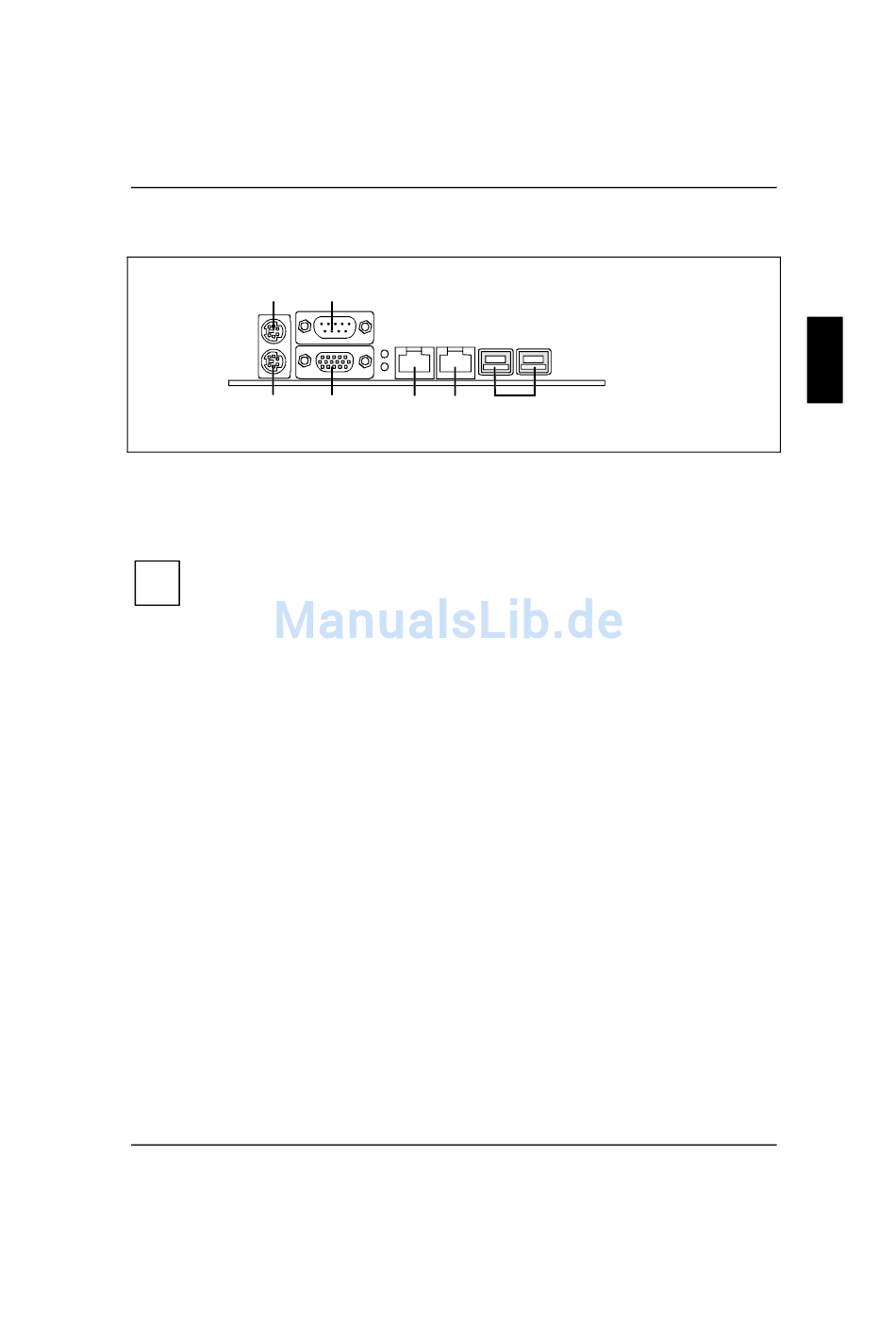

External ports
1
7
1 = PS/2 mouse connector
2 = serial interface COM1
3 = USB ports
4 = LAN connector B (10/100/1000 MBps)
Serial interface COM1: default setting is "disabled"
i
(you will find further information in the "D1571 Setup Utility" description)

Temperature / system monitoring

Temperature and system monitoring aim to reliably protect the computer hardware against damage
caused by overheating. In addition, any unnecessary noise is also prevented by reducing the fan
speed, and information is provided about the system status.
The temperature and system monitoring are controlled by an onboard controller developed by
Fujitsu Siemens.
The following functions are supported:
Temperature monitoring:
Measurement of the processor temperature, measurement of the ambient temperature by a
temperature sensor on the LED board.
Fan monitoring:
Fans that are no longer available, blocked or sticky fans are detected.
Fan control:
The fans are regulated according to temperature.
Sensor monitoring:
The removal of, or a fault in, a temperature sensor is detected. Should this happen all fans
monitored by this sensor run at maximum speed, to achieve the greatest possible protection of the
hardware.
Voltage monitoring:
When voltage exceeds warning level high or falls below warning level low an alert will be generated.
A26361-D1571-Z120-1-7419, edition 2
2
6 5 4
5 = LAN connector A (10/100/1000 MBps)
6 = VGA port
7 = PS/2 keyboard connector
3
Features
English - 5
