Kurzbeschreibung | Shortdescription Mainboard Mainboard D2950...
Seite 2
... any technical problems or other questions you would like to discuss? Please contact: • our Service Desk • your Sales Partner • your Sales Office The latest information and updates (e. g. BIOS update) for our mainboards can be found on the Internet at: "http://ts.fujitsu.com"...
Seite 5

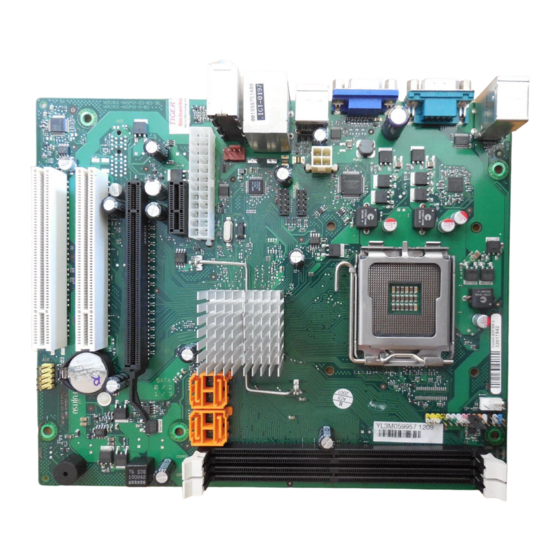

Mainboard D2950 - Internal connectors and slots FAN1 COM1 CPU LGA775 Super I/O Power Supply 2 Port 2/3 USB Port 6/7 USB Port 8/9 USB Port 4/5 MCP73PV Audio FAN2 SATA 2 SATA 3 Power Supply SATA 0 SATA 1...
Seite 6
+ / – 10% 0.01 A Main Power Supply + 5 V + / – 5 % 4.2 A + 3.3 V +/ – 5 % 0.54 A Aux. Power Supply + 5 V +/ – 5 % 0.55 A A26361-D2950-Z210-1-8N19, edition 1...
Die Position der externen Anschlüsse Ihres Mainboards finden Sie am Anfang des Handbuches. PS/2-Tastaturanschluss, violett PS/2-Mausanschluss, grün (optional) (optional) LAN-Anschluss (RJ-45) Mikrofonanschluss, rosa Audioeingang (Line in), hellblau USB – Universal Serial Bus, schwarz Audioausgang (Line out), hellgrün VGA, blau Serielle Schnittstelle, türkis A26361-D2950-Z210-1-8N19, Ausgabe 1 Deutsch - 1...
Sind ein oder mehrere Federkontakte verbogen, setzen Sie auf keinen Fall den Prozessor ein, da dieser dadurch beschädigt werden könnte. Wenden Sie sich bitte direkt an Ihren zuständigen Händler 2 - Deutsch A26361-D2950-Z210-1-8N19, Ausgabe 1...
Seite 9
Der Steckplatz für Prozessor ist zum Schutz der Federkontakte mit einer Schutzkappe abgedeckt. Im Garantiefall kann das Mainboard nur mit befestigter Schutzkappe von Fujitsu Siemens Computers zurück genommen werden! ► Entfernen Sie den Kühlkörper. ► Drücken Sie auf den Hebel und haken Sie ihn aus.
Diese Erweiterungskarten benötigen bis zu vier PCI-Interrupts: INT A, INT B, INT C, INT D. Wie viele und welche dieser Interrupts verwendet werden, entnehmen Sie der mitgelieferten Dokumentation der Karte. Die Zuordnung der PCI-Interrupts zu den IRQ Lines finden Sie in der folgenden Tabelle: 4 - Deutsch A26361-D2950-Z210-1-8N19, Ausgabe 1...
Seite 11
Sharing benutzen müssen, überprüfen Sie, ob die Erweiterungskarte IRQ Sharing mit den anderen Geräten auf dieser PCI IRQ Line einwandfrei unterstützt. Auch die Treiber aller Karten und Komponenten an dieser PCI IRQ Line müssen IRQ Sharing unterstützen. A26361-D2950-Z210-1-8N19, Ausgabe 1 Deutsch - 5...
BIOS-Update Wann sollte ein BIOS-Update durchgeführt werden? Fujitsu Technology Solutions stellt neue BIOS-Versionen zur Verfügung, um die Kompatibilität zu neuen Betriebssystemen, zu neuer Software oder zu neuer Hardware zu gewährleisten. Außerdem können neue BIOS-Funktionen integriert werden. Ein BIOS-Update sollte auch immer dann durchgeführt werden, wenn ein Problem besteht, das sich durch neue Treiber oder neue Software nicht beheben lässt.
PS/2 mouse port, green (optional) LAN port (RJ-45) Microphone port, pink Audio input (Line in), light blue USB – Universal Serial Bus, black Audio output (Line out), light green VGA, blue Serial interface, turquoise A26361-D2950-Z210-1-8N19, edition 1 English - 1...
If one or more spring contacts are bent, on no account insert the processor as it may be damaged by doing so. Please contact the responsible vendor. 2 - English A26361-D2950-Z210-1-8N19, edition 1...
Seite 15
The processor socket is covered with a protective cap to protect the spring contacts. In the event of a warranty claim, the mainboard can only be taken back by Fujitsu Siemens Computers with the protective cap secured! ► Remove the heat sink.
These expansion cards require up to four PCI interrupts: INT A, INT B, INT C, INT D. How many and which of these interrupts are used is specified in the documentation provided with the card. The assignment of the PCI interrupts to the IRQ Lines is shown in the following table: 4 - English A26361-D2950-Z210-1-8N19, edition 1...
Seite 17
PCI/PCI Express slot with IRQ sharing, check whether the expansion card properly supports IRQ sharing with the other devices on this PCI IRQ Line. The drivers of all cards and components on this PCI IRQ Line must also support IRQ sharing. A26361-D2950-Z210-1-8N19, edition 1 English - 5...
BIOS Update When should a BIOS update be carried out? Fujitsu Technology Solutions makes new BIOS versions available to ensure compatibility with new operating systems, new software or new hardware. In addition, new BIOS functions can also be integrated. A BIOS update should also always be carried out when a problem exists that cannot be solved with new drivers or new software.
