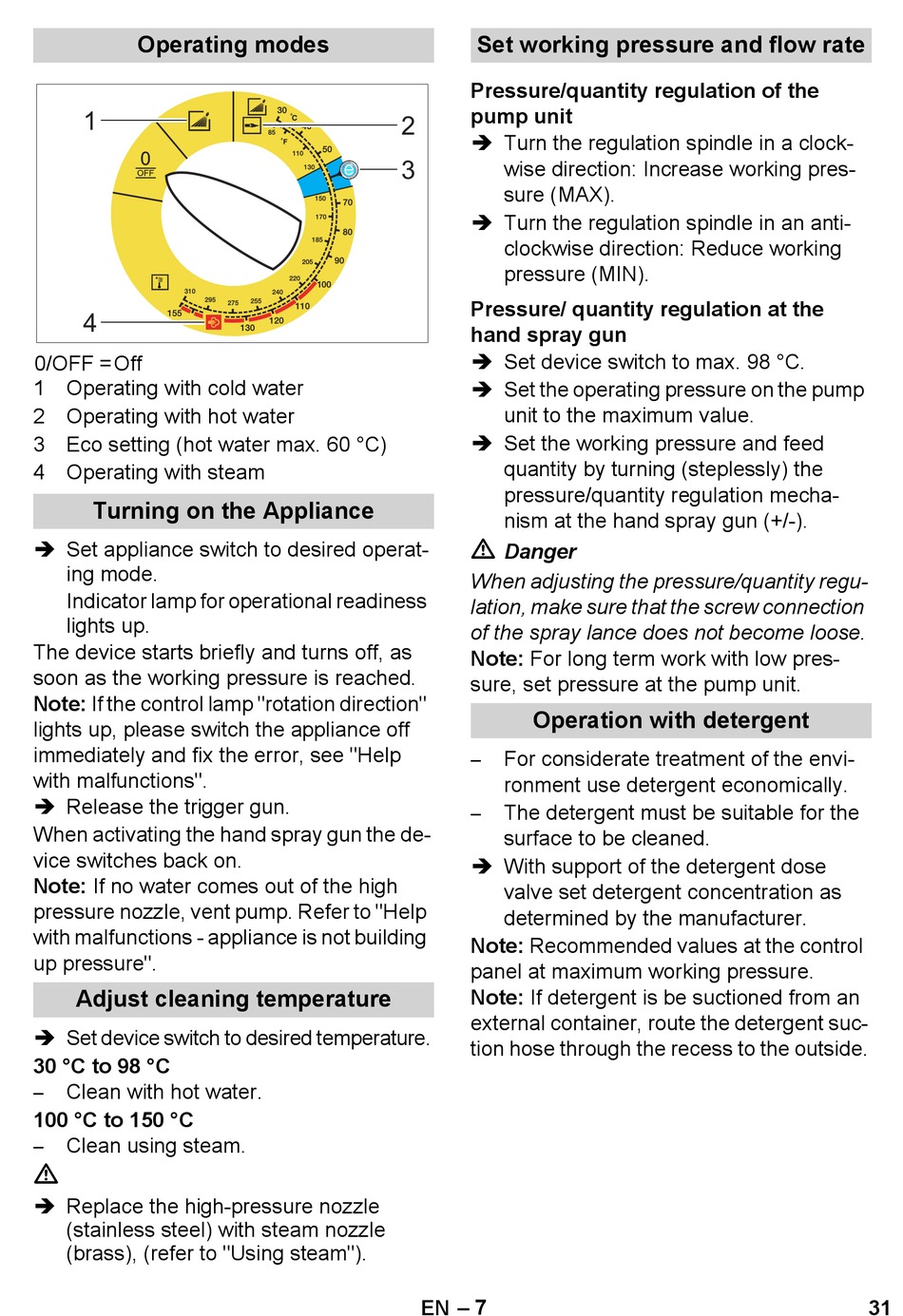

Operating modes

1
4
0/OFF = Off
1 Operating with cold water
2 Operating with hot water
3 Eco setting (hot water max. 60 °C)
4 Operating with steam

Turning on the Appliance

 Set appliance switch to desired operat-
ing mode.
Indicator lamp for operational readiness
lights up.
The device starts briefly and turns off, as
soon as the working pressure is reached.
Note: If the control lamp "rotation direction"
lights up, please switch the appliance off
immediately and fix the error, see "Help
with malfunctions".
 Release the trigger gun.
When activating the hand spray gun the de-
vice switches back on.
Note: If no water comes out of the high
pressure nozzle, vent pump. Refer to "Help
with malfunctions - appliance is not building
up pressure".
Adjust cleaning temperature
 Set device switch to desired temperature.
30 °C to 98 °C
Clean with hot water.
–
100 °C to 150 °C
Clean using steam.
–
 Replace the high-pressure nozzle
(stainless steel) with steam nozzle
(brass), (refer to "Using steam").
Set working pressure and flow rate
Pressure/quantity regulation of the
pump unit
2
 Turn the regulation spindle in a clock-
wise direction: Increase working pres-
3
sure (MAX).
 Turn the regulation spindle in an anti-
clockwise direction: Reduce working
pressure (MIN).
Pressure/ quantity regulation at the
hand spray gun
 Set device switch to max. 98 °C.
 Set the operating pressure on the pump
unit to the maximum value.
 Set the working pressure and feed
quantity by turning (steplessly) the
pressure/quantity regulation mecha-
nism at the hand spray gun (+/-).
Danger
When adjusting the pressure/quantity regu-
lation, make sure that the screw connection
of the spray lance does not become loose.
Note: For long term work with low pres-
sure, set pressure at the pump unit.
Operation with detergent
For considerate treatment of the envi-
–
ronment use detergent economically.
The detergent must be suitable for the
–
surface to be cleaned.
 With support of the detergent dose
valve set detergent concentration as
determined by the manufacturer.
Note: Recommended values at the control
panel at maximum working pressure.
Note: If detergent is be suctioned from an
external container, route the detergent suc-
tion hose through the recess to the outside.
