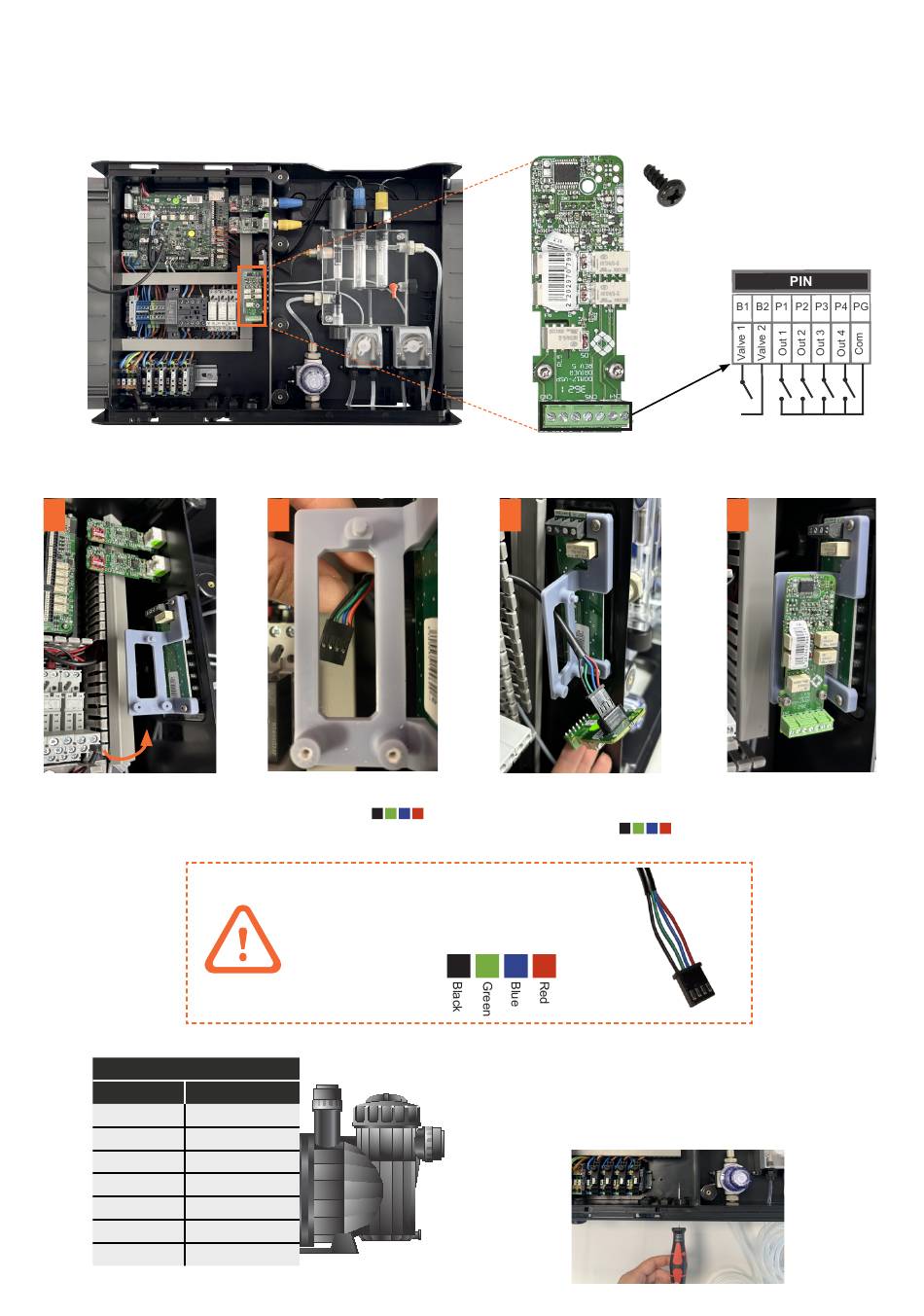

4) VSP driver installation (optional accessory)
The VSP (variable speed pump) driver enables the Filtering function.
Once the VSP driver has been installed, multiple speeds (S1, S2, S3) can be set in R1.
1
Open cable channel to access
the VSP cable
COMPATIBLE VSP MODELS
MANUFACTURER
ASTRAL Victoria+ Silent Vs
ZODIAC
Eco Touch-pro II
BADU
Easyfit Eco
BADU
BADU Prime/bronze Eco Vs
DAB
HAYWARD Vstd Max Flo
2
PIN
Locate the VSP cable and
position it as shown in the photo
PG Com
(red on the right)
P4 Out 4
P3 Out 3
ATTENTION:
P2 Out 2
The cable must be connected with the
P1 Out 1
orientation shown to ensure the equipment
B2 Valve 2
functions properly.
B1
Valve 1
MODEL
Flopro VS
E. Swim
Contents
B1 PG
3
Connect the VSP driver pins
to the VSP cable. Make sure
the connector and pins are
positioned correctly
To connect the VSP driver to the
pump, the connecting cables must
be passed through the feedthroughs
at the bottom of the equipment.
123
123
1
0% S1 S2 S3
54
B1 PG
x2
VSP:
Valve
Variable speed pump
0%, S1,S2,S3
4
123
Tighten the two screws
and press at the top of
the driver to secure it and
close the cable channel
ELI12
90
90%
