Instructions For Use Magnifier Luminaire RLLQ 63 (R) „RING LED"
ENG

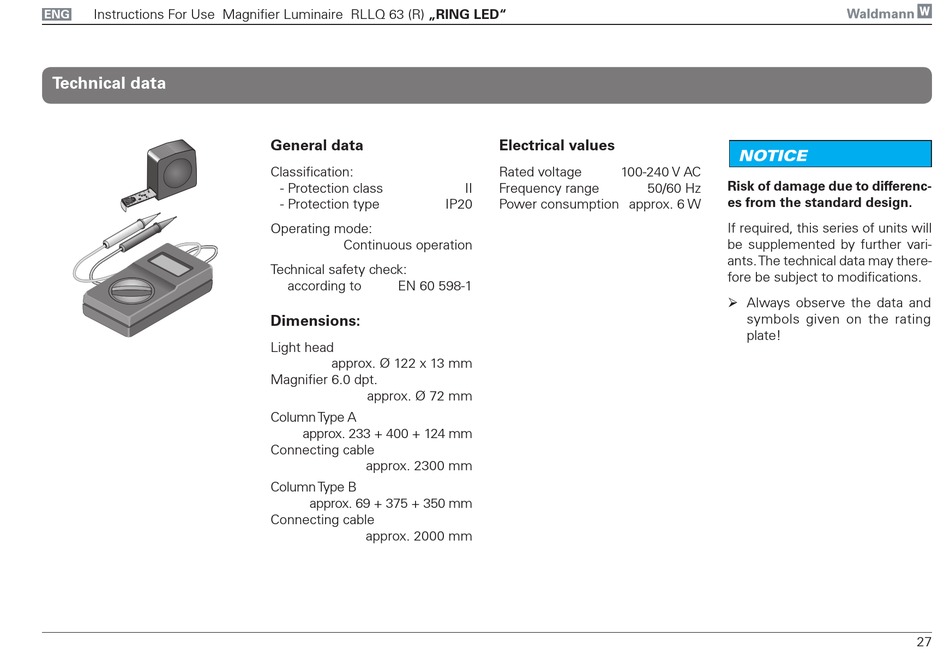

Technical data

General data

Classification:
- Protection class
- Protection type IP20
Operating mode:
Continuous operation
Technical safety check:
according to EN 60 598-1
Dimensions:
Light head
approx. Ø 122 x 13 mm
Magnifier 6.0 dpt.
approx. Ø 72 mm
Column Type A
approx. 233 + 400 + 124 mm
Connecting cable
approx. 2300 mm
Column Type B
approx. 69 + 375 + 350 mm
Connecting cable
approx. 2000 mm

Electrical values

Rated voltage 100-240 V AC
II Frequency range
Power consumption approx. 6 W
CAUTION
Risk of damage due to differenc-
50/60 Hz
es from the standard design.
If required, this series of units will
be supplemented by further vari-
ants. The technical data may there-
fore be subject to modifications.
¾ Always observe the data and
symbols given on the rating
plate!
27
