ES Steering Wheel
02

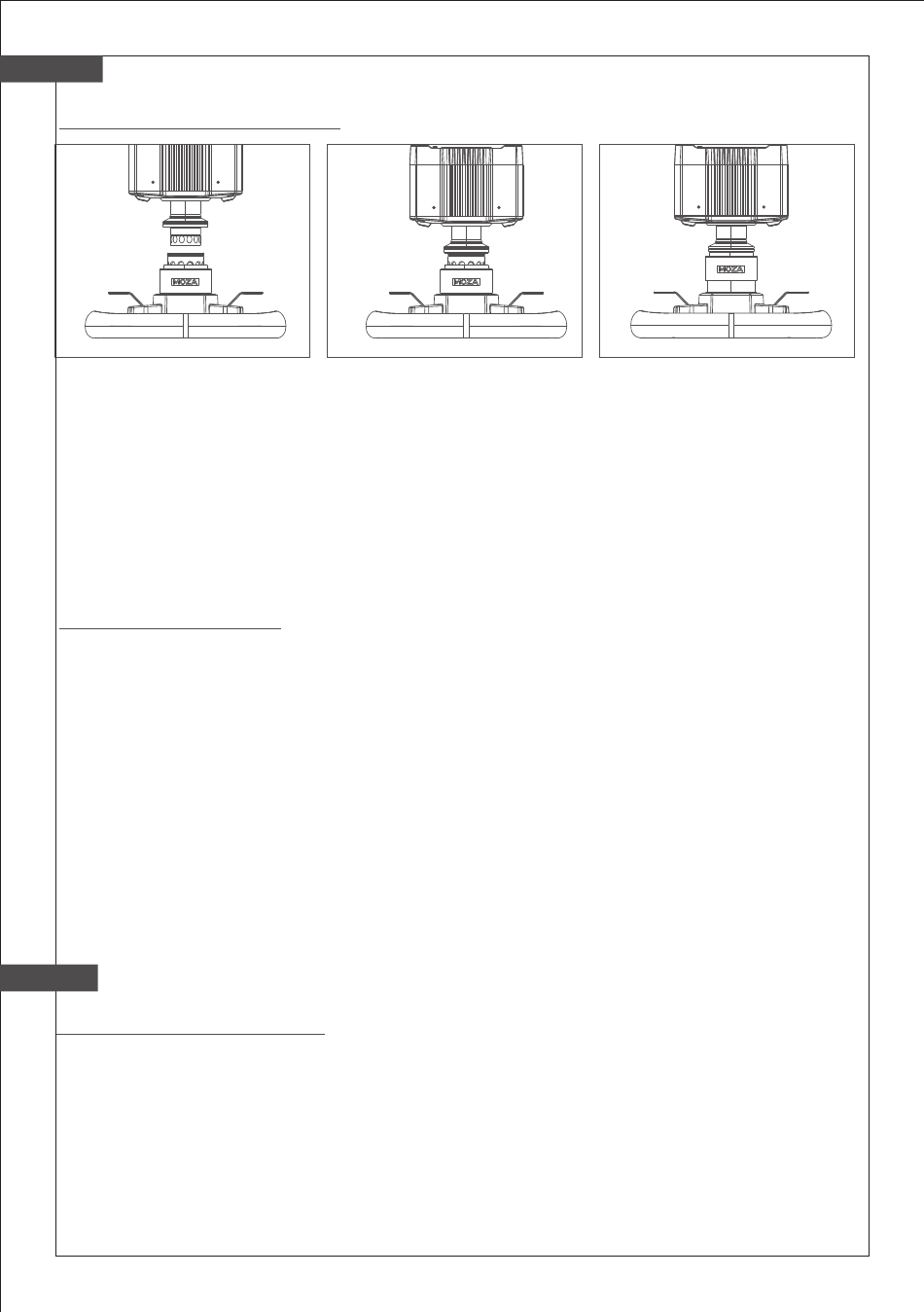

Quick Release Instructions
1. Align the 6 steel balls on the steering wheel with the 6 grooves on the wheelbase.
2. Press the wheel into the wheelbase, keeping the balls aligned with each other.
3. The quick release will automatically snap into place, locking the wheel to the base. If the
quick release does not lock, try rotating the panel on the base to its default position, and
try again until it locks correctly.
4. To remove the wheel from the base, simply use two hands to pull back on the outer ring
(black color) and pull the wheel out at the same time.
Wheel Configuration
Using MOZA Pit House, our software suite, the ES steering wheel can easily be set up and
configured to your liking.
· Joystick Mode: Can be configured as buttons or keys.
· Indicator Light Switch: Allows for switching the indicator light off, on, or specific speed
settings.
· Indicator Light Display Mode: Divided into two modes, toggled in the MOZA Pit house
suite.
· Speed Adjustment: Adjustable according to speed and the timing of the shift indicator
light, with different presets available.
· Brightness Adjustment: Allows for adjusting of the brightness of the shift indicator.
SR-P Lite Racing Pedals
03
Pedal Installation Process
1. Install the pedals onto the included footrest using the mounting holes. Use a 2.5mm
hexagon wrench to fix the M4*10 screws into the footrest. To ensure stability and that the
pedals will remain secure, it is recommended to use all four screws and install firmly.
2. Connect the pedal wires to the corresponding included interface, using the wire clip
under the pedal base to clamp the wires, preventing them from coming loose or interfer-
ing with product use.
