Positioning air duct components

• Check that the plates A are still in the position illustrated
in fig. 18A Make sure the cut-outs in the plates are hooked
over the self-tapping screws in the feet of the front burner,
as circled in fig. 18A.This is important otherwise the unit
will not fit!
• If necessary, see table on page 28: fit the inlet guides
(diagonals) as indicated in fig. 18B and 18C with the pins in
the slots of plates A, as circled in fig. 18B.
• Then fit the air duct dividers B and C, as shown in figs.
18B, 18C and 18D. Again the pins should fit into the slots,
as circled in figs. 18B and 18D. Make sure the dividers lie
as illustrated in fig. 18D so that they connect to the
burners at the points indicated by the arrows in fig. 18B.
• Now fit the grid E as shown in figs. 18D and E.

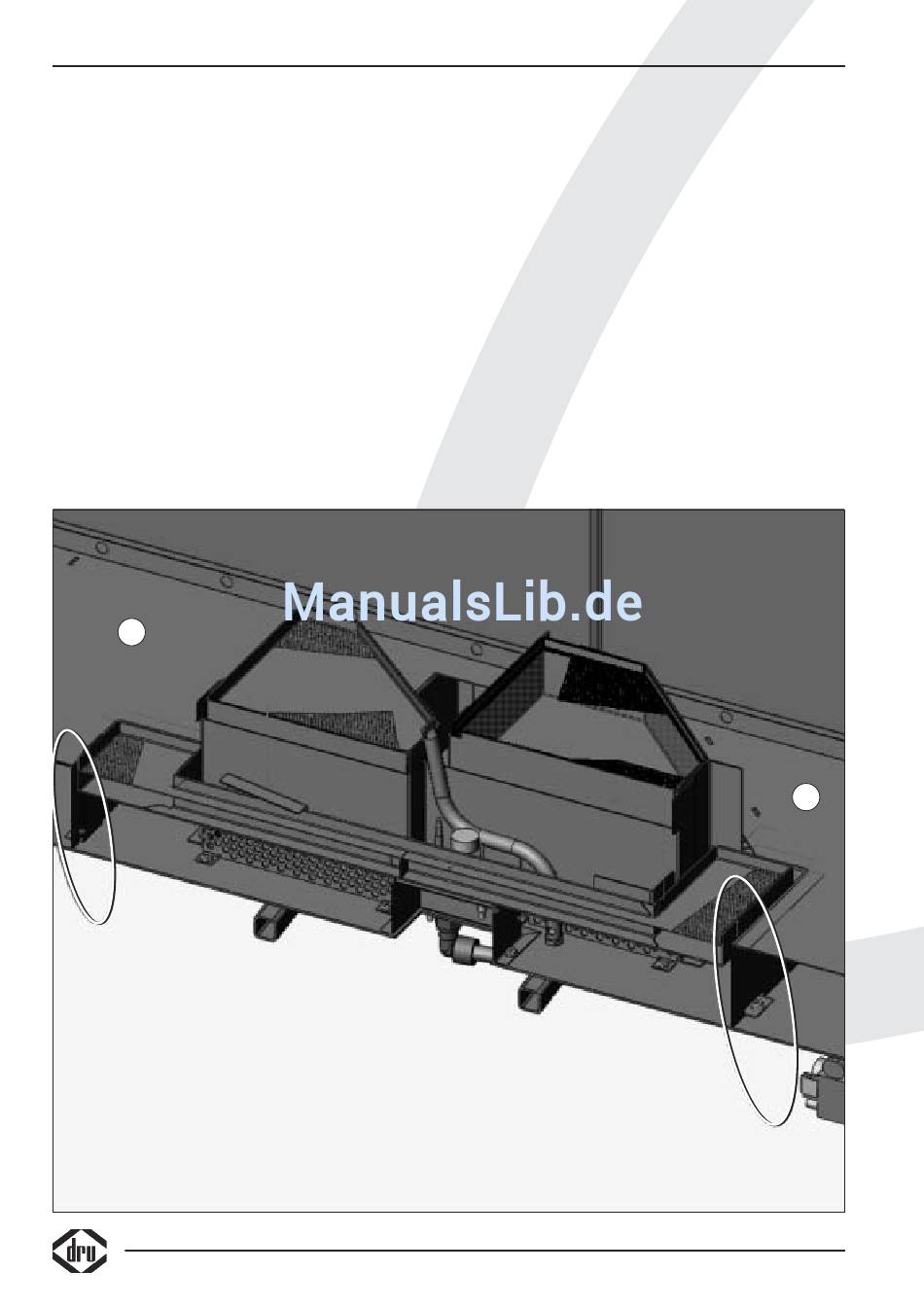

A
fig. 18A
30
A
