5. Transport and start up
5.1 Transport and installation
The machine is designed to operate in closed rooms and must
be placed stable on firm and levelled surface. The machine can
be bolted down if required.
For packing reasons the machine is not completely assembled.
5.2 Assembly
If you notice any transport damage while unpacking, notify
your supplier immediately. Do not operate the machine!
Dispose of the packing in an environmentally friendly manner.
Clean all rust protected surfaces with a mild solvent.

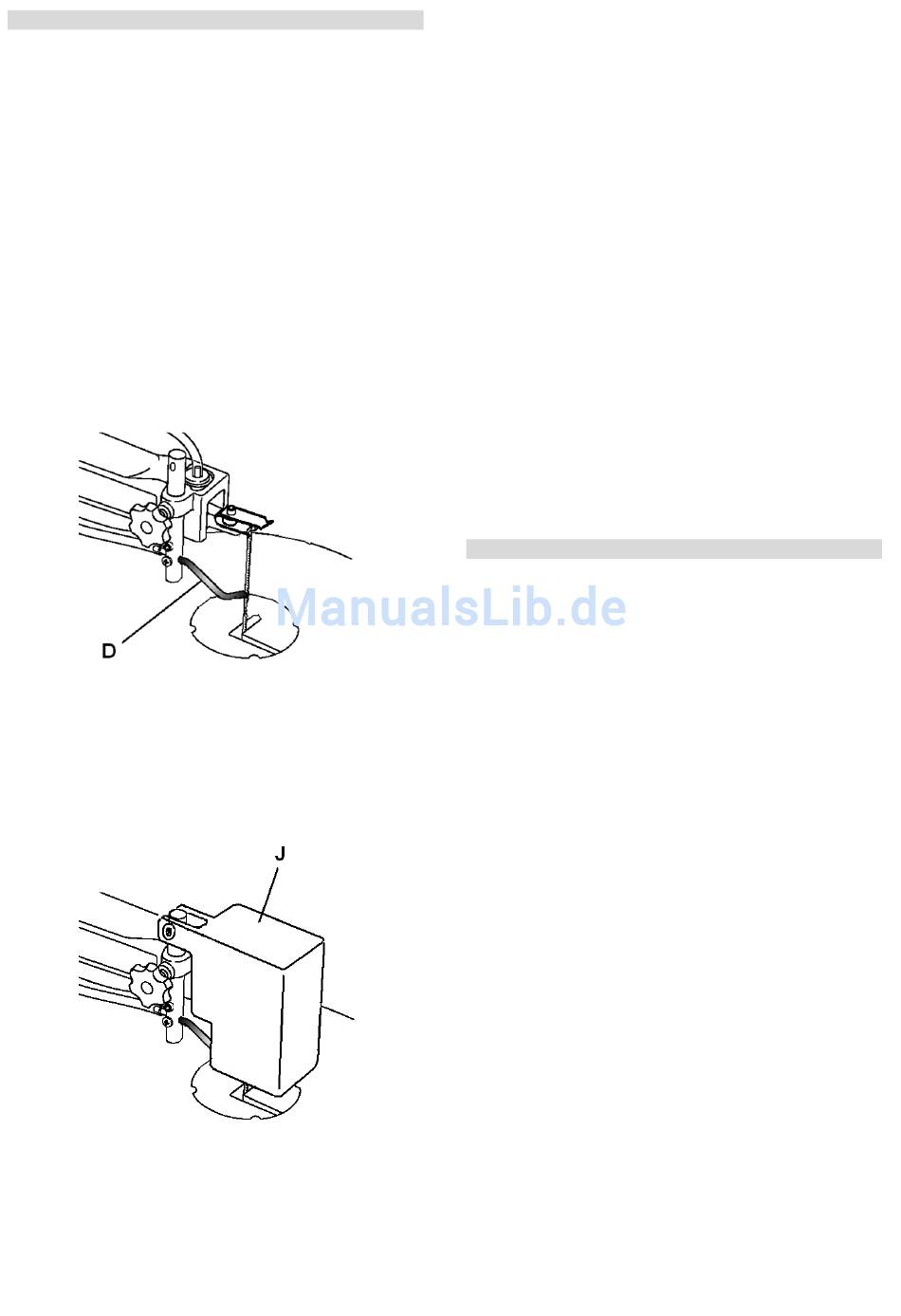

Mounting the sawdust blower:
Mount the sawdust blower (D, Fig 3) and point it towards the
cutting area.
The sawdust blower keeps the work area clean.
Mounting the transparent blade guard:
Mount the transparent sawguard guard (J) to the vertical guide
rod.
Note:
During machine operation the sawguard must always be
lowered to the workpiece
Fig 3
Fig 4
5.3 Dust connection
The machine has a 35mm dust port (N, Fig 2) where it can be
connected to a dust extractor.
5.4 Mains connection
Mains connection and any extension cords used must comply
with applicable regulations.
The mains voltage must comply with the information on the
machine licence plate.
The mains connection must have a 10A surge‐proof fuse.
Only use power cords marked H05VV‐F
Connections and repairs to the electrical equipment may only
be carried out by qualified electricians.
5.5 Starting operation
You can start the machine with the ON/ OFF button.
The machine has variable speed 550‐ 1600 SPM for cutting
various materials.
With the variable speed control knob (P) the cutting speed can
be chosen.
6. Machine operation
Correct working position:
In front of the machine standing in the direction of cutting.
Workpiece handling:
Insure that the workpiece does not roll when cutting round
pieces.
Use suitable table extensions and supporting aids for difficult
to handle workpieces.
Never cut pieces that are too small.
Press the workpiece down against the table to avoid
ancontrollable lifting.
Remove the workpiece from the blade prior to turning the
scroll saw ON.
Feed the workpiece towards the sawblade in the direction of
the sawline, and cut as required by turning to follow the line
drawn.
Do not perform any operation freehand.
Attention:
Always observe the safety instructions and adhere to the
current regulations.
Ensure that the transparent sawguard is lowered to the
workpiece before you start sawing.
Do not reach under the scroll saw table when the motor is
running.
The condition of the sawblade should be checked before each
machining process.
Work only with a sharp and flawless sawblade.
