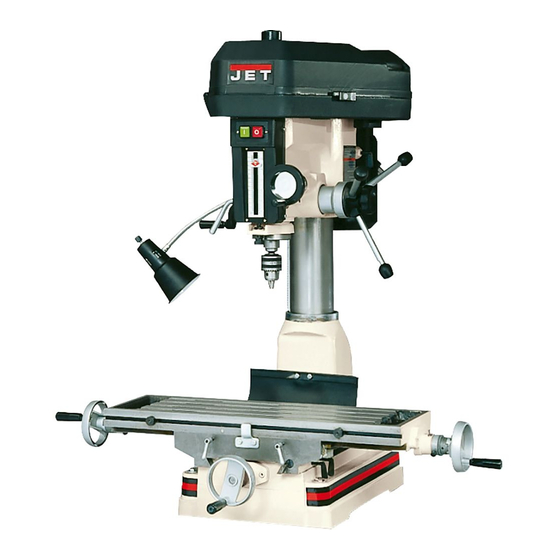

Jet JMD-15 Handbuch

GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been
prepared for the owner and operators of a JET JMD-15 / JMD-18 / JMD-18PF milling drilling center to promote safety during
installation, operation and maintenance procedures. Please read and understand the information contained in these operating
instructions and the accompanying documents. To obtain maximum life and efficiency from your machine, and to use the
machine safely, read this manual thoroughly and follow instructions carefully.
...Table of Contents
1. Declaration of conformity
2. Warranty
3. Safety
Authorized use
General safety notes
Remaining hazards
4. Machine specifications
Technical data
Noise emission
Contents of delivery
5. Transport and start up
Transport and installation
Assembly
Mains connection
Initial lubrication
Starting operation
6. Machine operation
Controls
Spindle speed selection
7. Setup and adjustments
Changing spindle speeds
Arbor replacement
Adjusting the depth stop
Engaging the fine feed wheel
Engaging the power down feed
Return spring adjustment
8. Maintenance and inspection
Weekly lubrication
Daily lubrication
Slide adjustments
Lead screw nut adjustment
9. Trouble shooting
10. Environmental protection
11. Available accessories
1. Declaration of conformity
On our own responsibility we hereby
declare that this product complies with
the regulations* listed on page 2.
Designed in consideration with the
standards**.
2. Warranty
The Seller guarantees that the supplied
product is free from material defects
and manufacturing faults. This
warranty does not cover any defects
which are caused, either directly or
indirectly, by incorrect use,
carelessness, accidental damage,
repair, inadequate maintenance or
cleaning and normal wear and tear.
Guarantee and/or warranty claims
must be made within twelve months
from the date of purchase (date of
invoice). Any further claims shall be
excluded.
This warranty includes all guarantee
obligations of the Seller and replaces
all previous declarations and
agreements concerning warranties.
The warranty period is valid for eight
hours of daily use. If this is exceeded,
the warranty period shall be reduced in
proportion to the excess use, but to no
less than three months.
Returning rejected goods requires the
prior express consent of the Seller and
is at the Buyer's risk and expense.
Further warranty details can be found
in the General Terms and Conditions
(GTC). The GTC can be viewed at
www.jettools.com or can be sent by
post upon request.
The Seller reserves the right to make
changes to the product and
accessories at any time.
3
3. Safety
3.1 Authorized use
This milling drilling center is designed
for milling and drilling machinable
metal and plastic materials only.
Machining of other materials is not
permitted and may be carried out in
specific cases only after consulting with
the manufacturer.
Never cut magnesium-
high danger to fire!
The proper use also includes
compliance with the operating and
maintenance instructions given in this
manual.
The machine must be operated only by
persons familiar with its operation and
maintenance and who are familiar with
its hazards.
The required minimum age must be
observed.
The machine must only be used in a
technically perfect condition.
When working on the machine, all
safety mechanisms and covers must
be mounted.
In addition to the safety requirements
contained in these operating
instructions and your country's
applicable regulations, you should
observe the generally recognized
technical rules concerning the
operation of metalworking machines.
Any other use exceeds authorization.
In the event of unauthorized use of the
machine, the manufacturer renounces
all liability and the responsibility is
transferred exclusively to the operator.
