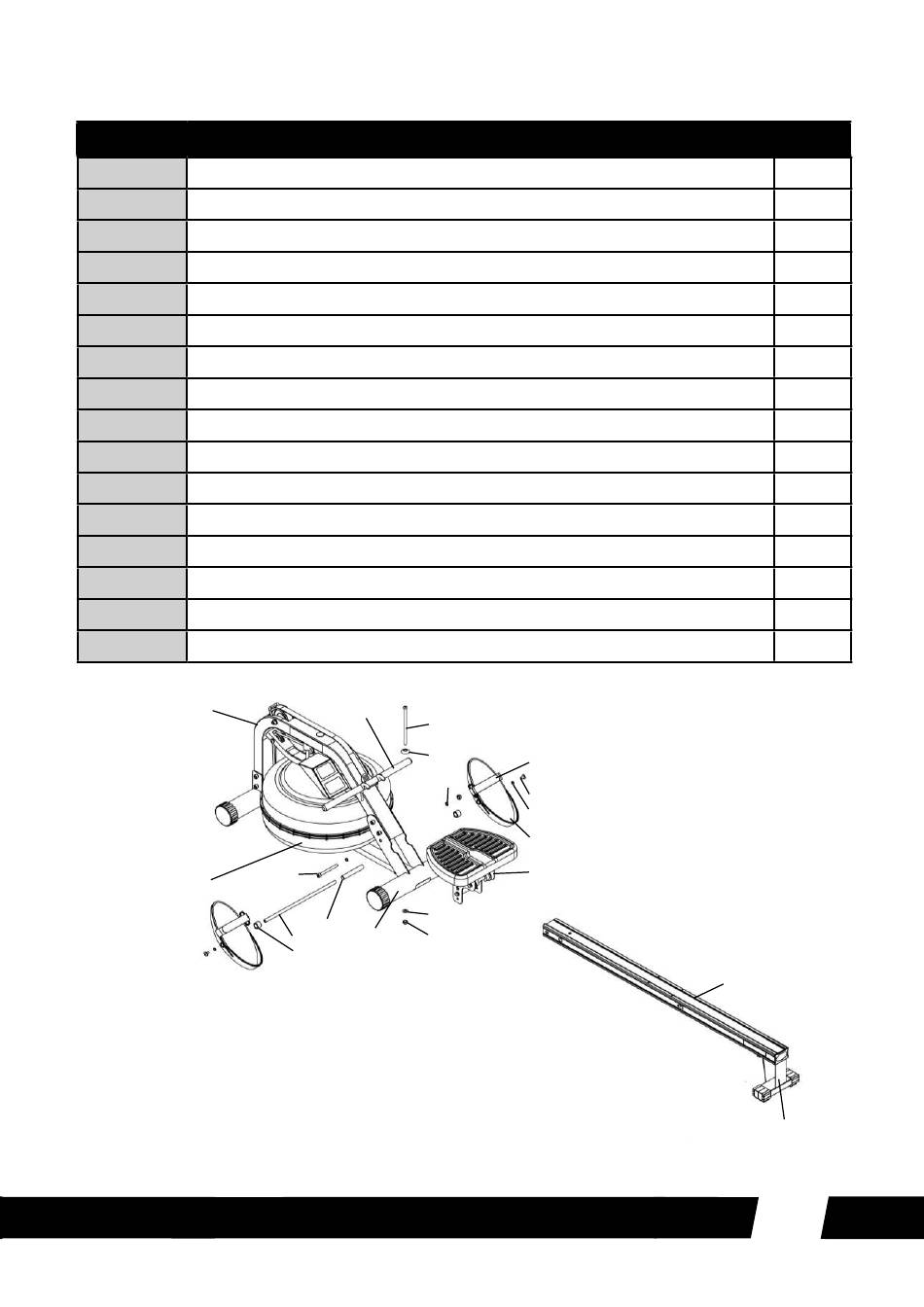

Teileliste: Upper Frame Assembly

Nr. Bezeichnung (ENG)
10041 Nyloc Nut M10
10082 Washer M10x21x2
10139 Spring Washer M10
60135 Hex Head Bolt M10x95
60708 Washer M8x19x1.6
60806 Dome Head Bolt M10x180
60808 Dome Head Bolt M8x15
60809 Plastic Dome Cap 10mm
90901 Plastic Footplate - NEPAR/TTNAR
90902 Footplate Axle 12mmx388
90903 Footplate Spacer Nylon D25xD17x19L
90904 Internal Footplate Spacer 17mmx1.5Tx110L
90907 Velcro Foot Strap for NEPAR / TITAN
A049 Handle Complete
A368 Seat Rail Set Complete - Wave Rwoer
A1778 Non AR Tank Complete Assembly
Upper Frame Assembly
A1778
A049
60806
60809
10139
60135
10082
90904
90902 10041
Lower Frame
90903
Assembly
90907
60808
60708
90901
Seat Assembly
2
Anz.
2
1
2
1
2
1
2
1
2
1
2
1
2
1
1
1
A368
