Normal charging indicator
hen charging the battery, if the indicator light turns red, the battery is on the normal
harge; if the red indicator light blinks constantly, the battery capacity is too low, and is on
he trickling charge, and after the battery capacity reaches a certain level, it will switch to
he normal charge
Note: Trickling charge does not exceed 30 minutes, if the red indicator light blinks after 30
minutes, it means the charger can not charge battery, please check whether the battery
or the charger has been damaged
harging precautions:
I) The battery is not fully charged in factory, please charge before using it.
) Charge and discharge the battery for two or three times, the battery capacity will reach
the best condition. When the battery capacity is low, please charge or change the batte
) The battery lasts shortly even if it is fully charged, the battery is exhausted,
contact your local dealer to buy a new authentic battery.
ntenna
Short thick antenna is suitable for short-distance
will offer you a better communication effect. Wearing the radio in your waist will not mak
you feel uncomfortable
The communication range will be shortened in bad weather or among the trees, please
prepare in advance to avoid any inconvenience
02 1
please
communication, while long thin antenna
of your communication and security.

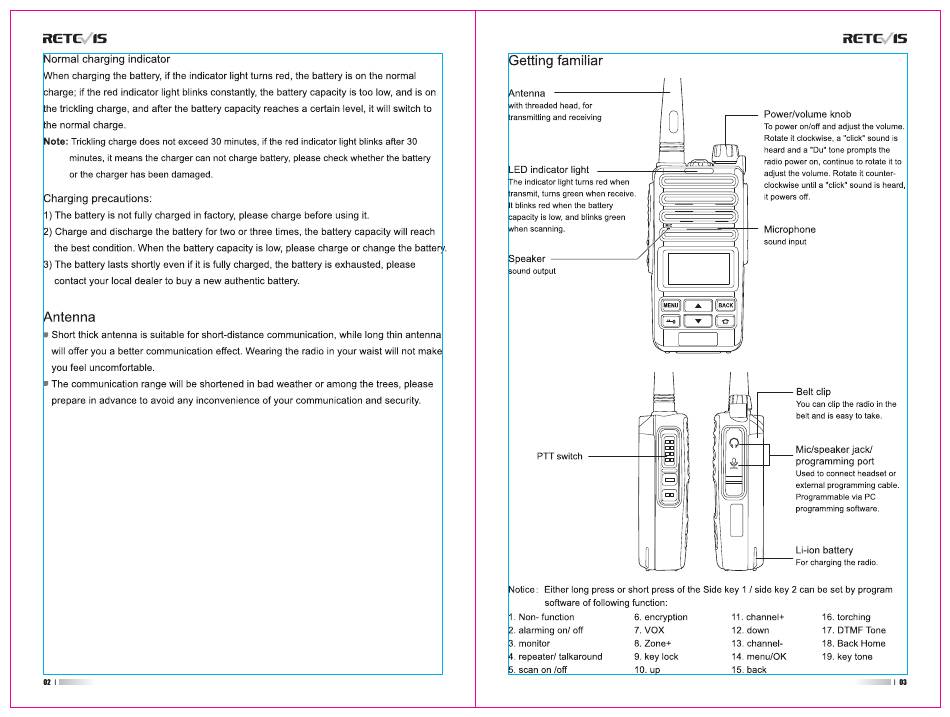

Getting familiar
ntenna
ith threaded head, for
ransmitting and receiving
LED indicator light
he indicator light turns red when
ransmit, turns green when receive.
It blinks red when the battery
pacity is low, and blinks green
hen scanning
peaker
und output
PTT switch
Notice: Either long press or short press of the Side key 1 / side key 2 can be set by program
software of following function:
6. encryption
1. Non- function
. alarming on/ off 7. vox
monitor 8. Zone+
repeater/ talkaround 9. key lock
. scan on loff 10. u
Power/volume knob
To power on/off and adjust the volume.
Rotate it clockwise, a "click" sound is
heard and a "Du" tone prompts the
radio power on, continue to rotate it to
adjust the volume. Rotate it counter-
clockwise until a "click" sound is heard,
it powers off.
Microphone
sound input
Belt clip
You can clip the radio in the
belt and is easy to take.
Mic/speaker jack/
programming port
Used to connect headset or
external programming cable.
Programmable via PC
programming software.
Li-ion battery
For charging the radio
16. torching
11 channel+
12. down 17 DTMF Tone
13. channel- 18. Back Home
14. menu/OK 19. key tone
15. back
