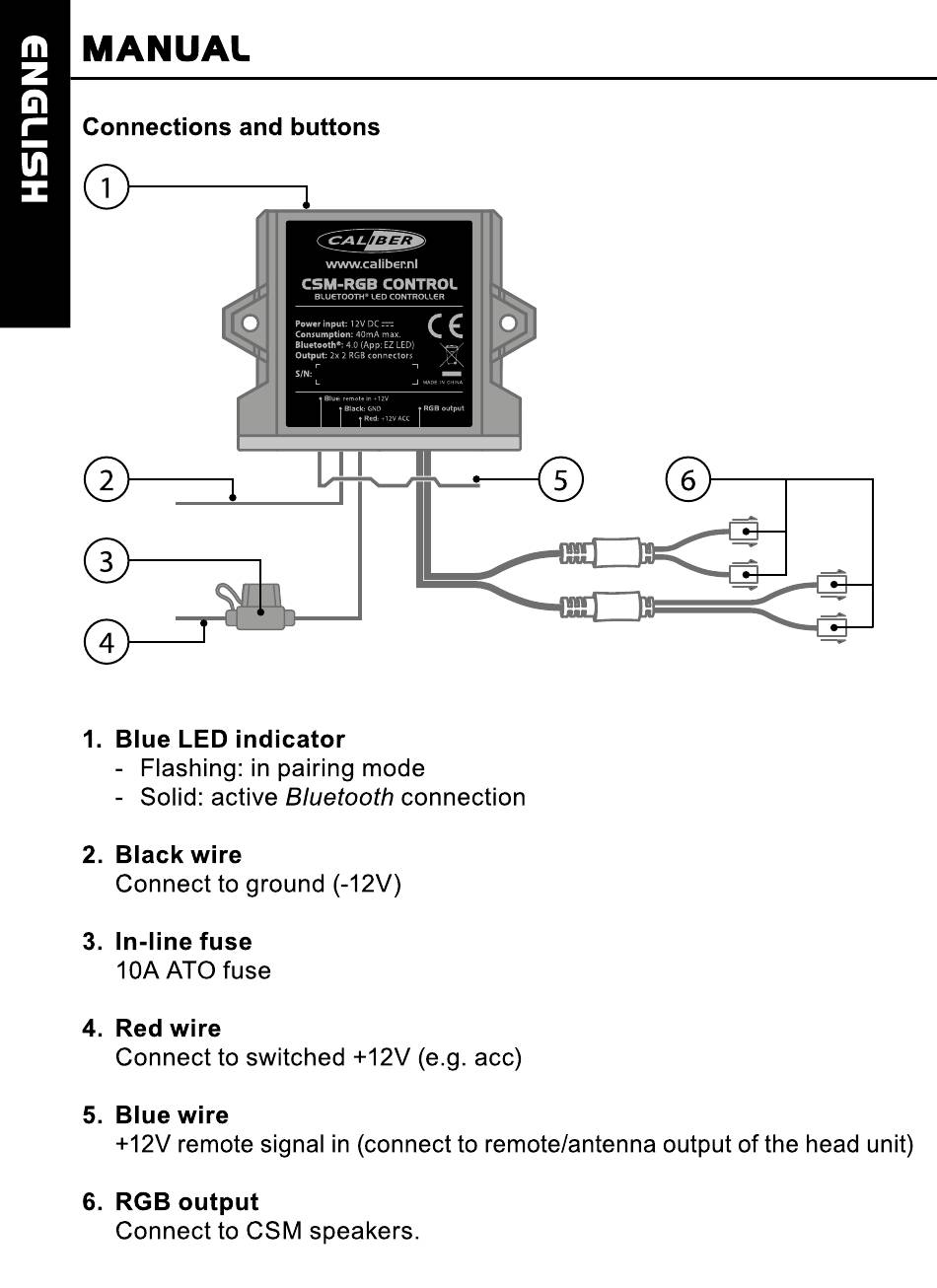

Connections and buttons
2
3
4
Blue LED indicator
- Flashing: in pairing mode
- Solid: active
2. Black wire
Connect to ground (-12V)
3. In-line fuse
IOA ATO fuse
4. Red wire
Connect to switched +12V (e.g. acc)
5. Blue wire
+12V remote signal in (connect to remote/antenna output of the head unit)
6. RGB output
Connect to CSM speakers.
CSM-RGe CONTROL
Bluetooth connection
