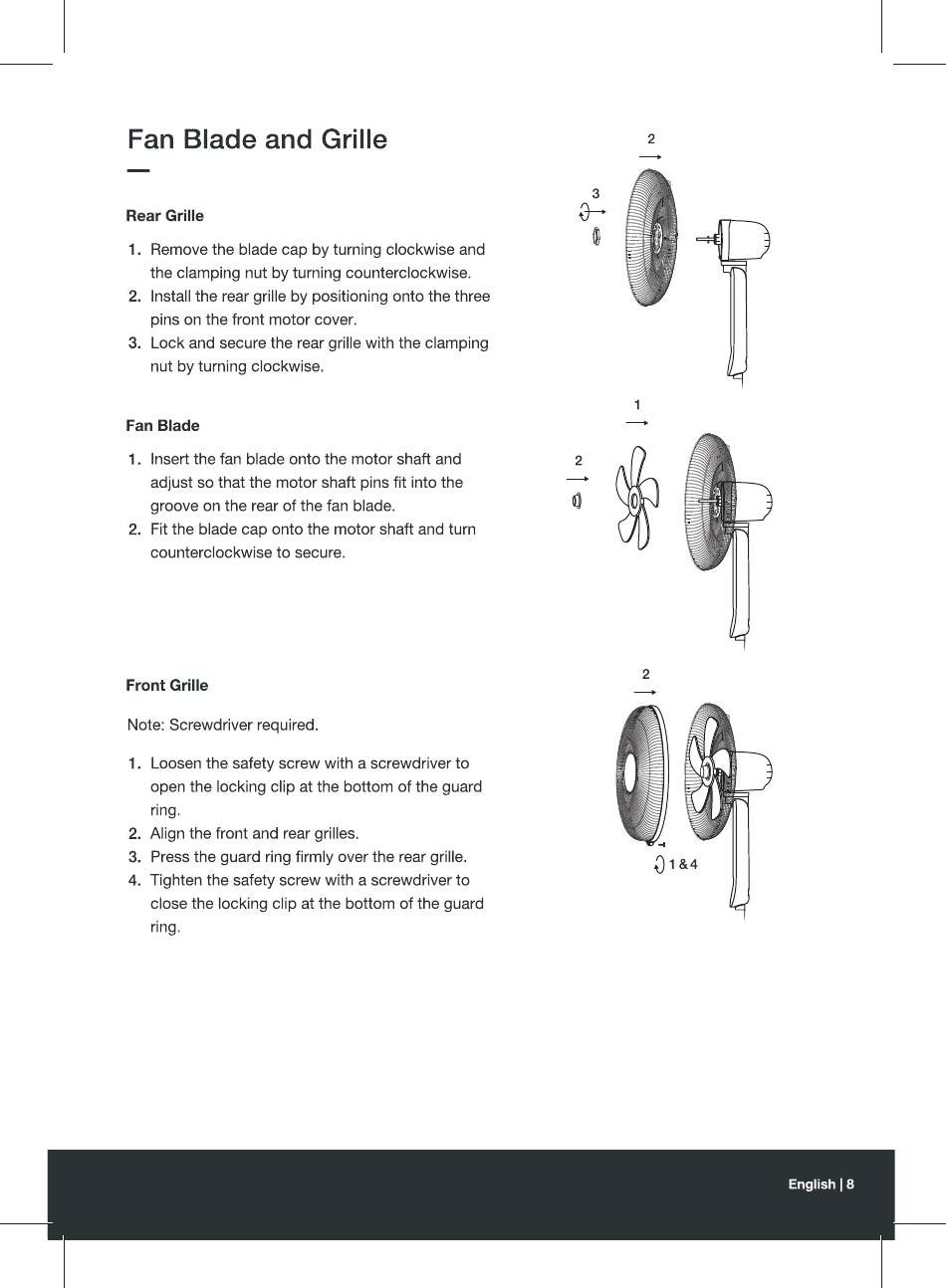

Fan Blade and
Rear Grille
1. Remove the blade cap by turning
the clamping nut by turning counterclockwise.
2. Install the rear grille by positioning
pins on the front motor cover.
3. Lock and secure the rear grille with the clamping
nut by turning clockwise.
Fan Blade
I. Insert the fan blade onto
adjust so that the motor shaft pins fit into the
groove on the rear of the fan blade.
2. Fit the blade cap onto the motor shaft and turn
counterclockwise to secure.
Front Grille
Note: Screwdriver required
Loosen the safety screw with a screwdriver to
I.
open the locking clip at the bottom of the guard
ring
Align the front and rear grilles
2.
Press the guard ring firmly over the rear grille.
3.
Tighten the safety screw with a screwdriver to
4.
close the locking clip at the bottom of the guard
ring
Grille
clockwise and
onto the three
the motor shaft and
2
3
2
2
01&4
English 8
