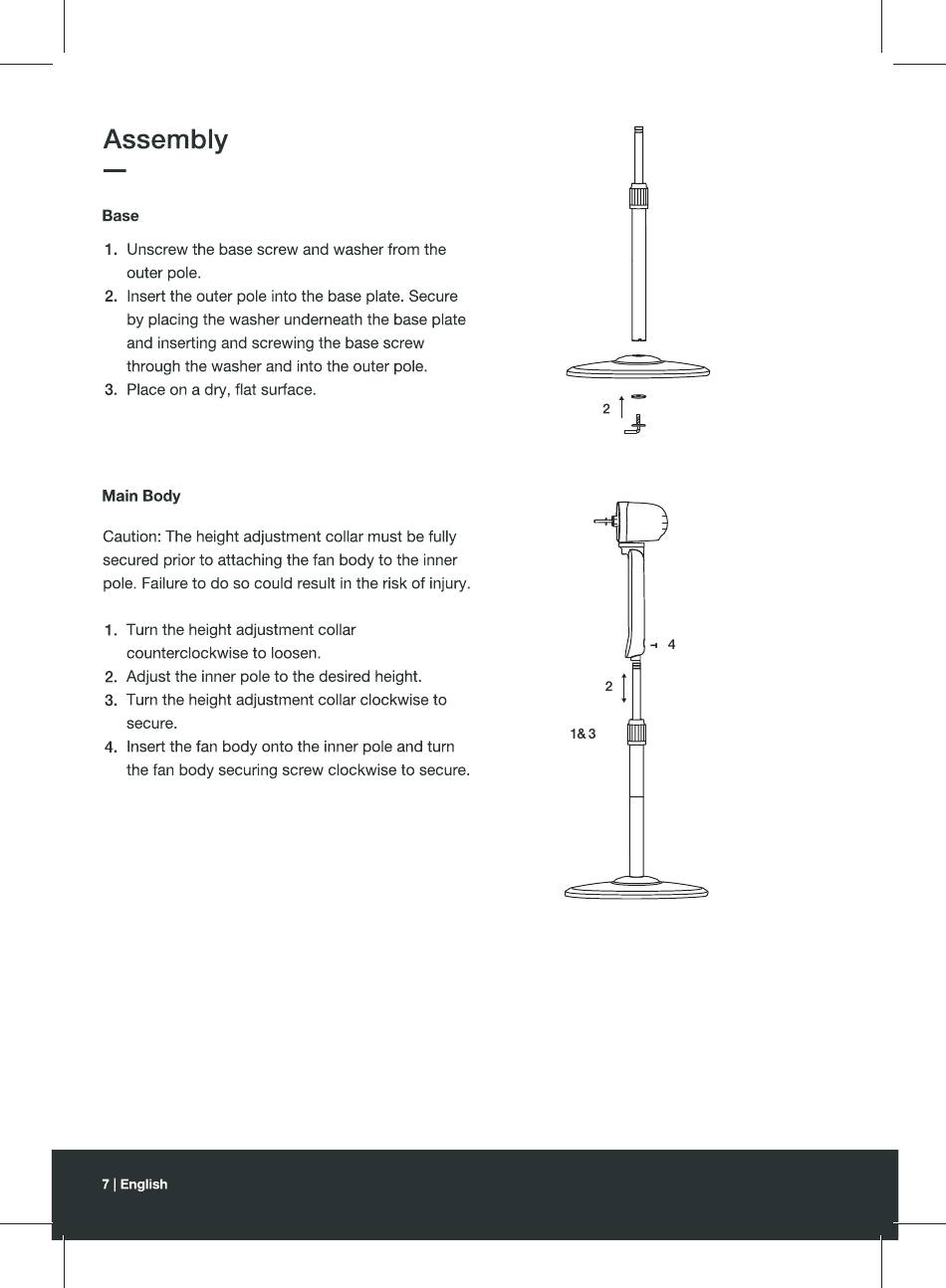

Assembly

Base
1. Unscrew the base screw
outer pole.
2. Insert the outer pole into the base plate. Secure
by placing the washer underneath
and inserting and screwing
through the washer and into the outer pole.
3. Place on a dry, flat surface.
Main Body
Caution: The height adjustment collar must be fully
secured prior to attaching the fan body to the inner
pole. Failure to do so could result in the risk of injury.
1. Turn the height adjustment collar
counterclockwise to loosen
2. Adjust the inner pole to the desired height.
3. Turn the height adjustment collar clockwise to
secure.
4. Insert the fan body onto the inner pole and turn
the fan body securing screw clockwise to secure.
7 | English
and washer from the
the base plate
the base screw
