Configuration examples stereo mode
Configuration notes stereo mode:
Mode
Stereo
(2-channel)
Attention: The crossover frequencies for the high- and lowpass must be set in the preconnected DSP /
DSP amplifier.

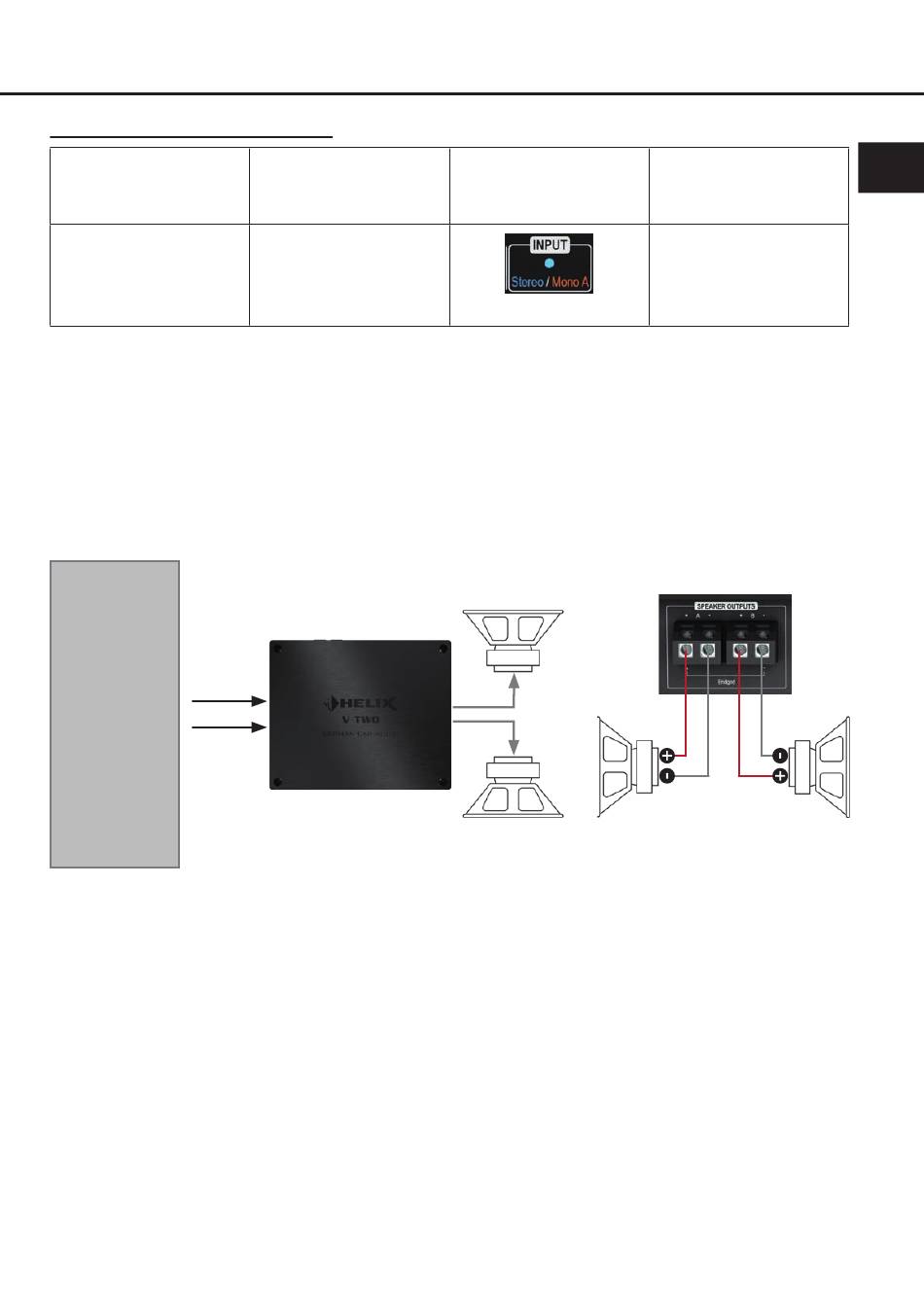

Example 1: 2-channel woofer application
Two woofers or two subwoofers with single voice coil
DSP / DSP
amplifier via
RCA / Cinch
A
or
B
HELIX V series
amplifier via
V-AMP Link
Amplifier input
Line Input A & B
or
V-AMP LINK A & B
Input mode
(Input)
LED: Blue
Woofer
or
subwoofer L
A
B
Woofer Subwoofer R
or
! Min. Impedance per speaker 2 Ω !
subwoofer R
Min. impedance
per speaker
2 Ω
Subwoofer L
