Operating Manual Spray Valve Controller VC 1200

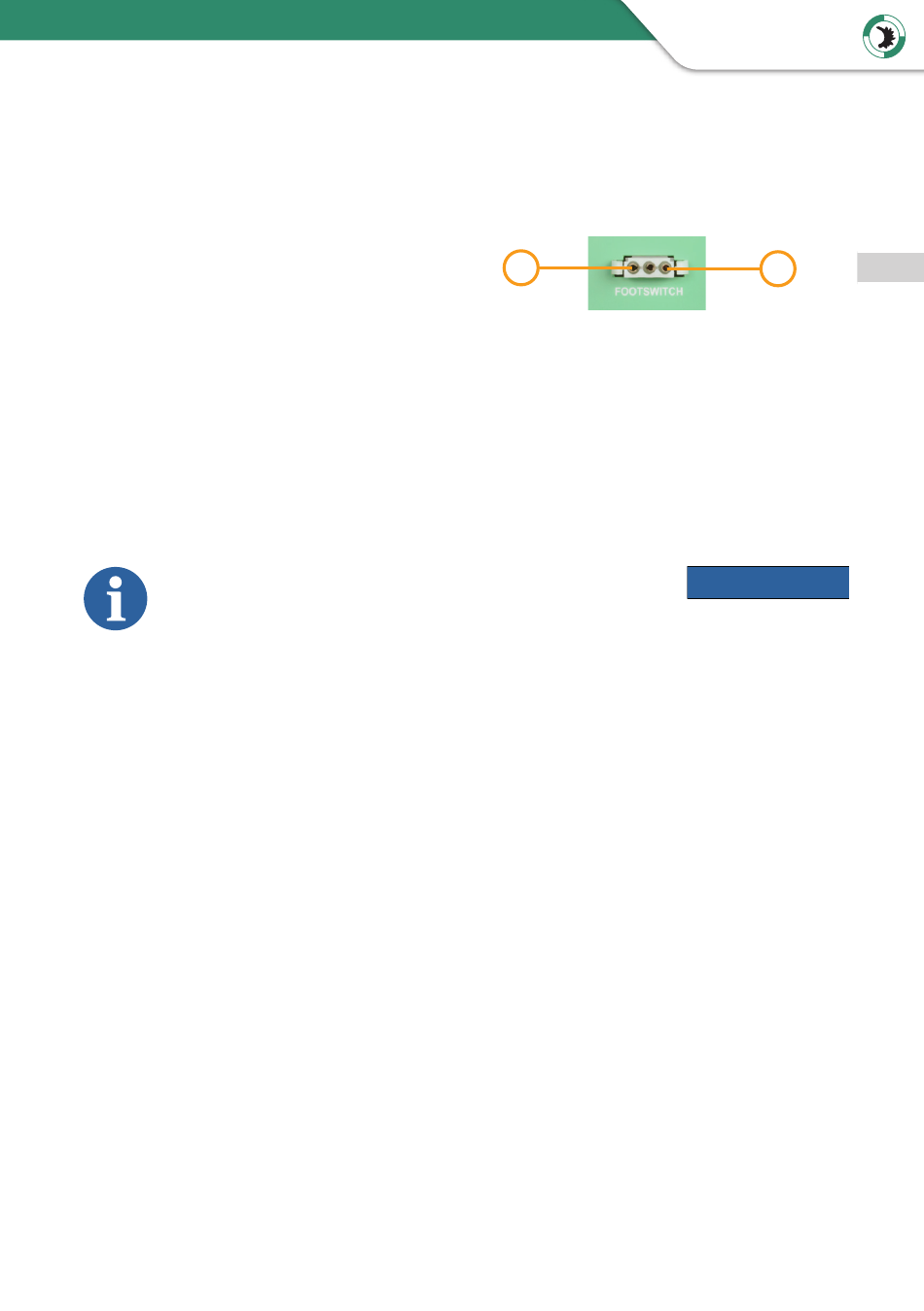

11.2 Foot switch:
Assignment: Closing contact between pin 1 + 3 starts the dispensing process
The footswitch input signal is activated when the input pin (1) is short-circuited to the
GND pin (3)
Do NOT apply an external supply voltage to these pins!
This can lead to a defect and damage to the device.
3
1 3,3 V
2 PE
3 GND
