Operating Manual Spray Valve Controller VC 1200

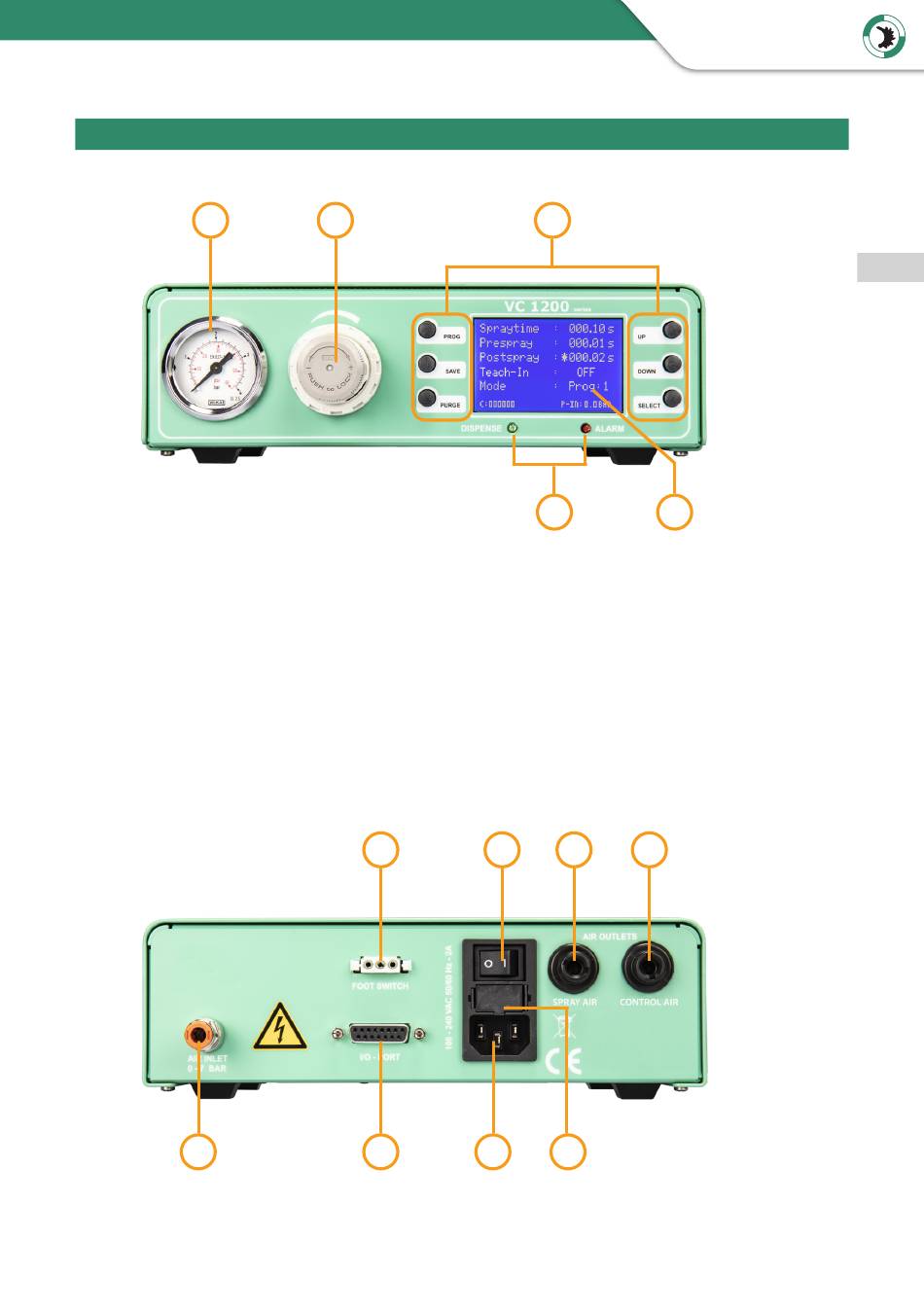

3 About your valve controller
1
1 Pressure gauge for compressed
spray air
2 Pressure regulator for spray air
3 Operating buttons
4 Display
5 Status LEDs
13
2
6 Plug for foot switch
7 Power switch
8 Pulsed spray air (regulated)
9 Pulsed control air (unregulated)
10 Fuse 2A T
11 Power inlet
12 I/O-Port
13 Compressed air inlet
6
7
12
11
25
VIEWEG
3
5
4
8
9
10
