Operating Manual Spray Valve Controller VC 1200
5 Operating controls

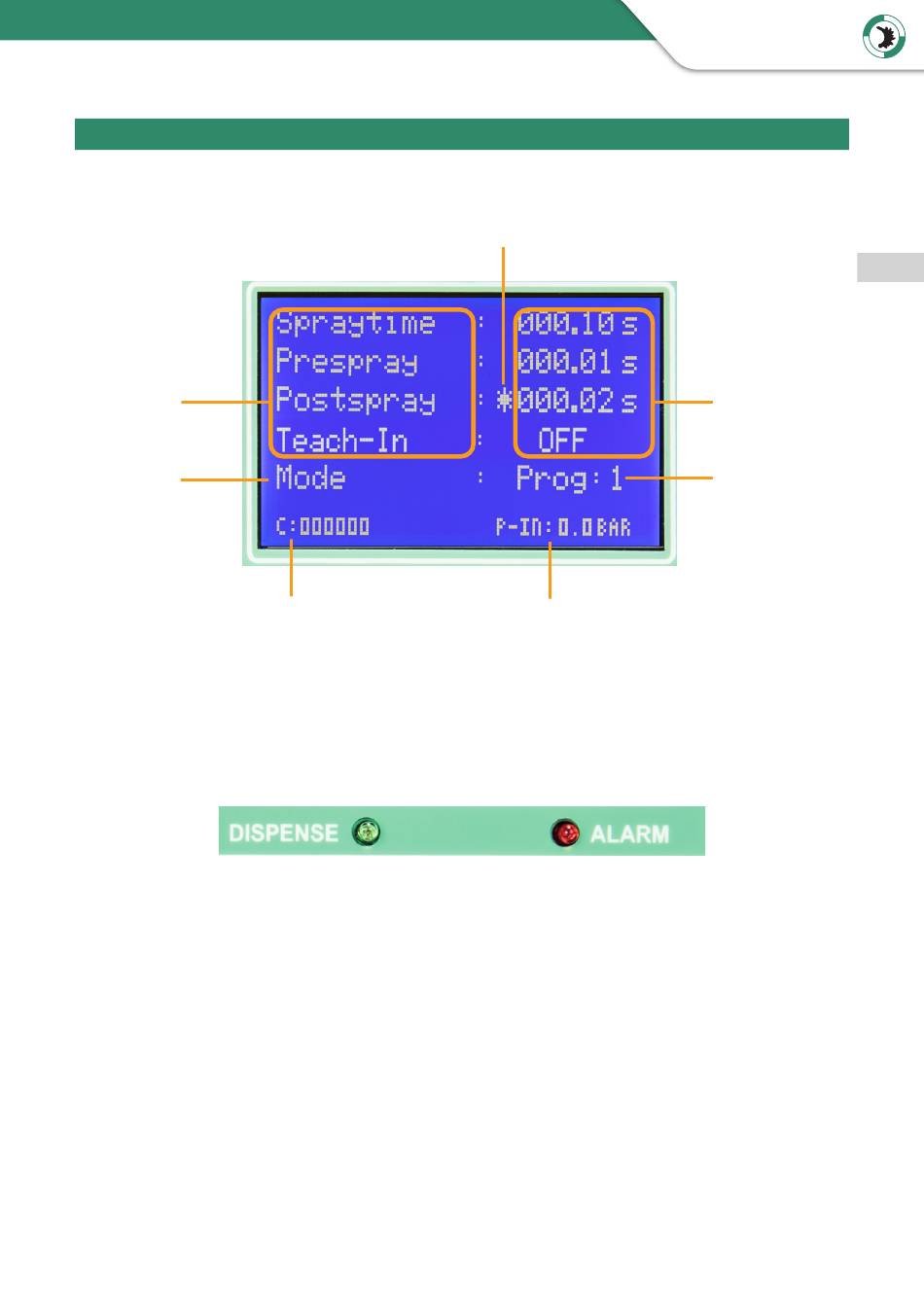

5.1 Standardanzeige
adjustable
parameters
operating
mode
5.2 Status LEDs
The Status-LEDs are located below the graphic display
DISPENSE
ALARM
cycle
counter
The DISPENSE LED lights up while the dispensing process
is activated
The ALARM LED lights up, when one of this happens:
• Air pressure Alarm is active
• External Alarm signal transmitted by I/O-Port
marker
inlet pressure
indicator
27
VIEWEG
EN
entered
values
program 1 - 7
or Manual
