LEGRAND Wattstopper PLUS Lite Installationsanleitung

No: 33699 – 06/25 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo: EN-SSU-LITE
Country of Origin: Made in Taiwan • Pays d'origine: Fabriqué en Taïwan • País de origen: Hecho en Taiwán • Herkunftsland: Taiwan
DESCRIPTION
The System Support Unit, Lite (SSU-LITE) is a key component
in the Wattstopper PLUS System. It hosts the Polaris software,
giving Facility Managers and Building Operators the ability to
monitor and maintain their Wattstopper PLUS system. It enables
them to change or modify light settings, schedules and other
system settings. The maximum system size supported by
SSU-LITE is 1000 devices, or 2000 nodes. For larger systems
with more devices, use the Wattstopper PLUS System Support
Unit (EN-SSU-X).
This symbol indicates DC voltage.
When using electrical equipment, basic safety precautions should always be followed, including the following:
• Do not mount near gas or electric heaters or let power supply cords touch hot surfaces.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.
• The use of accessory equipment is not recommended by Legrand as it may cause an unsafe condition.
• All DALI channels are internally connected together to the control unit. Make sure to consider this when installing.
• Do not use this equipment for other than the intended use.

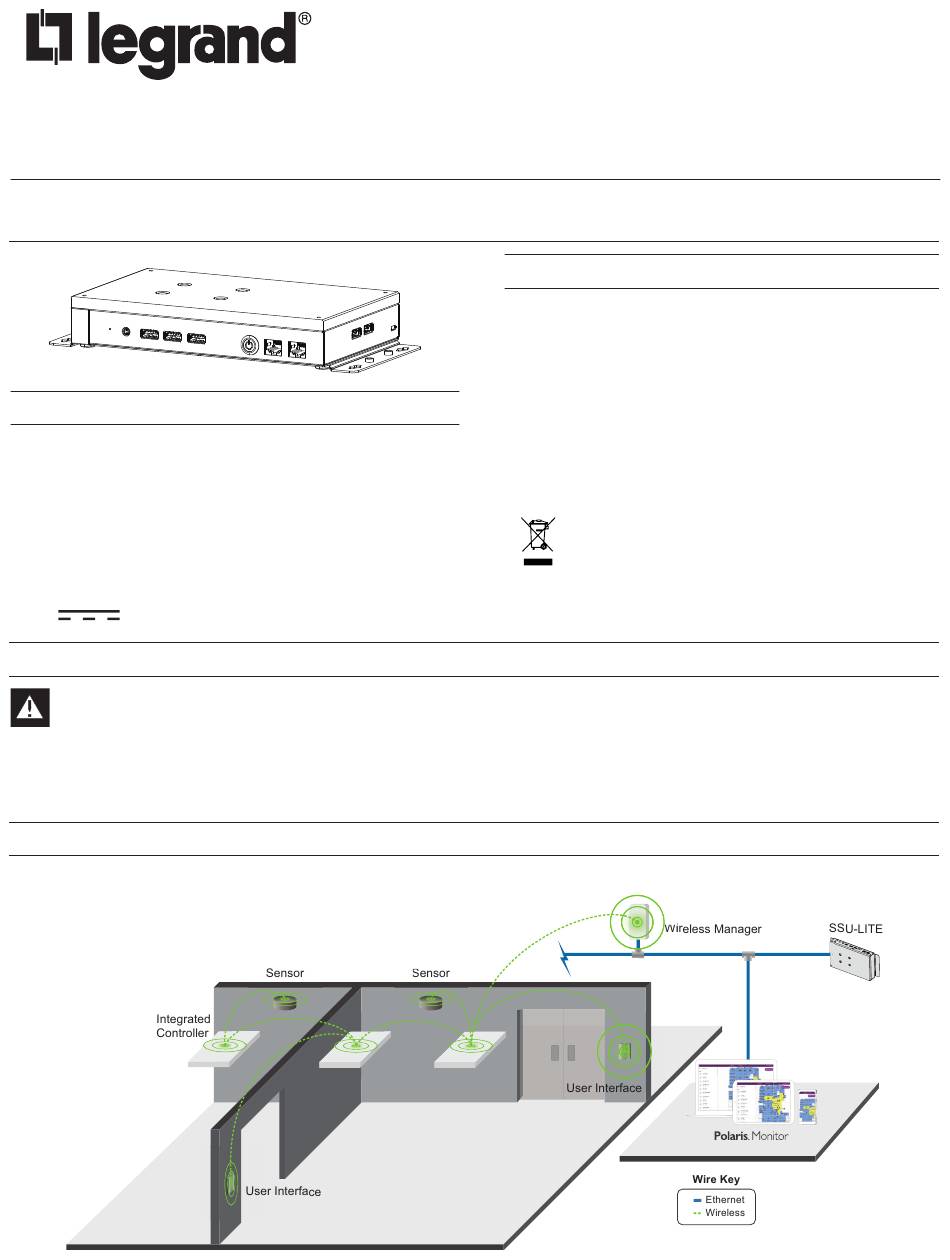

This illustration shows how each component is easily integrated into the Wattstopper PLUS System.
Wattstopper
System Support Unit, Lite
Unité de Soutien du Système, Lite
Unidad de Soporte del Sistema, Lite
System Support Unit, Lite
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Installationsanleitung
PRODUCT SAFETY
WIRELESS SYSTEM OVERVIEW
PLUS
®
SPECIFICATIONS
Voltage ......................................................................... 19 / 19.5VDC
Power Adapter Voltage ................................. 100-240VAC, 50/60Hz
Power Consumption ...........................................65W Power Adapter
Power Supply .... 1 x AC Power Cable, 1 x AC Power Adapter, Included
Operating Temperature ................................32° to 95°F (0° to 35°C)
Relative Humidity ..................................0% to 95%, non-condensing
Certifications:
UL 62368-1
CE
FCC Part 15, Class B
CAN/CSA-C22.2 No. 62368-1
This product bears the selective sorting symbol for Waste electrical
and electronic equipment (WEEE). This means that this product must
be handled pursuant to European directive 2012/19/EU in order to be
recycled or dismantled to minimize its impact on the environment. User
has the choice to give his product to a competent recycling organization or to the
retailer when he buys a new electrical or electronic equipment.
