Manual planes/inclined planes: while the
switch is OFF, by pressing LASER key for 3
sec. the laser enters into inclined planes
mode (the diode by the button is on) - with
the pendulum locked the laser line will blink
every 5 seconds to remind the user that
planes have no auto-levelling.
Subsequent pressing the LASER key will
switch on additional vertical beams (V1 and V2). The sequence ends with the laser
turning OFF.

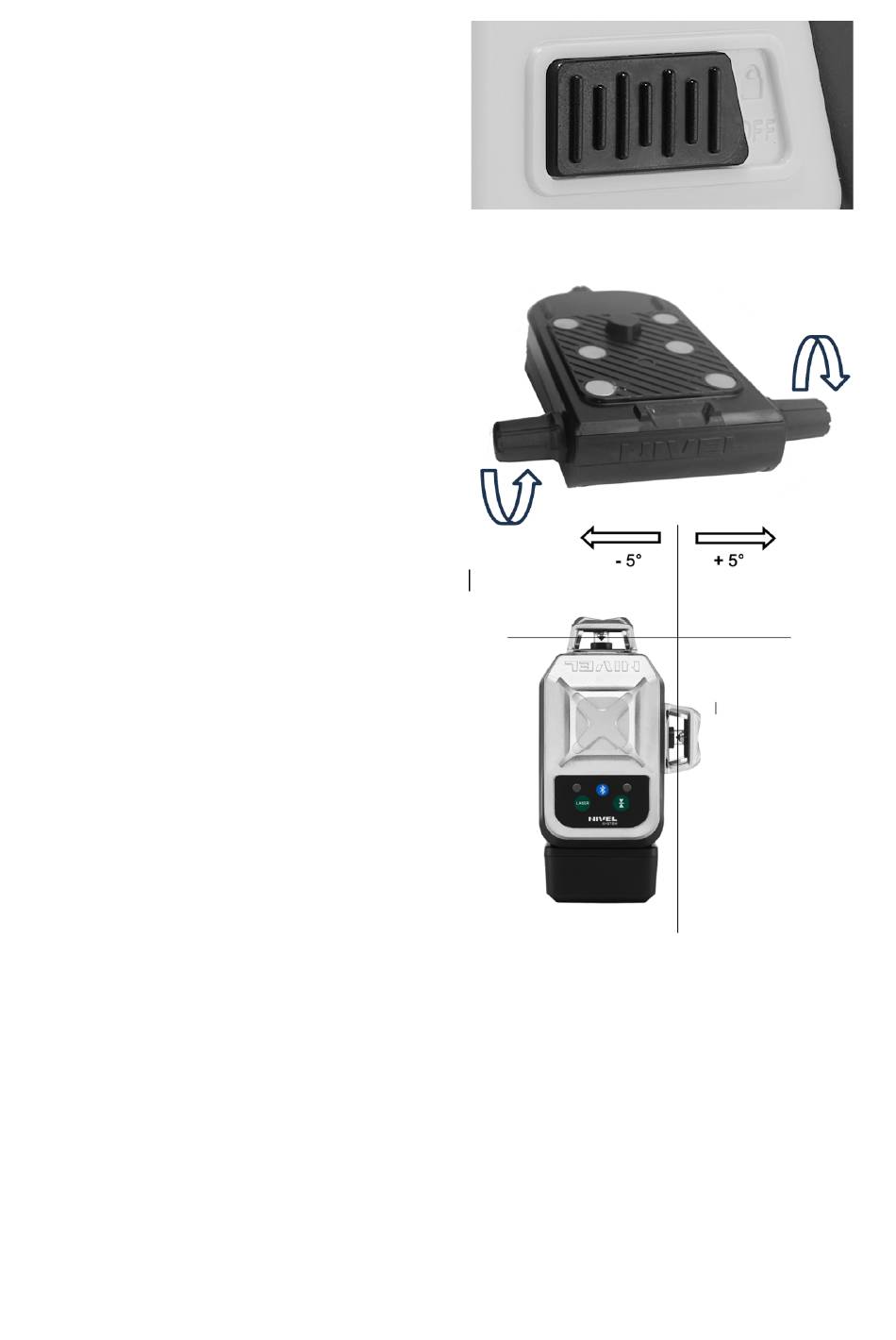

AD-CLx Centering Adapter
The adapter is used to precisely align the
vertical laser beams (V1, V2). The adapter
connects to the laser with magnets and it
can be easily detached.
NOTE
- make sure that there is no dirt on the
connection of the laser to the adapter, as
this can weaken the magnets' grip,
which in turn can lead to a damage of the
device (e.g. due to a fall).
The knobs on the left/right sides of the
adapter allow to rotate the laser left / right
by up to 5° without changing the position of
the intersection point of the vertical beams
V1 and V2.
The knob on the back of the adapter allows
to move the laser forward / backwards.
There are 1/4" and 5/8" threads on the
bottom of the adapter base, so it can be
easily mounted on any type of tripod.
Battery
This device uses a Li-ion rechargeable
battery that comes with the unit. The LED
battery indicator presents the battery charging level. Slide the battery upwards to take
it out, check the battery charging status by pressing the button located on the back
side of the battery.
