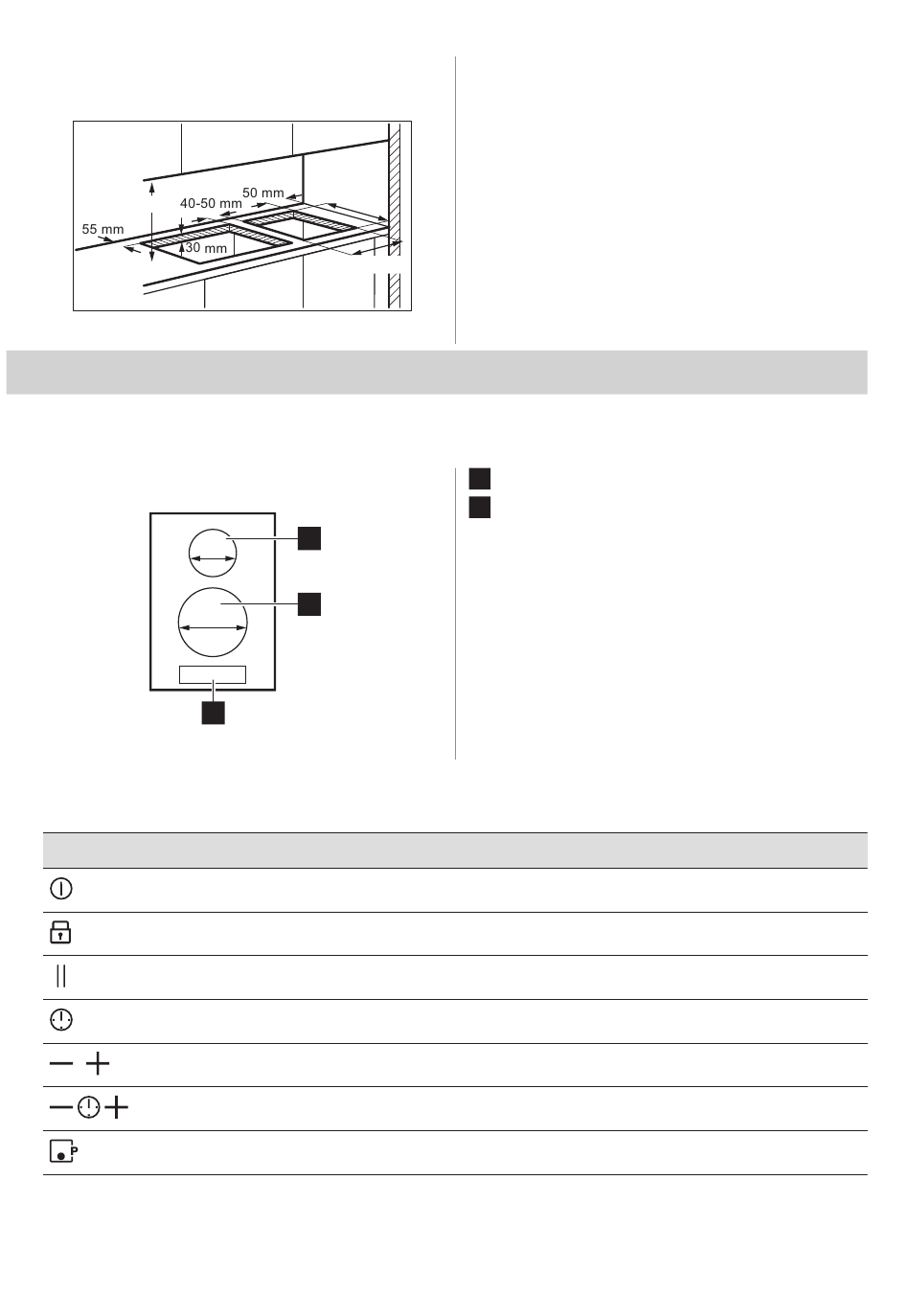

3.5 Installation of more than one
hob
min. 500 mm
4. PRODUCT DESCRIPTION
4.1 Cooking surface layout
145 mm
210 mm
2
4.2 Symbols on the control panel and the display
Symbol Description
To activate and deactivate the hob.
To lock / unlock the control panel.
Pause. To set all cooking zones that operate to the lowest heat setting.
To select the cooking zone.
To set a heat setting.
/
To increase or decrease the time.
PowerBoost. To activate and deactivate the maximum heat setting.
3.6 Connection cable
• The hob is supplied with a connection
• To replace the damaged mains cable, use
2
+
490 mm
0
+ 2
270 mm
0
1
2
1
1
cable.
the cable type: H05V2V2-F which
withstands a temperature of 90 °C or
higher. Contact an Authorised Service
Centre. The connection cable may only be
replaced by a qualified electrician.
Induction cooking zone
Control panel
